MQV-UB crossover connector

Name: MQV-UB crossover connector
Brand: Hilti
SKU: r3141

New product

Item #r3141

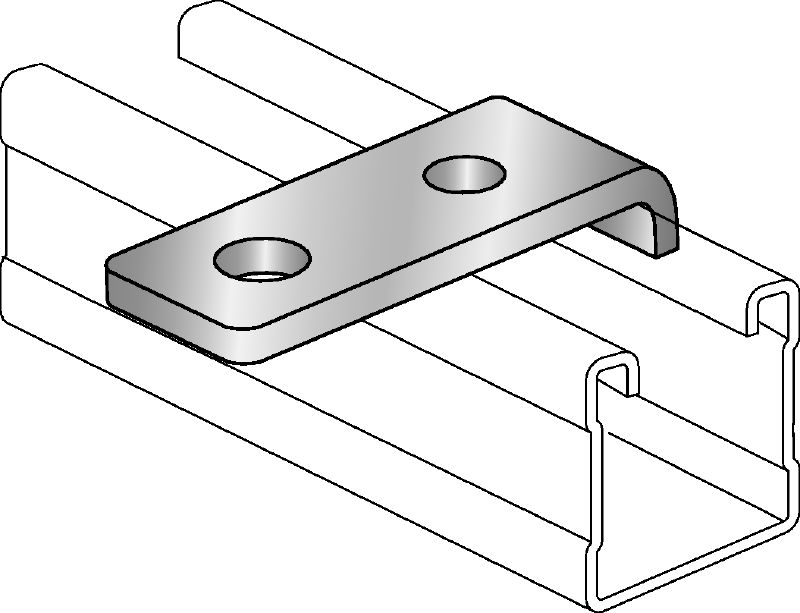

Crossover connector to be used with the MQ system in combination with U-bolts

Weight: 0.07 kg
Material composition: DD11 MOD - HN 547, S235JR - DIN EN 10025
Surface finish: HDG: 55 µm - DIN EN ISO 1461

More technical data

Features

More reliable fastening system for U-bolts
Easier to install and highly adjustable

Applications

Modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
Provides easy-to-install, adjustable, flexible solutions for industrial and heavy commercial applications, eliminating the need for welding

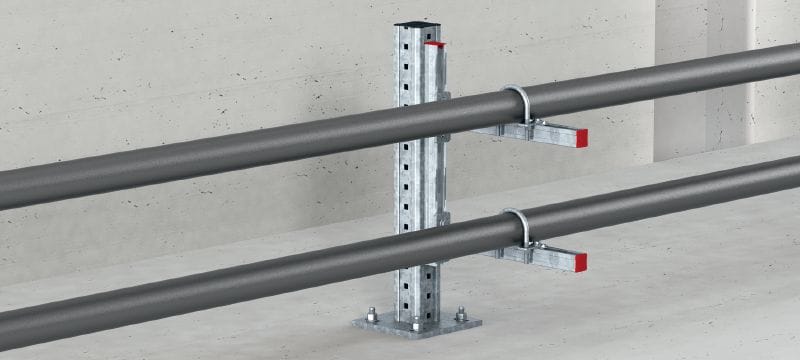

Fastening with U-bolts, for uninsulated pipes
Fastening with U-bolts

Product Variants & Sets

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

Connector MQV-UB-M12

- PDF Instruction for use MQV-UB-M13, Chinese (traditional), Italian, German, Russia, Swedish, Turkish, Ukrainian, French, Arabic, Portuguese, Sardinian, Spanish, Malay, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 318.4 kB ]
