X-P MX Universal nails

Configurator
Technical Data
Documents
Features & Applications
Related Products
Collated_nail_for_concrete_base_material_for_powder-actuated_tools
Powder actuated tool DX 5 MX, Building & Construction, kickerboard, wood to concrete
Powder_actuated_tool_DX_5_MX,_Building_&_Conctruction,_Formstop
Powder_actuated_tool_DX_5_MX,_Building_&_Construction,_wood_to_concrete
Powder_actuated_tool_DX_5_MX,_Interior_Finishig,_Drywall
DX_5_MX,_deflection_head,_track_fastening_to_ceiling,_interior_finishing,_X-U_concrete_nail

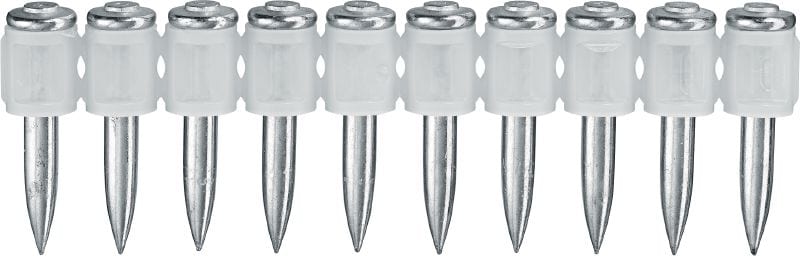

Collated nail for fastening to concrete and steel using powder-actuated nailers

  • Base materials: Concrete (soft), Concrete (tough), Masonry (solid limestone brick)
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanized zinc coated <20 µm
ultimate

Customers also searched for DX nails, concrete, steel or nail gun.

Choose options

Fastener shank length
  • 22 mm
  • 40 mm
  • 47 mm
  • 62 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 72.00 ILS

Technical Data

Base materials
Concrete (soft), Concrete (tough), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Washer size
8 mm
Point type
Long conical tip
Approvals
ICC-ES
For use with (tools)
DX 351, DX 5, DX 6
Product Class
Ultimate

Documents

Technical information
Operating Instruction
pdf X-P Data Sheet, English [ 2.1 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Designed for fastening on tough concrete (tested and approved for 8000 psi concrete, up to 25mm | 1&quot; embedment)
  • Long conical nail tip designed for best drivability in tough concrete
  • Highest hardness (59 HRC) for best penetration in tough concrete
  • Provides effective embedment depths of 20mm, 25mm, 31mm and 38mm (3/4&quot;, 1&quot;, 1 1/4&quot; and 1 1/2&quot;) when used with tracks up to 14 ga thick
  • Highest load performance on tough concrete

Applications

  • Fastening to soft or tough concrete
  • Fastening drywall track to concrete
  • Fastening wall ties
  • Fastening wood to concrete
  • Setting up formwork and safety barriers

For approval or certificate information, please see individual items.
