X-FS MX Formwork spacer

Form stop X-FS MX #408022

Configurator
Technical Data
Documents
Features & Applications
Related Products
X-FS Form stops, r4541
X-FS
33102.tif

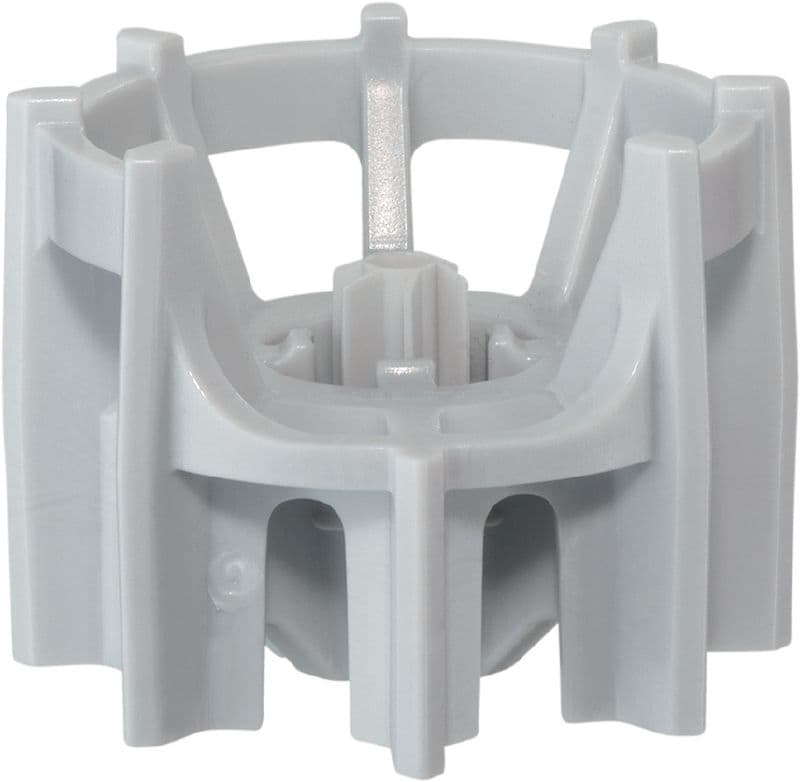

Forming spacer for positioning formwork on concrete footings

  • Dimensions (LxWxH): 49.3 x 49.3 x 32.2 mm
  • Material: High-density polyethylene (HDPE), Halogen-free, Silicone-free
  • Color: Light grey (RAL 7035)
premium

Choose options

Length
  • 49 mm
Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
540.00 ILS
5.40 ILS
/
1 each

Technical Data

Dimensions (LxWxH)
49.3 x 49.3 x 32.2 mm
Material
High-density polyethylene (HDPE), Halogen-free, Silicone-free
Color
Light grey (RAL 7035)
Application
Formwork
Base materials
Concrete
Minimum thickness of base material (concrete)
80 mm

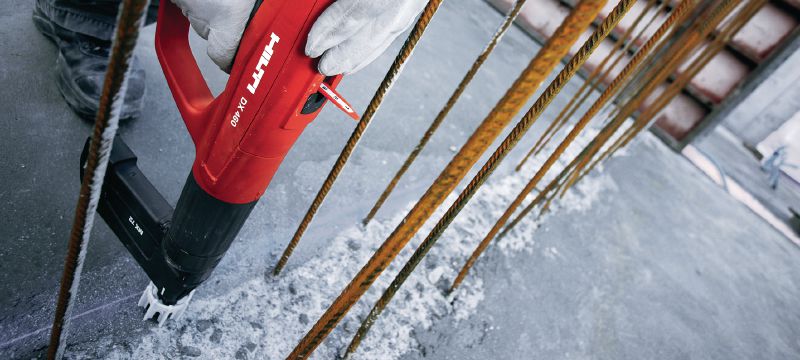

For use with (tools)
DX 460, DX 5, DX 6
Product Class
Premium

Documents

Technical information
Instruction for use
pdf X-FS Data Sheet, English [ 1.1 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]
pdf Scheda tecnica X-FS en, English [ 115.1 KB ]

Features & Applications

Features

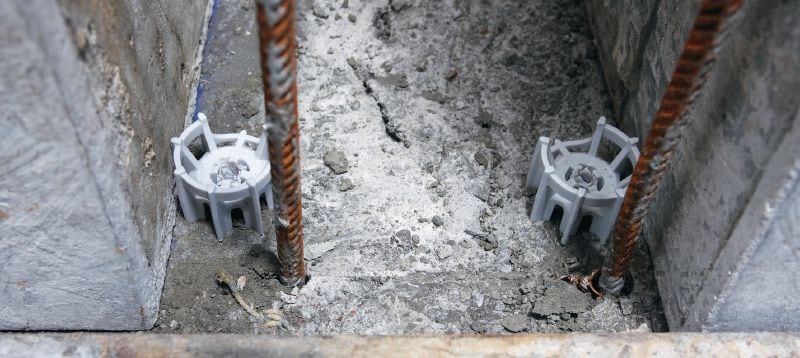

  • Facilitates quick and easy positioning of formwork panels on concrete footings
  • Designed for extremely high productivity – up to five times faster than traditional methods
  • Easy to install even on rough concrete surfaces
  • Good bond with the concrete due to large openings
  • Hardly visible or fully hidden in concrete after removing formwork

Applications

  • Positioning formwork on concrete footings
