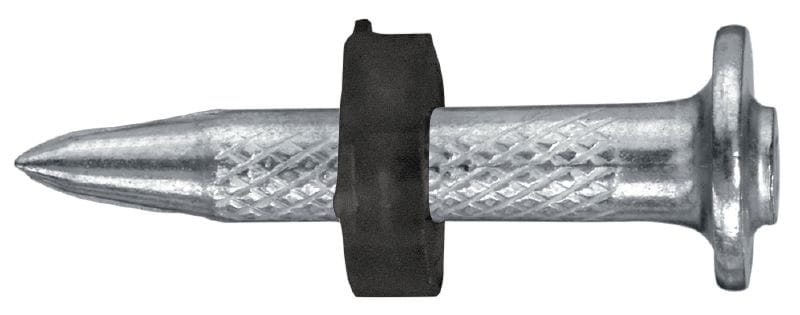

X-C P8 Masonry nails

Powder actuated tool DX 5 F8, Building & Construction, water membrane, File name: L090220_cropped.tif, r66753

Single nail for fastening to concrete using powder-actuated nailers

Base materials: Concrete (soft), Masonry (solid limestone brick)
Minimum thickness of base material (concrete): 80 mm
Corrosion protection: Galvanized zinc coated <20 µm

standard

Customers also searched for single nail for concrete, concrete nail, concrete fastener, powder-actuated fastener or single fastener.

Choose options

Fastener shank length

22 mm
27 mm
32 mm
37 mm
42 mm
47 mm
52 mm
62 mm
72 mm

Pack size

100 pc
1000 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 57.00 ILS

Technical Data

Base materials

Concrete (soft), Masonry (solid limestone brick)

Minimum thickness of base material (concrete)

80 mm

Corrosion protection

Galvanized zinc coated <20 µm

Environmental Conditions

Dry indoor

Material

Carbon steel

Fastener shank diameter

3.5 mm

Point type

Cut point

Approvals

ICC-ES

For use with (tools)

DX 2, DX 351, DX 5, DX 6

Product Class

Standard

Documents

Features & Applications

Features

Fastener for attaching a variety of thin materials to masonry block and concrete
Suitable for soft to medium-hard concrete (up to 45 N/mm² concrete strength)
Best suited for fastening to concrete with a hardness of up to 6,000 psi

Applications

Fastening drywall track to concrete
Attaching wire mesh and thin sheet metal to concrete, sand-lime block and solid brick
Fastening brick ties to masonry or concrete
Fastening HVAC duct strapping or suspended ceilings on normal-strength concrete
Securing electrical junction boxes, conduits and cables to masonry block or concrete

For approval or certificate information, please see individual items.
