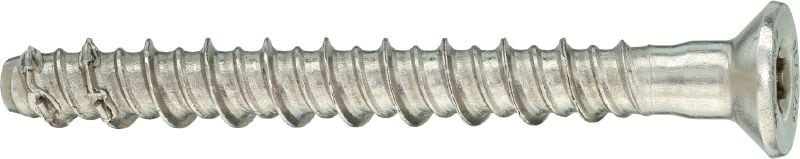

HUS-CR 8/10 Screw anchor

Screw anchor HUS-CR 6x40 5/- #2199091

L068902.tif
L069400.tiff
Stainless steel screw anchor for the fastening of handrails with nice head finish

Ultimate-performance screw anchor for quicker permanent fastening in concrete (A4 stainless steel, countersunk head)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Countersunk Torx
  • Bit size: T30

Choose options

Anchor size - D
  • 6 mm
Anchor length - L
  • 40 mm
Pack size
  • 50 pc
 Product options
Quantity
Pack
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Countersunk Torx
Bit size
T30
Drill bit diameter
6 mm
Approvals / Test reports
ETA, Fire, Seismic
Reusable (and removable)
Not Possible
PROFIS Software
Yes
Material composition
Steel, A4
Tested/approved for diamond drilling
No

Documents

pdf Operating Instruction HUS-CR 6, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1.1 MB ]

Features & Applications

Features

  • Higher productivity – less drilling and fewer working steps than with conventional anchors
  • Countersunk head – for a neater appearance when fastening through in-place parts
  • Can be set reliably without a torque wrench – HSE product profile available
  • Cutting edges are welded to the thread – helps to ensure correct setting even under critical conditions (high-strength concrete, used drill bits, rebar hits)
  • ETA approval – also for cracked concrete

Applications

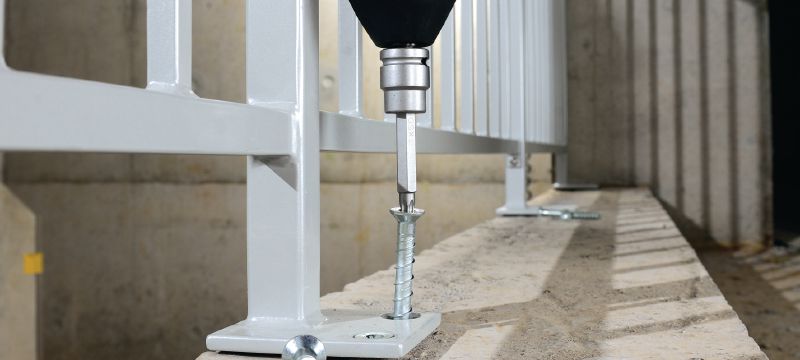

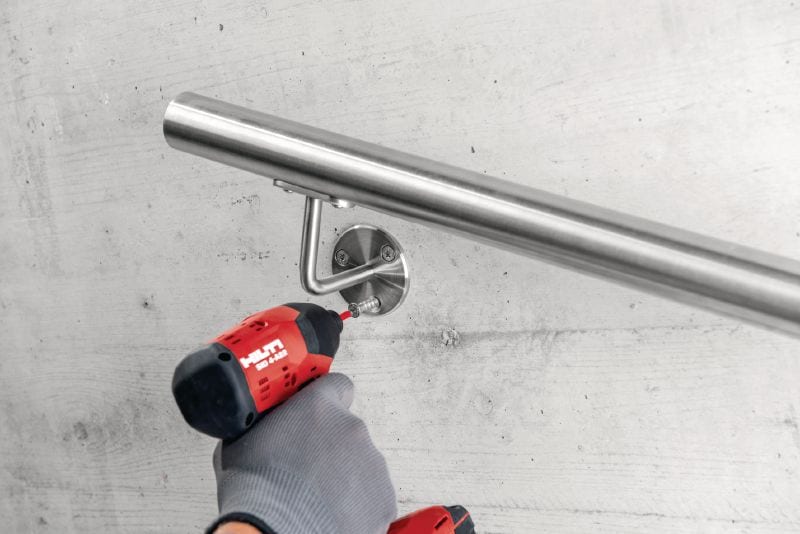

  • Railings and handrails
  • Stadium seating
  • Glazing
  • Anchoring façade panels
