HUS3-C 8/10 Screw anchor

HUS3 screw anchor. The solution for contractors.

HUS3 screw anchor. Adjustability without load drop.

HUS3_screw anchor. Performance in old concrete.

HUS3 screw anchor. The specifier's choice.

HUS3 screw anchor. Performance in rebar.

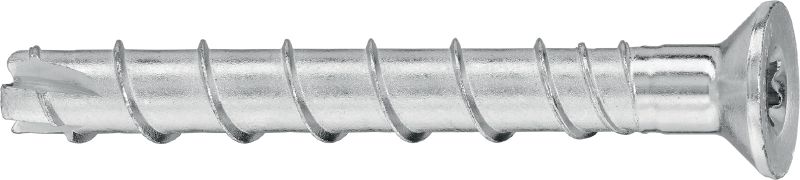

Ultimate-performance screw anchor for quicker permanent and temporary fastening in concrete (carbon steel, countersunk head)

Material, corrosion: Carbon steel, zinc-plated
Head configuration: Countersunk Torx
Approvals / Test reports: ETA, Fire, Seismic

Choose options

Anchor size - D

8 mm
10 mm

Anchor length - L

65 mm
70 mm
75 mm
85 mm
90 mm
100 mm

Pack size

50 pc

Product options

Quantity

Packs

Total Pieces

1

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 303.30 ILS

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Countersunk Torx

Approvals / Test reports

ETA, Fire, Seismic

Base materials

Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)

Reusable (and removable)

Yes

Cleaning procedures

Manual Cleaning

PROFIS Software

Yes

Material composition

Steel, zinc-plated (min. 5 µm)

Tested/approved for diamond drilling

No

Documents

Features & Applications

Features

Higher productivity – less drilling and fewer operations than with conventional anchors
Countersunk head for neat appearance when fastening through in-place parts
Can be reliably set without need for a torque wrench
Three embedment depths for maximum design flexibility
Adjustable screw: adjustability is included in the ETA approval

Applications

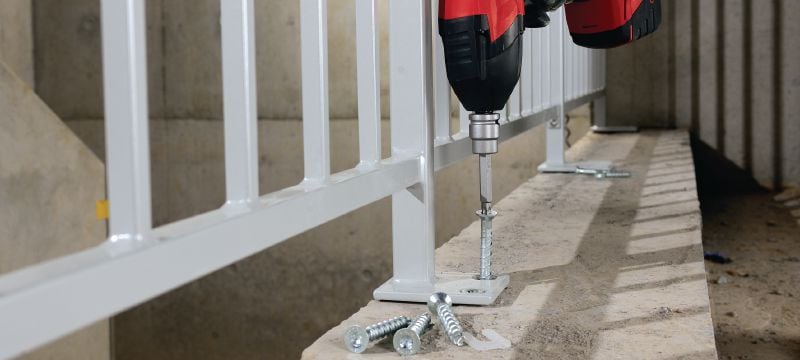

Railings and balustrades
Architectural metal
Glazing

For approval or certificate information, please see individual items.
