HUS4 T-C Screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products

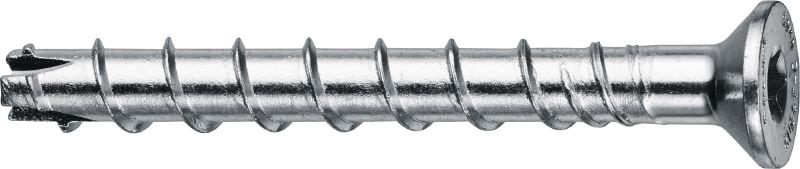

Still life picture of the screw anchor HUS4 T-C for installations in tough conditions.
Cropped application picture of the HUS4 screw anchor. Industry safety guard application.
Cropped application picture of the HUS4 screw anchor. Glass balustrade application.
Cropped application picture of the HUS4 screw anchor. Handrail on masonry application.
Cropped application image of the impact wrench SIW 6AT-22 and Adaptive Torque Module SI-AT-22 with HUS4 screw anchor.

High-performing countersunk head screw anchor for fastening to tough concrete (carbon steel)

  • Material, corrosion: Carbon steel, Zinc plated
  • Head configuration: Countersunk
  • Reusable (and removable): Yes

Choose options

Anchor size - D
  • 8 mm
  • 10 mm
Anchor length - L
  • 65 mm
  • 70 mm
  • 75 mm
  • 85 mm
  • 90 mm
  • 100 mm
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 303.30 ILS

Technical Data

Material, corrosion
Carbon steel, Zinc plated
Head configuration
Countersunk
Reusable (and removable)
Yes
PROFIS Software
Yes
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Approval document
Technical information
Sustainability Documentation
Operating Instruction
pdf ETA-20/0867 HUS4 screw anchor in concrete , English, German [ 33.9 MB ]

Features & Applications

Features

  • Removable and adjustable (nominal embedment ≥ 60 mm) – to help when levelling the baseplate
  • Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
  • Improved setting with less blocking in the toughest concrete – optimised core diameter and new screw anchor tip with sharper cutting edge, helping to cut through tough concrete without getting stuck
  • Countersunk head – to fasten flush to a baseplate for improved aesthetics and trip safety
  • Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

  • Fastening non-structural baseplates – such as handrails, staircases and balustrades
  • Suitable for use in uncracked and cracked concrete, steel-fibre reinforced concrete, hollow core slabs and masonry (size 8-10)
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
  • Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use

For approval or certificate information, please see individual items.
