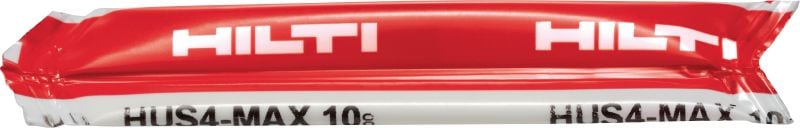

HUS4-MAX Hybrid Screw Anchor Capsule

Configurator
Technical Data
Documents
Features & Applications
Related Products

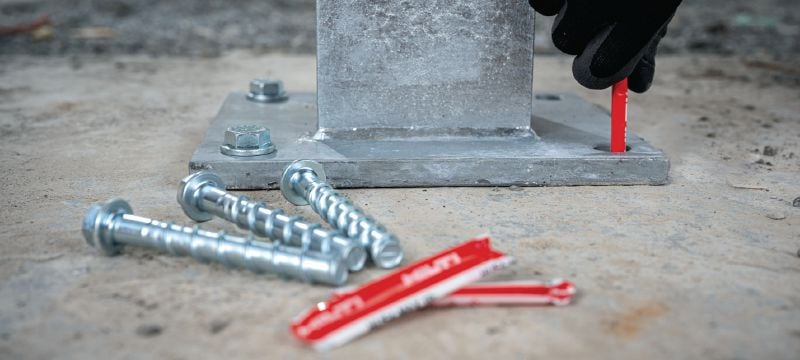

Capsule for use with screw anchors for secondary steel base plate
Hybrid screw anchor anchor setting application.

Ultimate-performance foil capsule for fast and economical heavy-duty anchoring in concrete using HUS4 screw anchors

  • Seismic loading: Yes
  • Installation direction: All
  • Drilling method: Rotary

Choose options

Anchor size - D
  • 10 mm
  • 12 mm
  • 14 mm
  • 16 mm
Pack size
  • 32 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 206.10 ILS

Technical Data

Seismic loading
Yes
Installation direction
All
Drilling method
Rotary
Tested/approved for diamond drilling
No
SAFEset
Yes
Cleaning procedures
Manual Cleaning, Non Cleaning
Installation tools
TE 6-22 Cordless rotary hammer, SIW 6-22 ½” Cordless impact wrench
Removable
Yes
In-service temperature – range
-40 - 120 °C
Storage and transportation temperature range
5 - 25 °C
PROFIS Software
Yes

Documents

Technical information
Certificate
Approval document
Brochure
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf Technical data sheet for the HUS4-MAX, English [ 1.6 MB ]
pdf Whitepaper HUS 4 MAX W4605, English [ 1 MB ]

Features & Applications

Features

  • Up to 4x faster than conventional injectable mortars – two-step installation with no cleaning, shallower embedment, smaller diameters and immediate loading help you save time on every single fastening
  • Easier and faster to install compared to traditional chemical anchors – HUS4-MAX achieves the tension resistance of traditional chemical anchors, without cleaning requirements
  • Extensive applications covered combined with HUS4 screws – ETA (EAD 332795) with seismic C1 and C2 (with carbon steel HUS4 screws) and cracked and uncracked concrete and fire resistance for all steel types
  • Screw anchor can be adjusted or removed even if the capsule was used

Applications

  • Structural baseplates to concrete using HUS4 screw anchors (size 10-16)
  • Safety relevant and designed secondary steel, platforms, staircases, balconies and industrial equipment to concrete using HUS4 screw anchors

For approval or certificate information, please see individual items.
