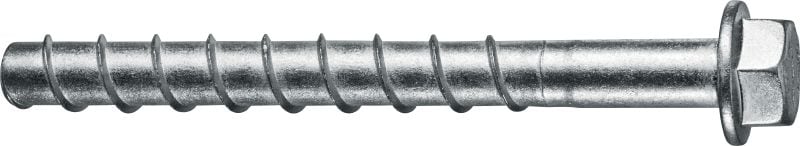

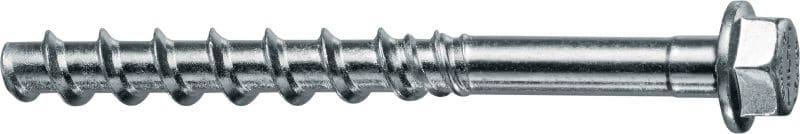

HUS4-H Screw anchor
New productItem #r12910874
High-performing hexagonal head screw anchor for fastening to concrete and masonry (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Hex head
- Approvals / Test reports: ETA, Fire, Seismic
Features
- Removable, adjustable (nominal embedment ≥ 60 mm) and reusable – ideal for temporary fastenings

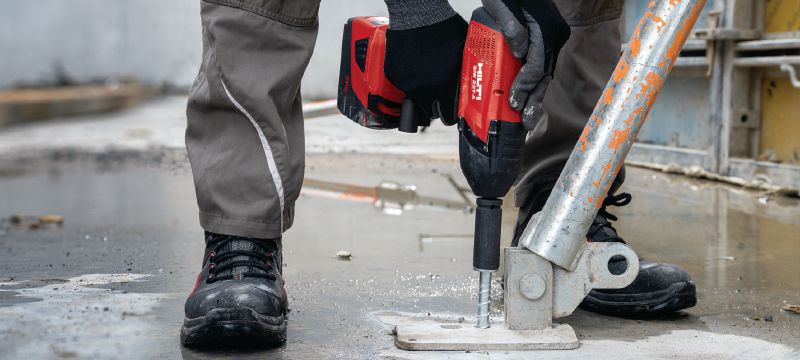

- Simpler to install – less drilling, no cleaning, no high-accuracy torque wrench and no hammering required
- Improved setting with less blocking – thanks to smaller core diameter and new thread design

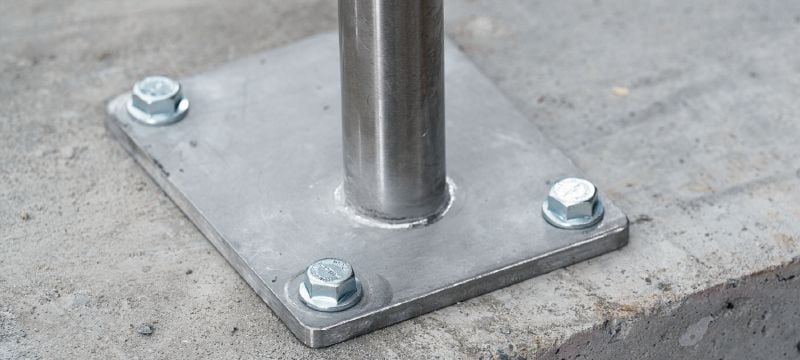

- Hexagonal head – with an integrated washer for a neat appearance of through-fastened baseplates
- Cost-saving design – pair with PROFIS Engineering software to optimize designs and reduce material costs
Applications

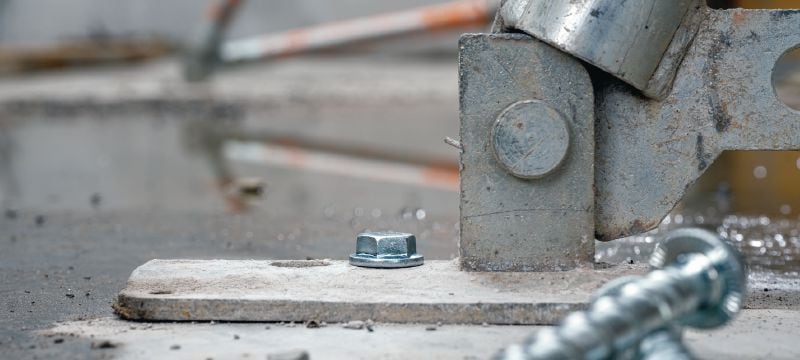

- Temporary fastenings to concrete – such as traditional formwork, propping systems and protection barriers
- Suitable for use in uncracked and cracked concrete, steel-fibre reinforced concrete, hollow core slabs (size 8-14), metal decks (size 8-10), low-strength concrete and masonry (size 8-10)
- Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use
For approval or certificate information, please see individual items.
