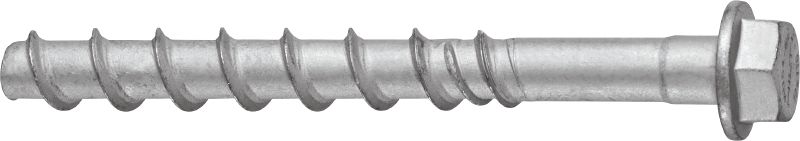

HUS4-HF Screw anchor

High-performing hexagonal head screw anchor for fastening to concrete and masonry (multilayer corrosion protection)

Anchor size - D

Anchor length - L

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 270.00 ILS

Technical Data

Material, corrosion

Carbon steel, multilayer coating

Head configuration

Hex head

Approvals / Test reports

ETA, Fire, Seismic

Base materials

Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)

Reusable (and removable)

Yes

Cleaning procedures

Automatic Cleaning (SafeSet Hollow Drill Bit), Manual Cleaning, Non Cleaning

PROFIS Software

Yes

Material composition

Steel, multilayer coating

Removable and adjustable (nominal embedment ≥ 60 mm) – to help when levelling the baseplate
Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
Improved setting with less blocking – thanks to smaller core diameter and new thread design
Hexagonal head – with an integrated washer
Cost-saving design – pair with PROFIS Engineering software to optimize designs and reduce material costs

Fastening of baseplates - such as secondary steelwork, fences, handrails and racking systems
Suitable for use in uncracked and cracked concrete, steel-fibre reinforced concrete, hollow core slabs (size 8-14), metal decks (size 8-10) and masonry (size 8-10)
Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
Suitable for permanent fastenings in dry indoor environments and outdoor use

For approval or certificate information, please see individual items.
