HUS4-C Screw anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
Screw anchor with countersunk head for use in concrete and other base materials for fastening base plate
L069403.tiff
Cropped application image of the impact wrench SIW 6AT-22 and Adaptive Torque Module SI-AT-22 with HUS4 screw anchor.

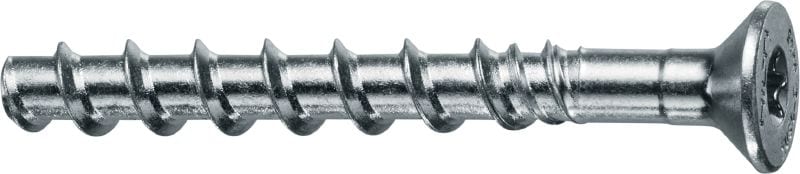

High-performing countersunk head screw anchor for fastening to concrete and masonry (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Countersunk
  • Approvals / Test reports: ETA, Fire, Seismic

Choose options

Anchor size - D
  • 8 mm
  • 10 mm
Anchor length - L
  • 55 mm
  • 70 mm
  • 75 mm
  • 85 mm
  • 90 mm
  • 100 mm
  • 110 mm
  • 120 mm
  • 160 mm
  • 175 mm
Pack size
  • 25 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 252.00 ILS

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Countersunk
Approvals / Test reports
ETA, Fire, Seismic
Base materials
Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Not Possible
Cleaning procedures
Manual Cleaning, Non Cleaning
PROFIS Software
Yes
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Approval document
Technical information
Test Report
Brochure
Sustainability Documentation
Operating Instruction
pdf ETA-20/0867 HUS4 screw anchor in concrete , English, German [ 33.9 MB ]
pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German, Polish [ 5.7 MB ]
pdf ETA-23/0936 HUS4 screw anchor in masonry, English, German, Polish [ 22.1 MB ]

Features & Applications

Features

  • Removable and adjustable (nominal embedment ≥ 60 mm) – to help when levelling the baseplate
  • Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
  • Improved setting with less blocking – thanks to smaller core diameter and new thread design
  • Countersunk head – to fasten flush to a baseplate for improved aesthetics and trip safety
  • Cost-saving design – pair with PROFIS Engineering software to optimize designs and reduce material costs

Applications

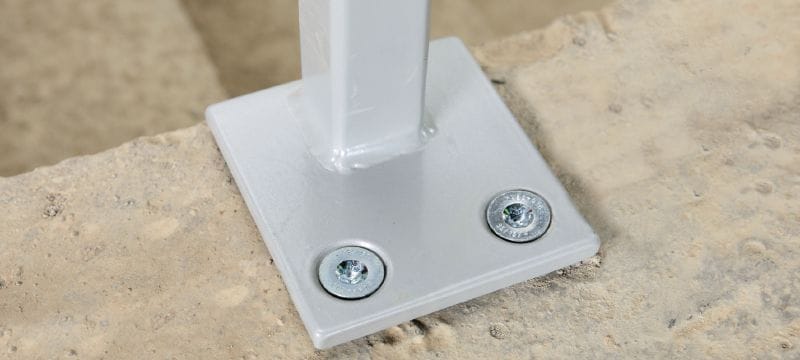

  • Fastening non-structural baseplates – such as handrails, staircases and balustrades
  • Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
  • Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use

For approval or certificate information, please see individual items.
