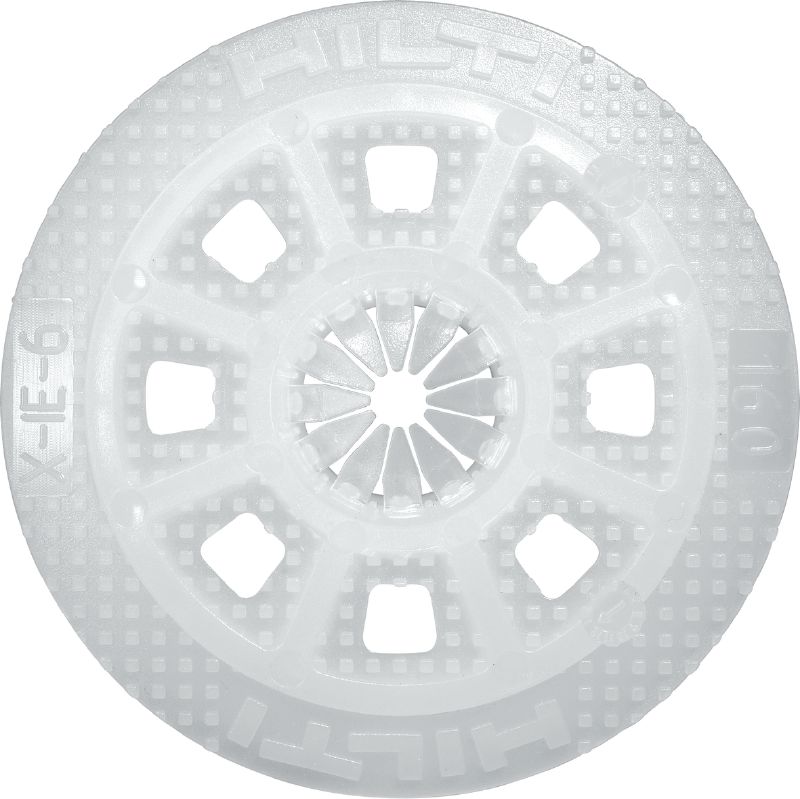

X-IE 6 Insulation fastener

Powder_actuated_tool_DX_5_IE,_Insulation

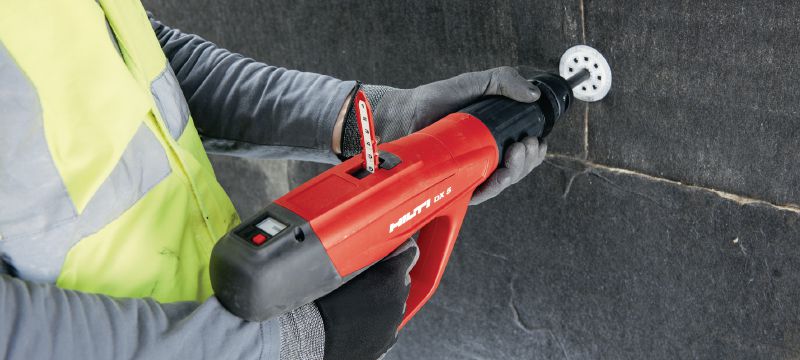

How-to use video: we explain how to use the Hilti DX 5-IE / DX 460-IE tool for installation of ceiling application boards with Hilti X-IE-H.

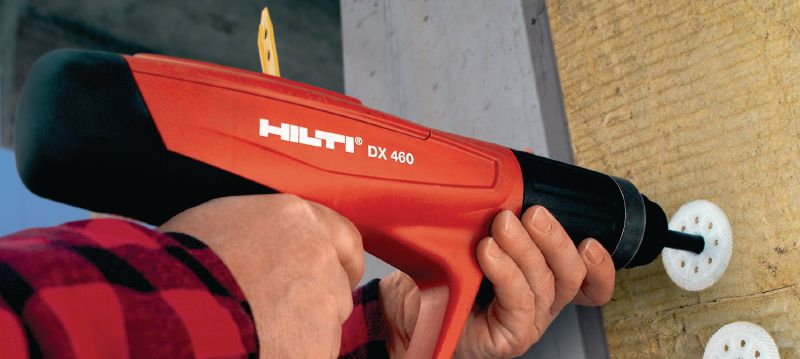

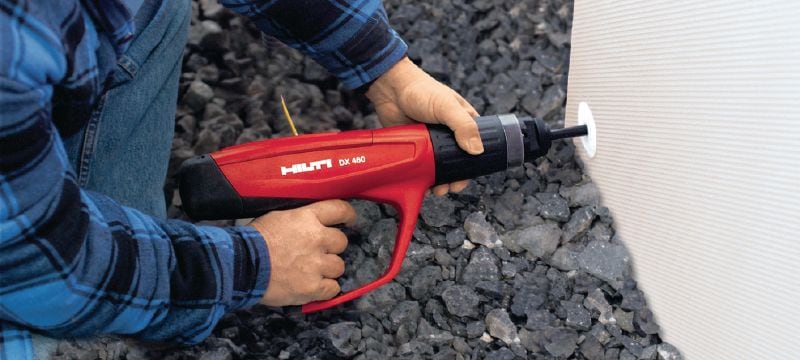

How-to use video: we explain how to use the Hilti DX 5-IE / DX 460-IE tool for fastening insulation basement perimeter with Hilti X-IE 9.

Insulation fasteners for fastening mineral wool, EPS, XPS, PIR, PUR, wood-wool and fiber-cement faced boards to soft and tough concrete, masonry and steel

Application: Rigid Board Insulation, Mineral Wool Insulation
Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Base materials: Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)

ultimate

Customers also searched for Insulation fasteners, Insulation nails, rigid insulation fasteners, insulation board fasteners or power fasteners.

Choose options

Insulation thickness

25 mm
30 mm
35 mm
40 mm
50 mm
60 mm
70 mm
75 mm
80 mm
90 mm
100 mm
120 mm
140 mm

Pack size

100 pc
150 pc
200 pc
300 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 440.00 ILS

Technical Data

Application

Rigid Board Insulation, Mineral Wool Insulation

Insulation material

Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)

Base materials

Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)

Approvals

ITB

For use with (tools)

DX-IE

Minimum thickness of base material (concrete)

80 mm

Minimum thickness of base material (steel)

4 mm

Material

High-density polyethylene (HDPE), Halogen-free, Silicone-free

Color

Colorless

Product Class

Ultimate

Documents

Features & Applications

Features

Extremely quick insulation fastening system, one-step solution, up to five times faster than alternative methods
Suitable for a wide range of insulation materials – mineral wool, EPS, XPS, PIR, PUR, soft core multilayer board, rigid core multilayer board
Suitable for 20-200 mm thick insulation (14-197 mm for multilayer boards)
Excellent thermal efficiency, no cap required
No holes in the plastic shank – helping prevent mold and moisture penetration in the insulation material

Applications

Fastening mineral wool, EPS, XPS, PIR, PUR, wood-wool and fiber-cement faced boards to soft and tough concrete, masonry and steel
Fastening insulation on walls and ceilings
Light ventilated façade insulation
Basement perimeter wall insulation
Suitable for non ETICS insulation applications

For approval or certificate information, please see individual items.
