Nuron

DD 150-U-22 Cordless core drill

Cordl. diam. coring tool DD 150-U-22 #2369512

Configurator
Technical Data
Documents
Features & Applications
Related Products

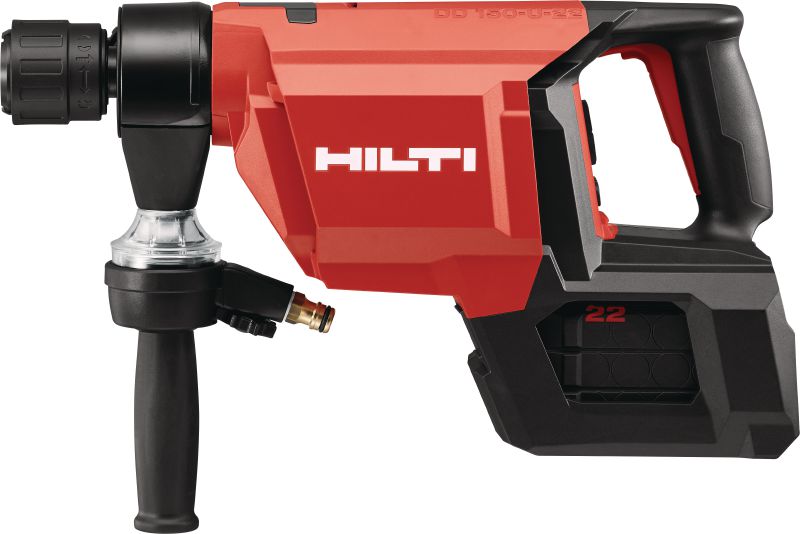

Still life picture of the cordless core drill DD 150-U-22 with battery B 22-255.

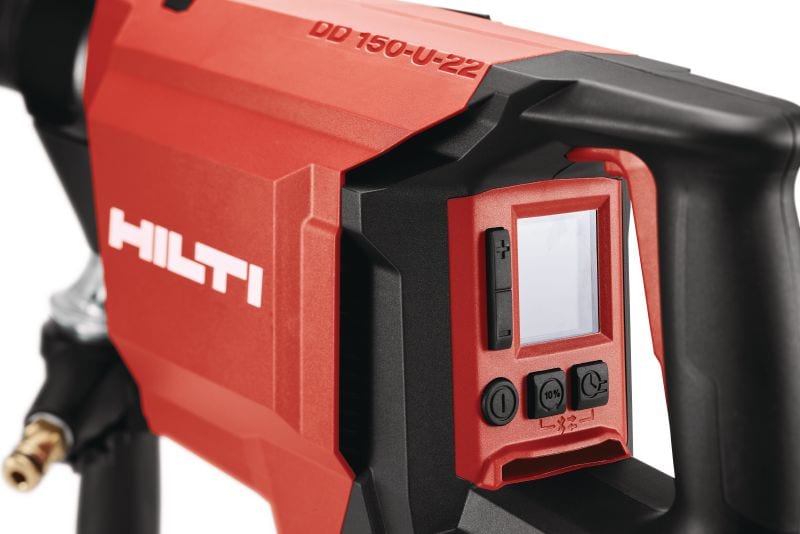

3D still life picture of the cordless core drill DD 150-U-22. Screen display view.

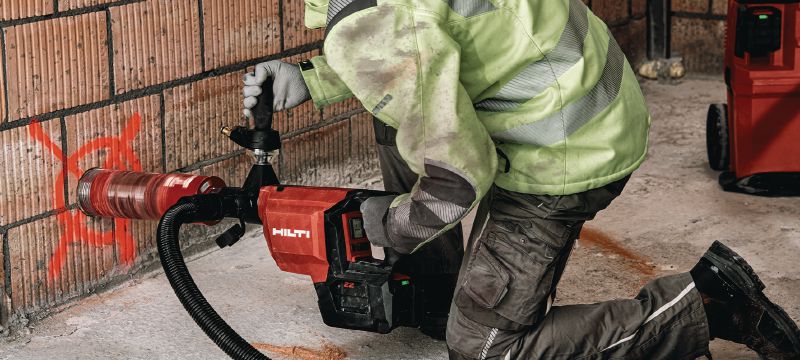

Cropped application picture of the cordless core drill DD 150-U-22 with the SPX A speed core bit and attached to the cordless vacuum cleaner VC 4X-22. Hand-held dry coring in masonry.

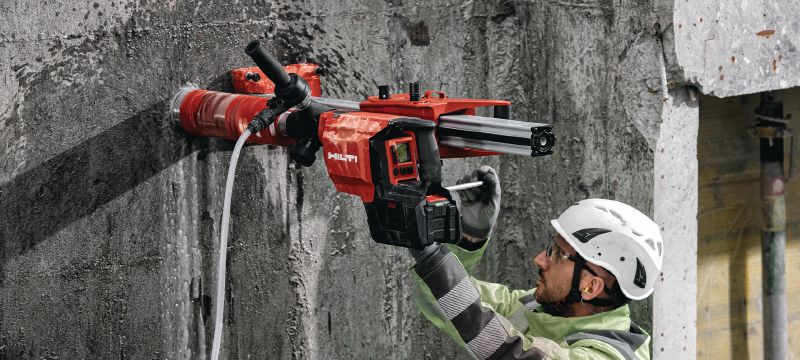

Cropped application picture of the cordless core drill DD 150-U-22 with the SPX A speed core bit and attached to a drill stand. Rig-based wet coring in concrete.

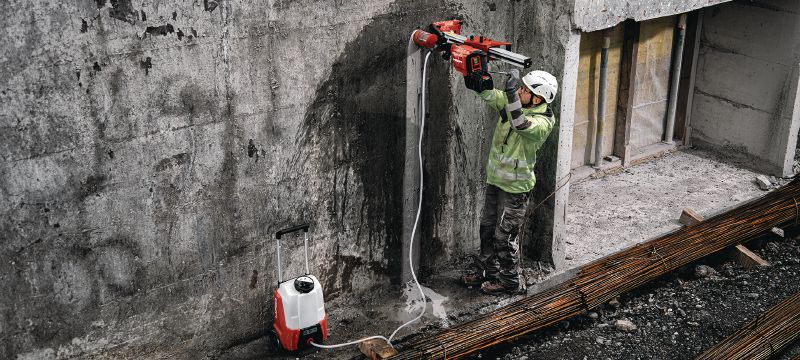

Cropped application picture of the cordless core drill DD 150-U-22 with the SPX A speed core bit and attached to a drill stand and water pump DWP 15-22. Rig-based wet coring in concrete.

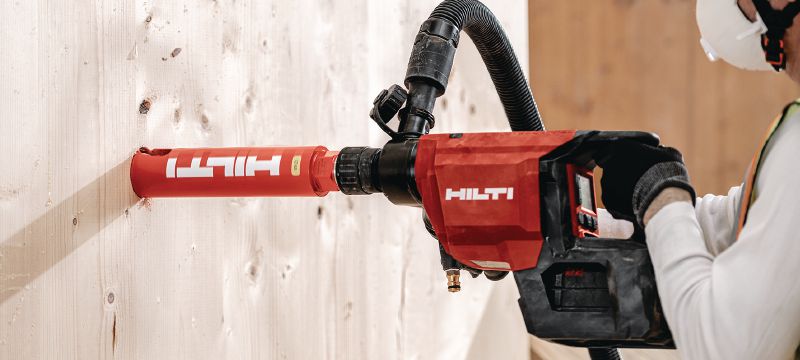

Cropped application picture of DD 150-U-22 with SPX-L Wood during handheld drilling.

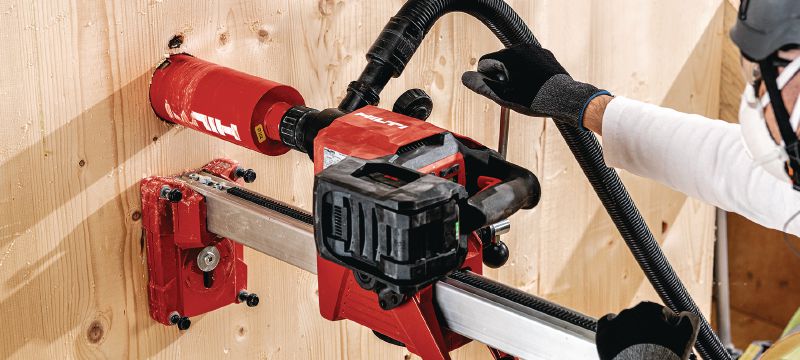

Cropped application picture of DD 150-U-22 with SPX-L Wood during rig-based drilling.

Cordless diamond coring machine for handheld or rig-based coring from 52-162 mm (2 – 6-3/8") in concrete or up to 252mm (10") in masonry (Nuron battery)

  • Diameter range: 52 - 162 mm
  • Base material: Masonry, Asphalt, Concrete, Reinforced concrete, Wood
  • Operation mode: Hand-held and rig-mounted drilling system

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
15,906.80 ILS
15,906.80 ILS / 1 each

Technical Data

Diameter range
52 - 162 mm
Base material
Masonry, Asphalt, Concrete, Reinforced concrete, Wood
Operation mode
Hand-held and rig-mounted drilling system
Rated input power
1650 W
Number of gears
20
Weight according to EPTA-Procedure 01/2003 without battery
7.4 kg
Weight of complete system
19 kg
Dimensions (LxWxH)
453 x 150 x 254 mm
A-weighted emission sound pressure level
92 dB (A) 1
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction DD 110-U-22 01, DD 150-U-22 01, Bulgarian, Czech, Greek, English, Hebrew, Croatian, Hungarian, Polish, Romanian, Slovak, Slovenian, Serbian [ 8.1 MB ]
pdf Operating Instruction DD 110-U-22 01, DD 150-U-22 01, Danish, German, English, Spanish, Estonian, Finnish, French, Italian, Lithuanian, Latvian, Dutch, Norwegian, Portuguese, Swedish [ 8.3 MB ]

Features & Applications

Features

  • E-gears for higher performance – electronic gears set RPM/torque combinations for optimised drilling speeds at every diameter
  • Safer handheld coring – Active Torque Control (ATC) helps protect you from uncontrolled spinning if the core bit jams
  • More coring per charge – pair with new cordless optimised core bits for up to 30% more battery reach
  • Easier core removal – oscillating function helps shake loose stuck cores to save downtime
  • Less multi-tasking – Bluetooth® connects information from your water management system and vacuum all in one real-time display

Applications

  • Rig-based wet drilling in concrete for pipe penetrations, cable trays and ducts and for the installation of railings and barriers
  • Handheld wet drilling for small pipe penetrations in plumbing applications
  • Handheld dry drilling in masonry for pipe penetrations in plumbing, heating and air conditioning installations
  • Handheld coring for large diameter sewage pipes, chimneys and cooker installations
  • Hand-held core drilling in wood up to 202 mm (8") diameter and rig-based core drilling in wood up to 162 mm (6 1/4") diameter
