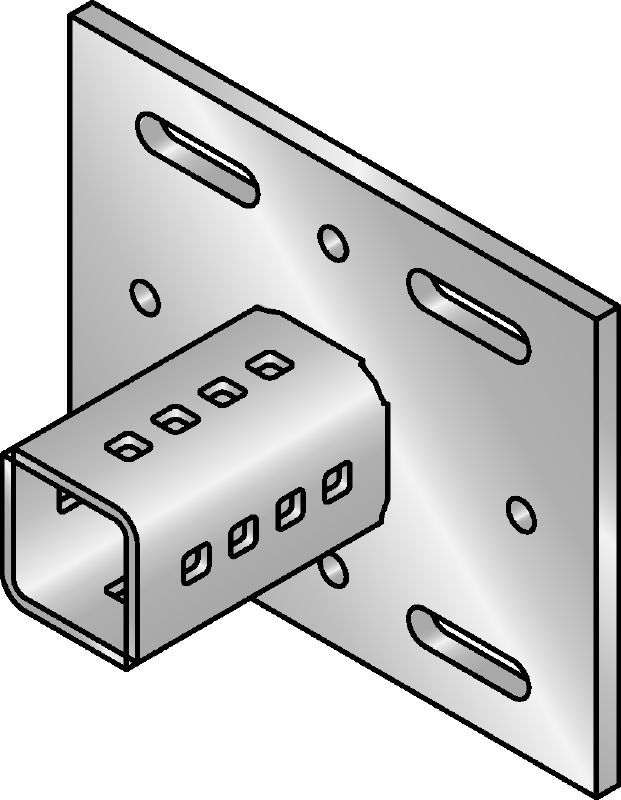

MIC-SH Baseplate (for MI-90)

Configurator
Technical Data
Documents
Features & Applications
Related Products
MIC-S - Steel Baseplates

Hot-dip galvanized (HDG) baseplate for fastening MI-90 girders to steel for heavy-duty applications

  • Material composition: Connector: S235 - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
  • Surface finish: HDG: Connector min 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)

Choose options

Steel beam witdh
  • 75 - 165 mm
  • 235 - 305 mm
Modular Girder Type
  • 90
Pack size
  • 2 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 2,427.00 ILS

Technical Data

Material composition
Connector: S235 - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Connector min 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Documentation
Operating Instruction
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Provides a strong and rigid connection
  • Designed to cover a large range of standard flange widths
  • Adjustable and flexible – for easier, more efficient girder installation
  • Can be easily connected to steel using beam clamps (not included)
  • High-strength part designed for extra-high application loads

Applications

  • Part of a modular system for supporting cable trays, pipes and miscellaneous secondary steel
  • Fastening to standard steel beams without drilling or welding
  • Suitable for use with the MI-SGC M16 beam clamp
  • Designed to cover a large range of standard flange widths for heavy-duty applications
  • Recommended for use in moderately corrosive outdoor and indoor environments

For approval or certificate information, please see individual items.
