MIC-MI/MQ M8

Name: MIC-MI/MQ M8
Brand: Hilti
SKU: r6188

New product

Item #r6188

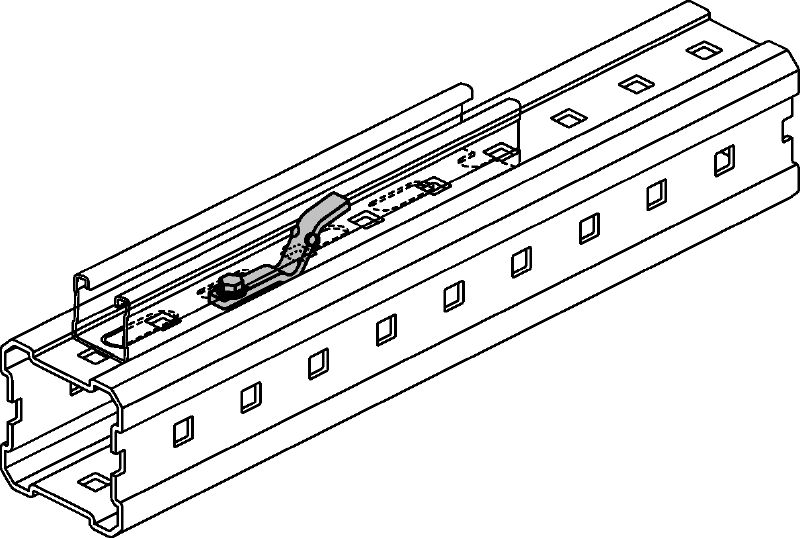

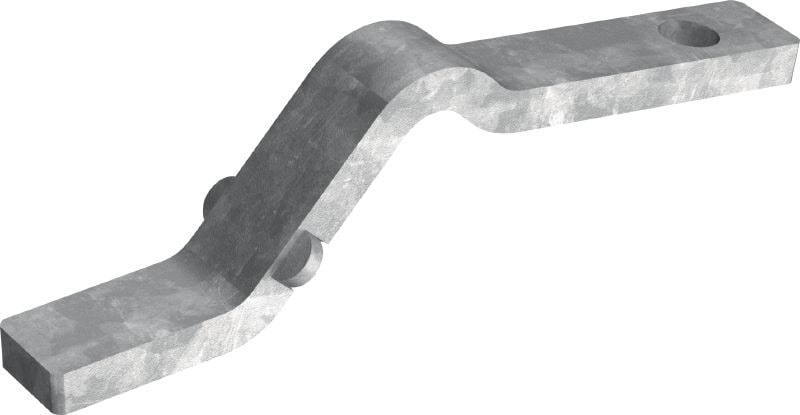

Hot-dip galvanized (HDG) connector for fastening MQ strut channels parallel to MI girders

Weight: 0.06 kg
Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8
Surface finish: HDG: Connector 55 µm - DIN EN ISO 1461; Bolt 45 µm - DIN EN ISO 1461

More technical data

Features

Allows direct connection to MQ strut channels
Keyed hold for optimum transmission of forces and moments

Applications

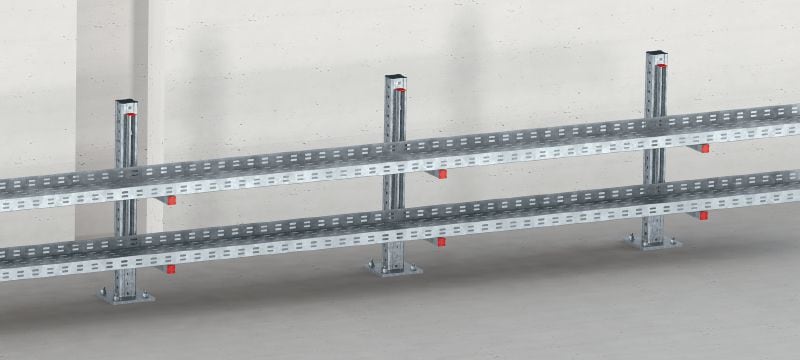

Direct connection of MQ installation channels to the MI system
Applications in the chemical, pharma and petrochemical industries or in incineration plants and power stations

Product Variants & Sets

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

Connector MIC-MI/MQ-M8

- PDF Instruction for use MIC-MI/MQ/M8, Chinese (traditional), Italian, German, Russia, Swedish, Turkish, Ukrainian, French, Arabic, Portuguese, Sardinian, Spanish, Malay, Thai, Finish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 260.5 kB ]

MIC-MI/MQ M8

Hot-dip galvanized (HDG) connector for fastening MQ strut channels parallel to MI girders
