MM-A-90

מחברי 90° לתעלות עם שני ברגים MM-A-90 #418757

Configurator
Technical Data
Documents
Features & Applications
Related Products
Angle MM-A-90
MM-A-90
LCG001055_s.tif

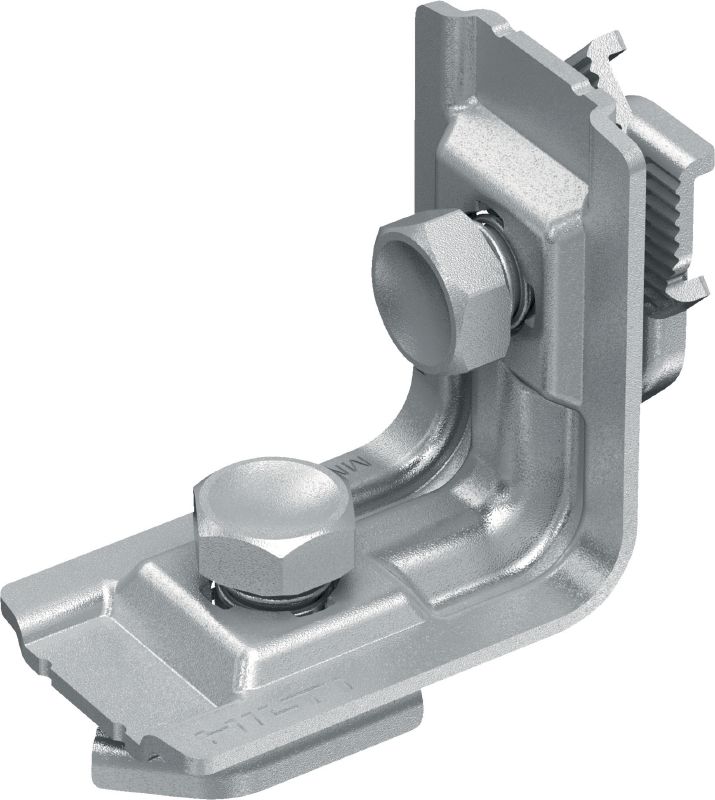

Galvanized 90-degree preassembled angle for connecting multiple MM strut channels

  • Product Class: Ultimate
  • Tightening torque: 12 Nm
  • Thread connection - M: M8
ultimate

Choose options

Thread connection - M
  • M8
Pack size
  • 20 pc
 Product options
Quantity
Pack
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
409.00 ILS
20.45 ILS
/
1 each

Technical Data

Product Class
Ultimate
Tightening torque
12 Nm
Thread connection - M
M8
Material composition
DC04 - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
For use with
Pre assembled bolts
Wrench size
13 mm
Weight
84 g

Documents

Approval document
Operating Instruction
pdf Load data MM-A(H)-90 / MM-C, English, German [ 73.2 KB ]

Features & Applications

Features

  • Preassembled – for quicker installation and to help avoid losing parts
  • Adjustable – easily fit and repositioned along strut channels

Applications

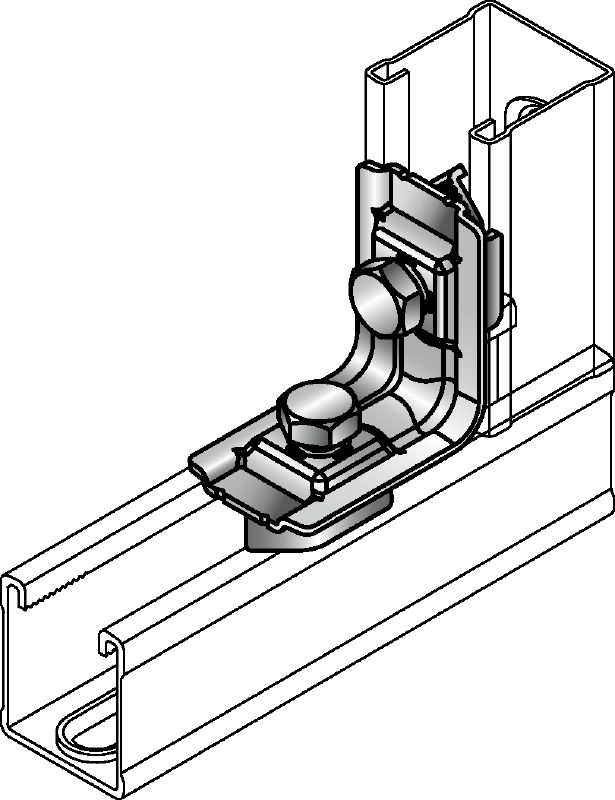

  • Fastening channels at 90 degree angles
  • Recommended for use in dry, interior environments

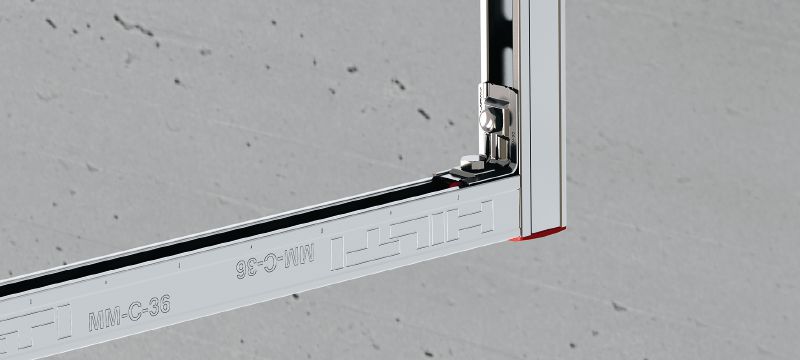

  • Assembling channel frames and support structures
