MM-C-36 C-Channel profile

Configurator
Technical Data
Documents
Features & Applications
Related Products
MM-C-36 M10
MM-C-36
32494.tif
MM

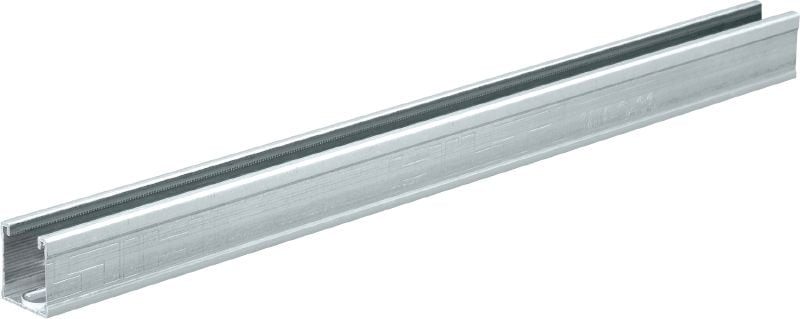

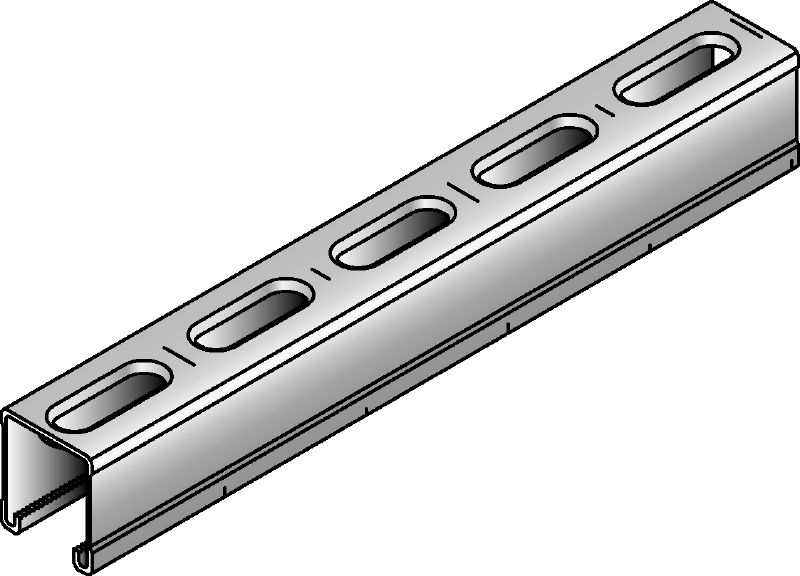

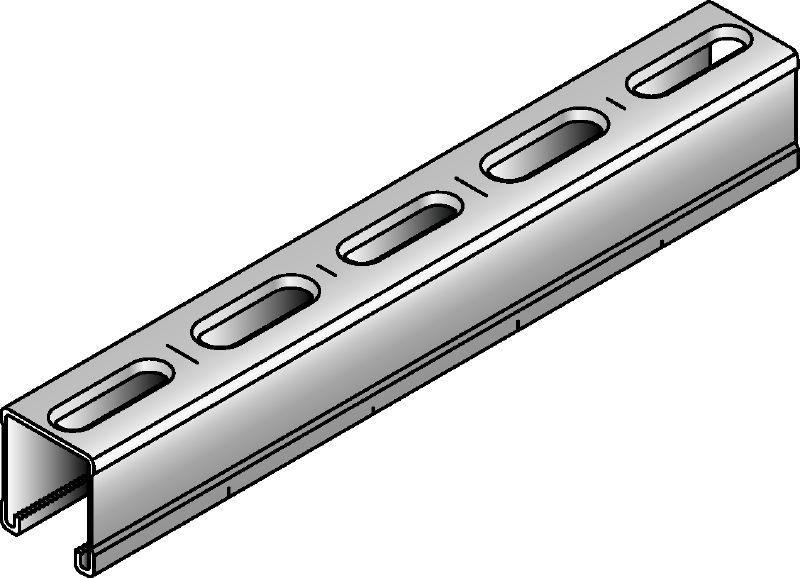

Galvanized C-Channel profile for light/medium-duty applications

  • Height: 36 mm
  • Material thickness: 1.75 mm
  • Material composition: S250GD - DIN EN 10346

Choose options

Length
  • 2 m
  • 3 m
Pack size
  • 16 m
  • 18 m
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 87.69 ILS

Technical Data

Height
36 mm
Material thickness
1.75 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf Load data MM-C, English, German [ 54.8 KB ]

Features & Applications

Features

  • C-profile with serrated edges – for optimized pull-out and shear capacity
  • Optimized back slots – for quicker, more flexible anchor fastening
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Modular installation channel system – for versatility and flexibility
  • The Hilti MM system meets many requirements set by the leading green building standards (LEED®, DGNB®, BREEAM®, etc.)

Applications

  • Light- and medium-duty pipe support system
  • Fastening ventilation ducts and cable trays
  • Recommended for use in dry interiors

For approval or certificate information, please see individual items.
