MM-RI rubber inlay

Configurator
Technical Data
Documents
Features & Applications
Related Products
MM-RI
32527.tif
LCG001059_s.tif
32482.eps

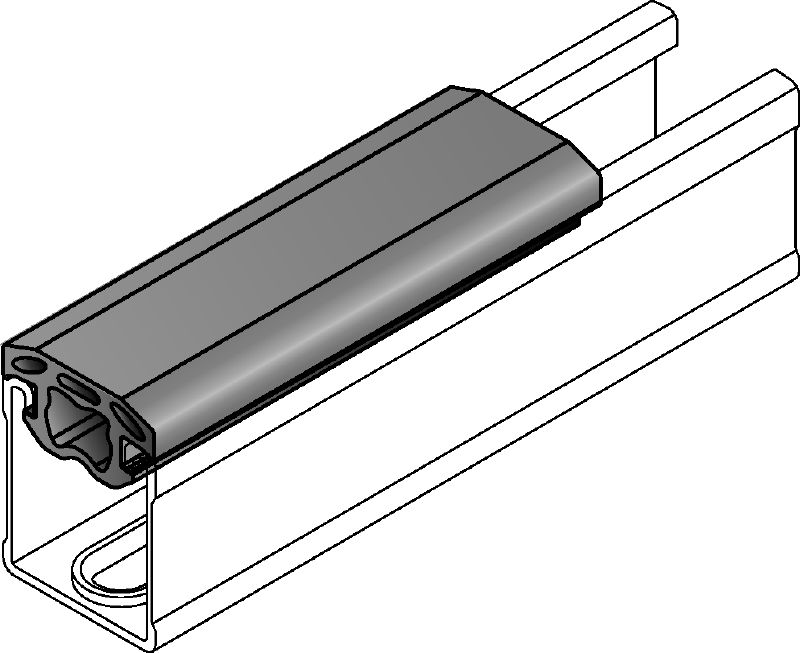

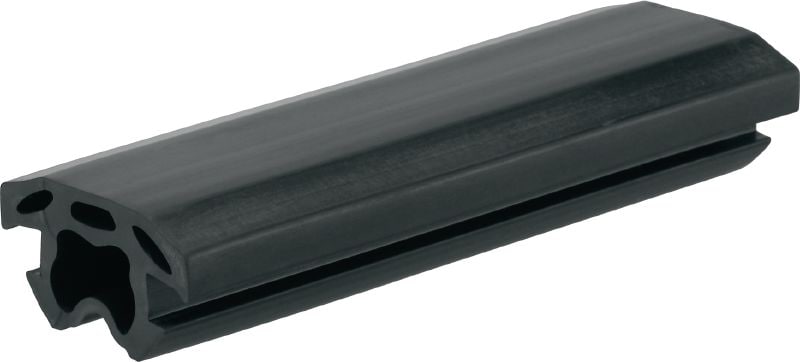

Channel rubber inlay for sound insulation

  • Approvals: Acustic insulaton DIN 4109 inspected
  • For use with: MM-C-16, MM-C-30, MM-C-36, MM-C-45
  • Material composition: EPDM

Choose options

Length
  • 0.1 m
  • 20 m
For use with
  • MM-C-16, MM-C-30, MM-C-36, MM-C-45
Pack size
  • 1 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 612.00 ILS

Technical Data

Details
Technical illustrations
Approvals
Acustic insulaton DIN 4109 inspected
For use with
MM-C-16, MM-C-30, MM-C-36, MM-C-45
Material composition
EPDM
Surface finish
n/a
Temperature resistance
-40 - 110 °C
Noise reduction
13 dB (A)
Resistance
UV light, diluted acids and alkalis, alcohol solutions, water and water-based solutions
Ageing resistance
Tested as per DIN 53508 and 53509
Hardness Insulation Material
55° ±5° Shore A

Documents

pdf Test Report MM-RI, German [ 1.1 MB ]

Features & Applications

Features

  • Suitable for all three types of MM channel profiles and M8/M10 threaded rods
  • Prevents direct contact between the air duct and the channel
  • Large contact area between the channel insulation profile and the air duct avoids transmission of vibration and structure-borne sound
  • Quick and easy installation in the channel
  • Suitable for all MM installation channel systems and M8/M10 threaded rods

Applications

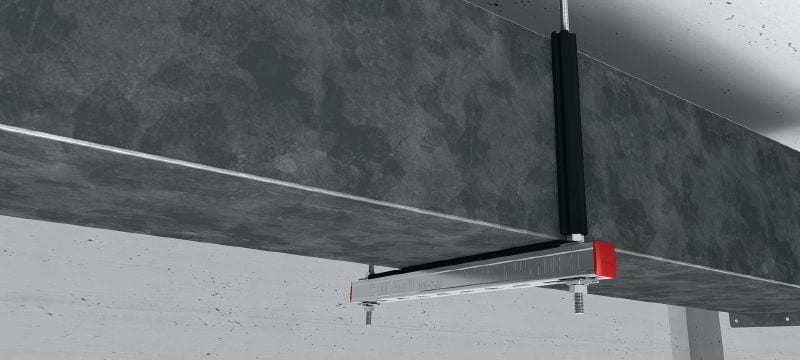

  • Acoustic insulation of MM channel air duct supports
  • Insulating layer between M8 and M10 threaded rods and the ventilation duct
  • Acoustic insulation element for use with the MM channel system in the installation of ventilation systems
  • For separating the items installed from the channel

For approval or certificate information, please see individual items.
