Connector MIC-C90-AA concrete #304825

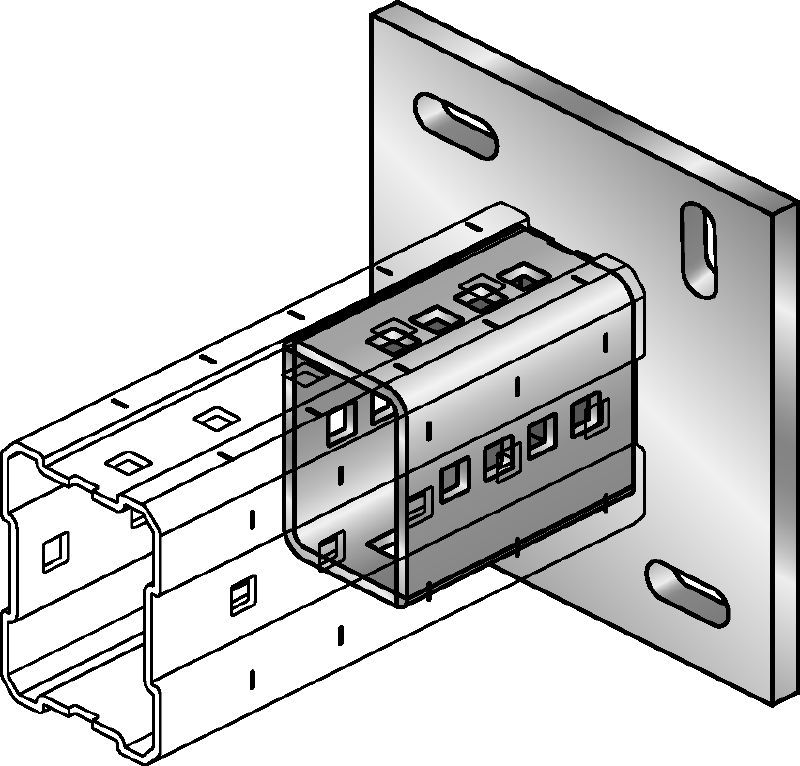

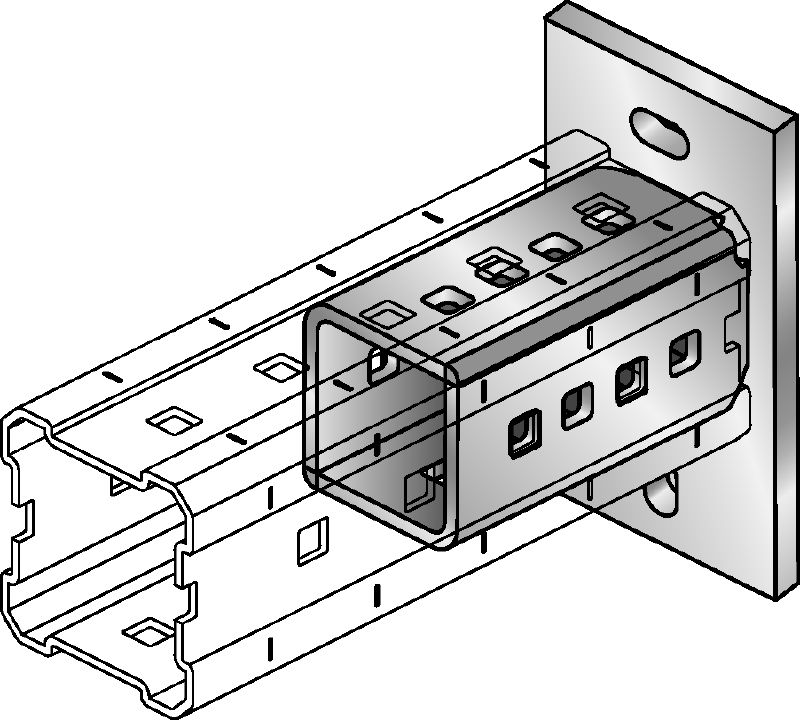

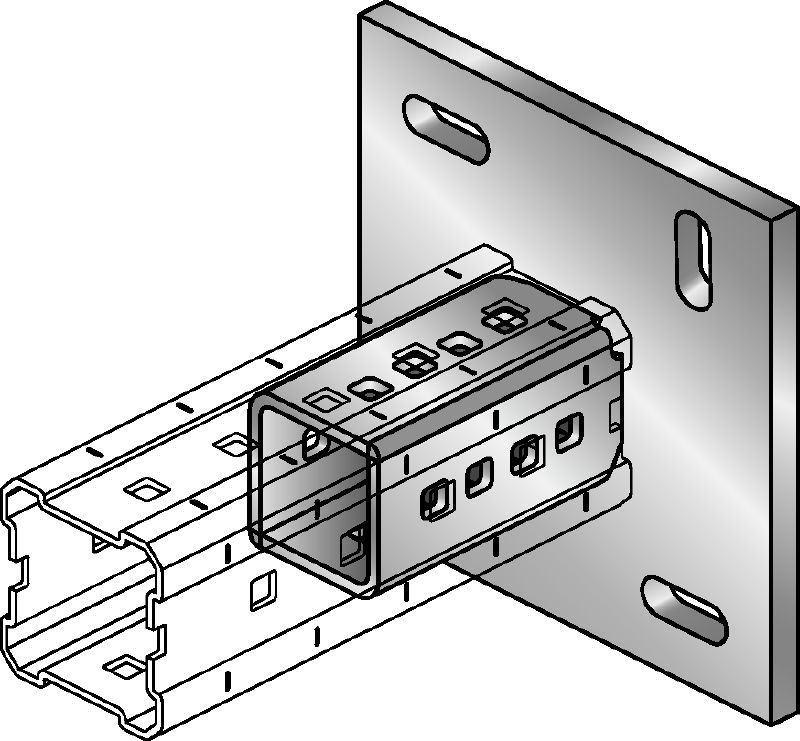

Hot-dip galvanized (HDG) baseplate for fastening MI-90 girders to concrete using two anchors
- Weight: 3.49 kg
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: Connector 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
Choose options
Modular Girder Type
- 90
Pack size
- 2 pc
Quantity
Pack
Total Pieces
2
Discounted net
1,136.00 ILS
568.00 ILS / 1 each
Technical Data
Weight
3.49 kg
Material composition
Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Connector 55 µm - DIN EN ISO 1461; Bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
84 Nm
Wrench size
19 mm
Documents
Features & Applications
Features
- Provides a strong and rigid connection
- Concrete connector base plates can be fastened using a variety of Hilti anchors
- Adjustable and flexible – for easier, more efficient installation
- Designed for fast, one-person installation and extension
- No welding required – work faster and, where possible, without hot work permits
Applications
- Part of a modular four-part system for supporting cable trays, pipes and miscellaneous secondary steel
- Industrial and heavy commercial applications, eliminating the need for welding
- Fastening to concrete walls, floors or ceilings
