MT-C-LL1 FL Pre-assembled angle connector

Channel connector MT-C-LL1 FL #2399637

Configurator
Technical Data
Documents
Features & Applications
Related Products

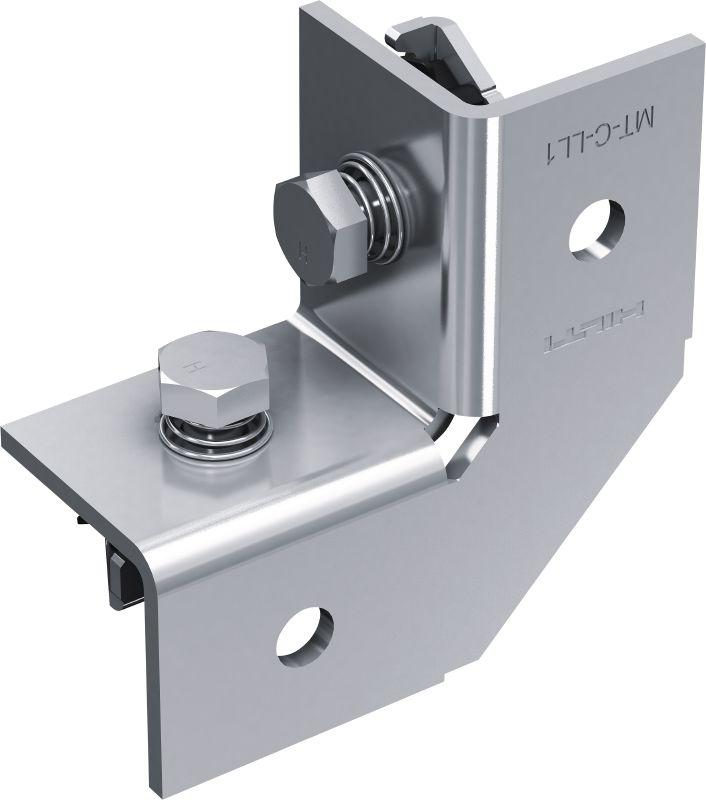

Still life picture of pre-assembled channel connector MT-C-LL1 FL with Fast-Lock

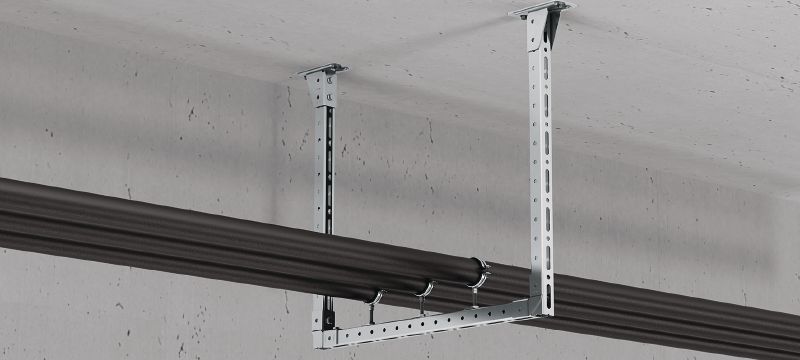

Cropped detail application picture of MT-C-LL1 FL

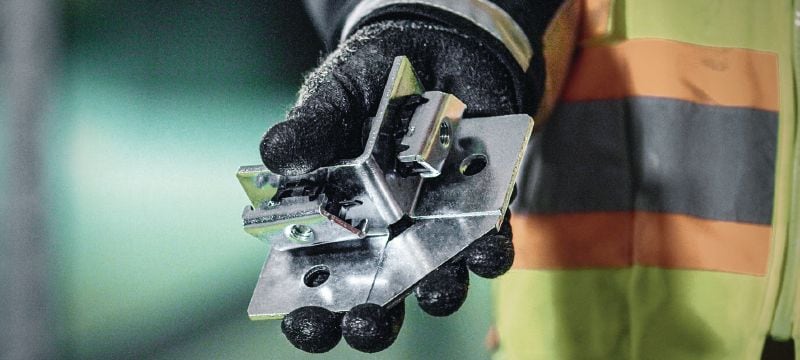

Cropped application picture of Fast-Lock disassembled
Cropped application picture of Fast-Lock clip-in

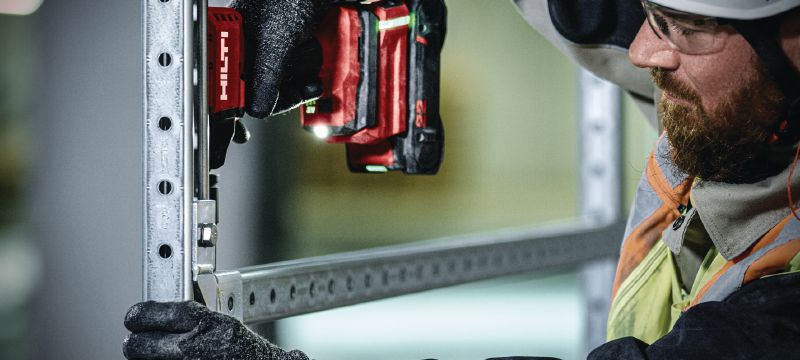

Cropped application picture of MT-C-LL1 FL installation
Cropped application picture of MT-C-LL1 FL with AT Module
Cropped application image of pre-assembled channel connector with Fast-Lock
Line drawing of the MT-C-LL1 FL

Right-angle connector with pre-assembled Fast-Lock nut and bolt for assembling strut channel structures

  • Material composition: Q235B
  • Material and coating: Carbon steel - indoor coated
  • Material thickness: 4 mm

Choose options

Pack size
  • 16 pc
 Product options
Quantity
Pack
Total Pieces
16
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
603.00 ILS
37.69 ILS / 1 each

Technical Data

Details
Technical illustrations
Material composition
Q235B
Material and coating
Carbon steel - indoor coated
Material thickness
4 mm
Surface finish
Indoor Coated - Electro galvanized
Tightening torque
30 Nm
Weight
0.46 kg

Documents

Certificate
Approval document
Brochure
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Extensive software support – PROFIS Modular Support Engineering, BIMCAD content and Revit® families are all available to streamline design and ordering

Applications

  • Fastening L-shaped connections between any MT strut channels
  • Assembling 2D metal framing for MEP support structures, such as strut trapeze
  • Suitable for use in dry, indoor environments
