MT-FL Fast-Lock channel nut with bolt

Fast-Lock MT-FL #2399683

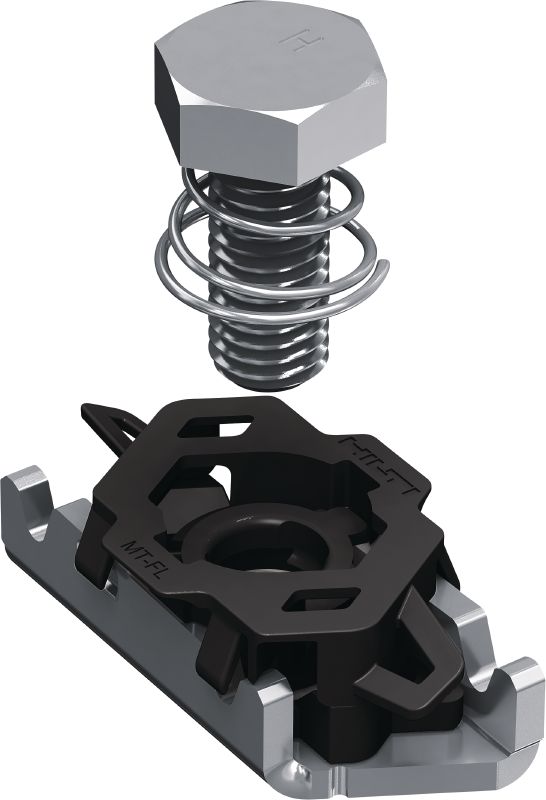

Fast-Lock channel nut with bolt for attaching baseplates and connectors to MT strut channels

Pack size

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

475.00 ILS

9.50 ILS

1 each

Technical Data

Material composition

S460MC, Q460B (Q460C MOD)

Material and coating

Carbon steel - indoor coated

Material thickness

3 mm

Surface finish

Indoor Coated - Electro galvanized

Tightening torque

30 Nm

Weight

0.06 kg

pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

pdf ETA-24-0607 MT Channel Connectors, English [ 1.3 MB ]

pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

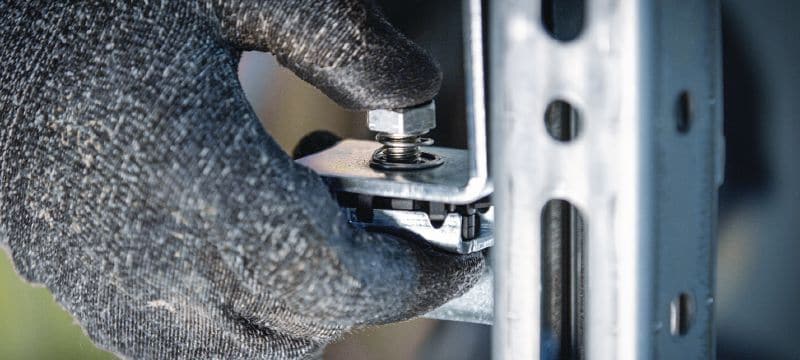

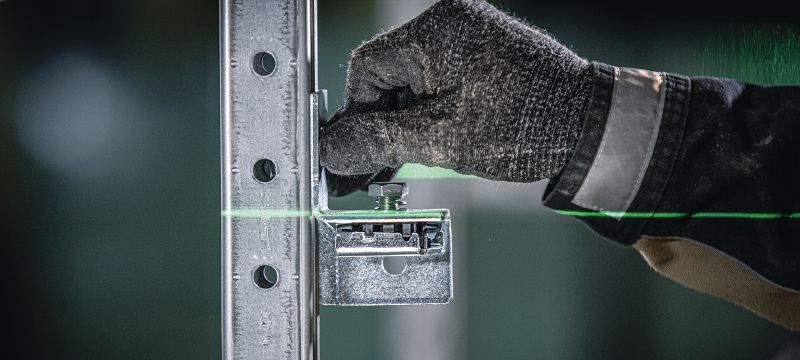

Faster connections and adjustments – one-handed push-and-turn connections and one-click position adjustments allow you to assemble modular support systems much faster than standard spring nuts

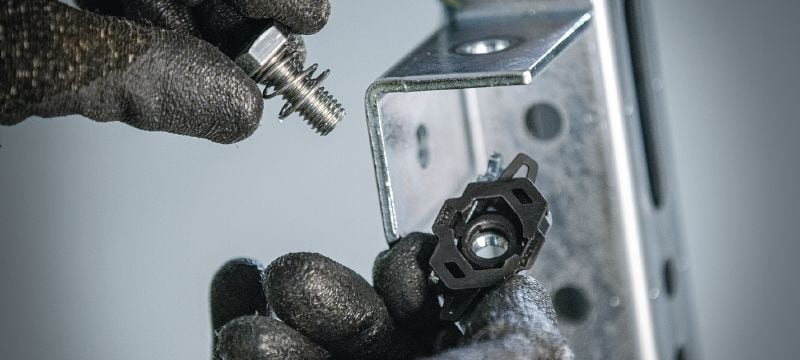

Simple to adjust – Fast-Lock nuts are re-adjustable and can be easily disassembled so that you can modify strut channel framing during installation
Safety features – designed so that you can see, hear, and feel correct channel nut positioning, with pre-holding function to hold connector in place as soon as the mechanism is activated

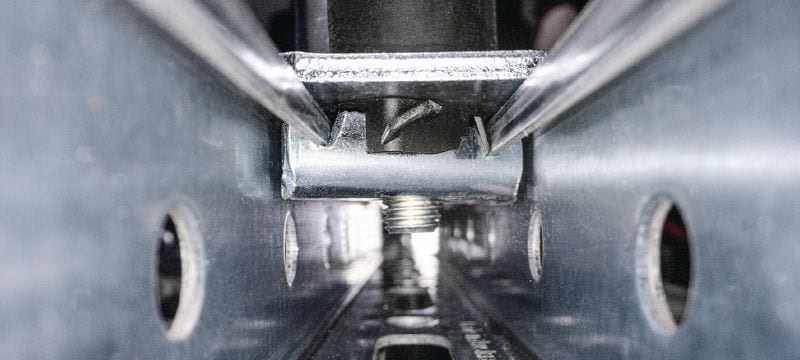

Reliable connections – strong mechanical fixation to the channel flanges provides high shear and pull-out resistance

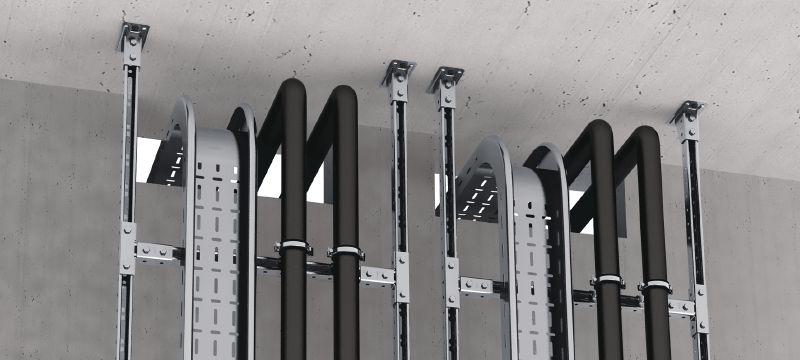

Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
