MP-P Pipe clamp

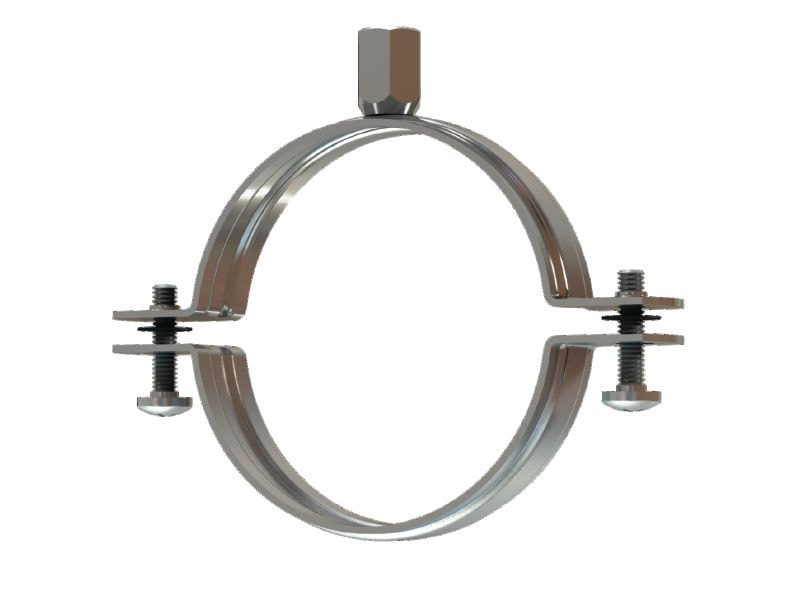

Pipe ring MP-P 148-156 #2167464

Galvanized pipe clamp without sound insulation for economical light/medium-duty applications

  • Clamping Range - D: 148 - 156 mm
  • Thread connection - M: M8, M10
  • Maximum load - F: 1500 N
standard

Choose options

Clamping Range - D
  • 148 - 156 mm
Thread connection - M
  • M8, M10
Pack size
  • 50 pc
Product options
Quantity
Pack
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

1,035.00 ILS

20.70 ILS / 1 each

Technical Data

MP-P Pipe Ring without Isolation, version 2020
Clamping Range - D
148 - 156 mm
Thread connection - M
M8, M10
Maximum load - F
1500 N
Material composition
SPCC-SD FB - Q/BQB402, DC01 – EN 10130
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Tightening torque
2 Nm
Cross Section Thickness - s
1.5 mm
Cross section width - b
20 mm
Distance between holes - A
184 mm
Product Class
Standard

Documents

Features & Applications

Features

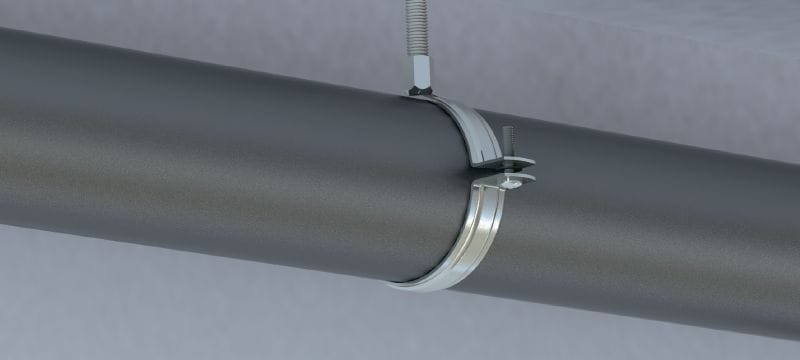

  • Two-screw pipe ring for easier installation of pipes
  • Short connection head allows installation close to a wall, floor or ceiling
  • Clamping ranges suitable for all standard plastic and steel pipes
  • Engineered for longevity and reliability – recognized by third-party approvals

Applications

  • Light to medium-duty pipe installations
  • Fastening pipes in residential and industrial construction
  • Fastening fresh water, waste water and heating pipes in residential and industrial construction
  • Recommended for use in dry, interior environments
