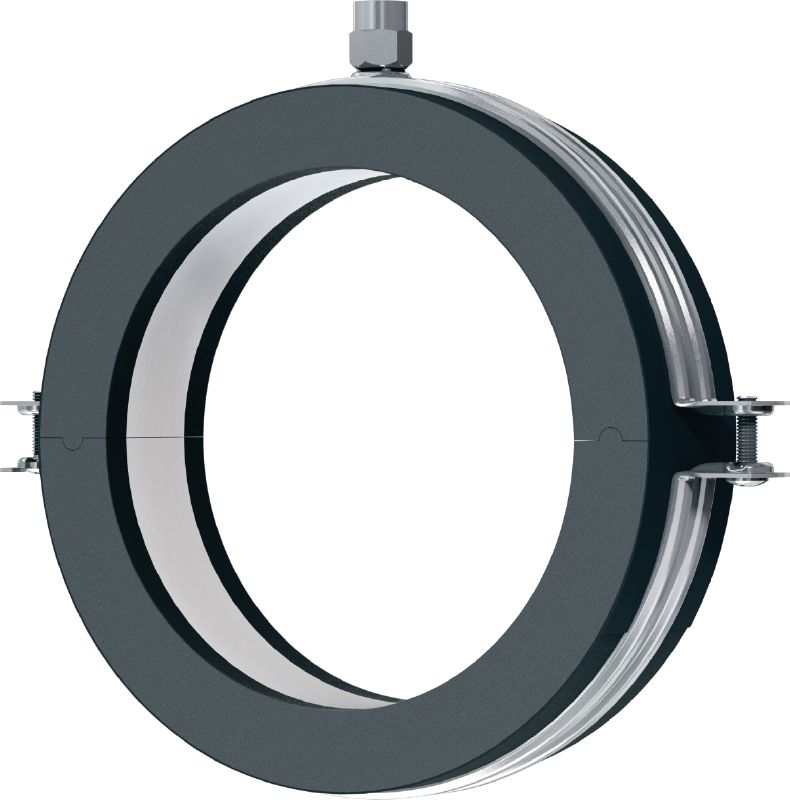

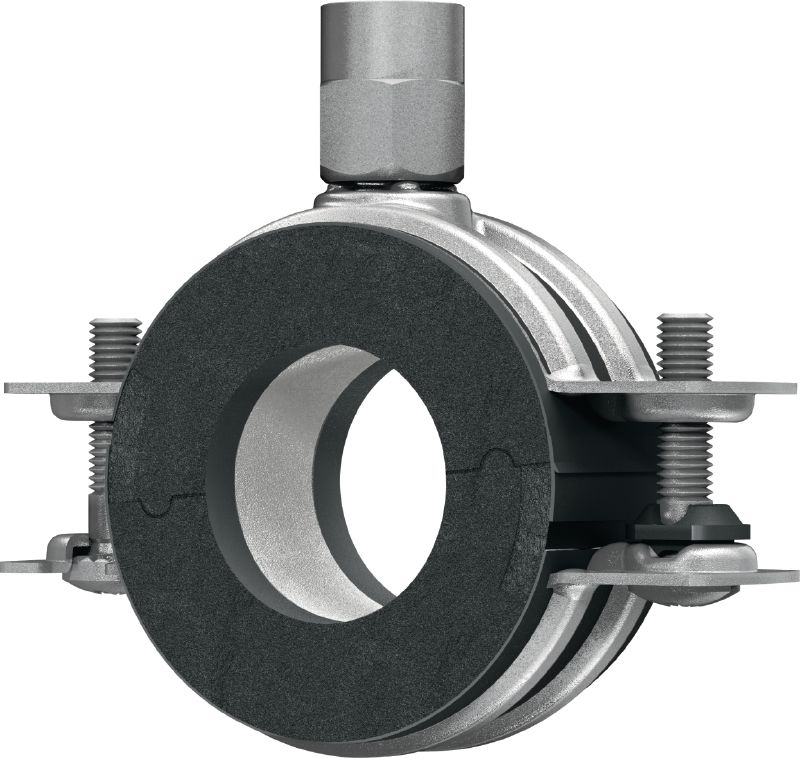

MRP-RPC Quick-close refrigeration pipe clamp

Refrig. pipe ring MRP-RPC 60 (19) #2112299

CG001504_1.tif
CG001505_1.tif
LCG001478_v2.tif
LCG001479_v1.tiff
L001506_1.tiff
L001507_1.tiff
IS_PR_MPR-RPC_0001.eps

Galvanized pipe clamp for high productivity in refrigeration and cold water applications with an insulation thickness of 19 mm

  • Diameter - D: 60.3 mm
  • Thread connection - M: M8, M10
  • Maximum load - F: 350 N
premium

Choose options

Diameter - D
  • 60.3 mm
Thread connection - M
  • M8, M10
Nominal pipe size (imperial)
  • 2 in
Pack size
  • 20 pc
 Product options
Quantity
Pack
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
1,810.99 ILS
90.55 ILS
/
1 each

Technical Data

Diameter - D
60.3 mm
Thread connection - M
M8, M10
Maximum load - F
350 N
Noise reduction
22.5 dB (A)
Temperature resistance
-40 - 105 °C
Material composition
Closed-cell polyurethane foam (elastomer), outside vapor retardant PVC-foil
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Tightening torque
1 Nm
Cross Section Thickness - s
19 mm
Cross section width - b
48 mm
Product Class
Premium
Thermal conductivity (λ approx. value)
0.034 W/mK
Approx. Density
120 kg/m³
Additional product information
Diffusion Resistance: Elastomere µ ≥ 7000, PVC µ ≥ 7000, Temperature resistance of PIR

Documents

pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

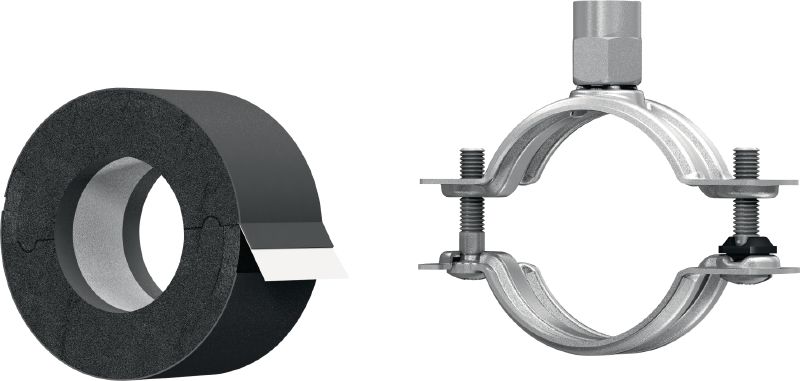

  • Designed for all insulation thicknesses from 13-19 mm with joint-to-pipe insulation material (elastomeric caoutchouc)
  • 360° mounting – the load capacity is achieved no matter how the core is rotated inside the pipe clamp
  • Adhesive foil can be released very easily, even when wearing gloves
  • Thermal insulation helps to prevent condensation on the surface and vapor-retardant foil helps to prevent condensation on the pipe
  • Compensation feature helps to prevent buckling and lifting of the outer foil when closing the pipe clamp

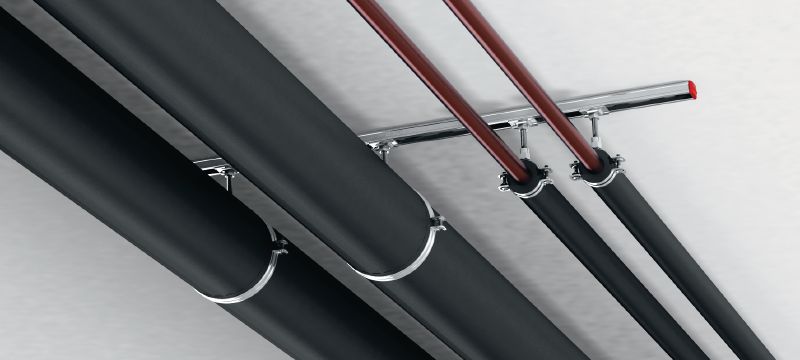

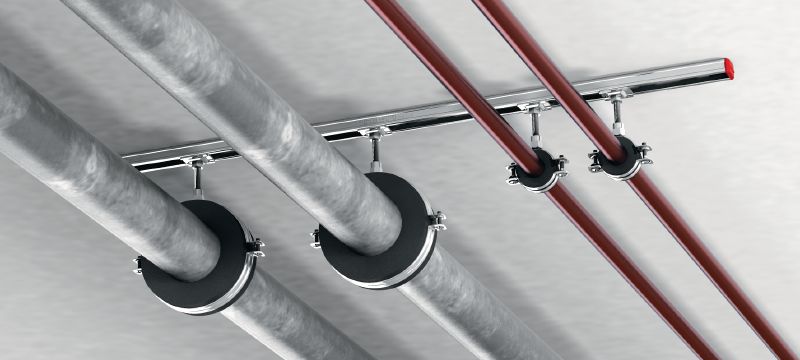

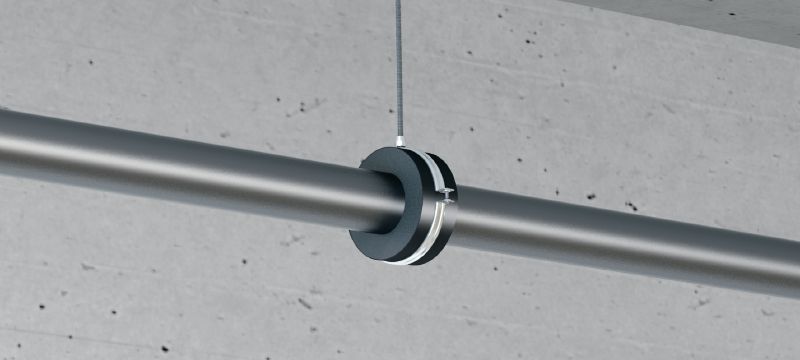

Applications

  • Fastening cold water and chilled water pipes up to 219 mm diameter
  • Suitable for application temperatures from 4-70°C
