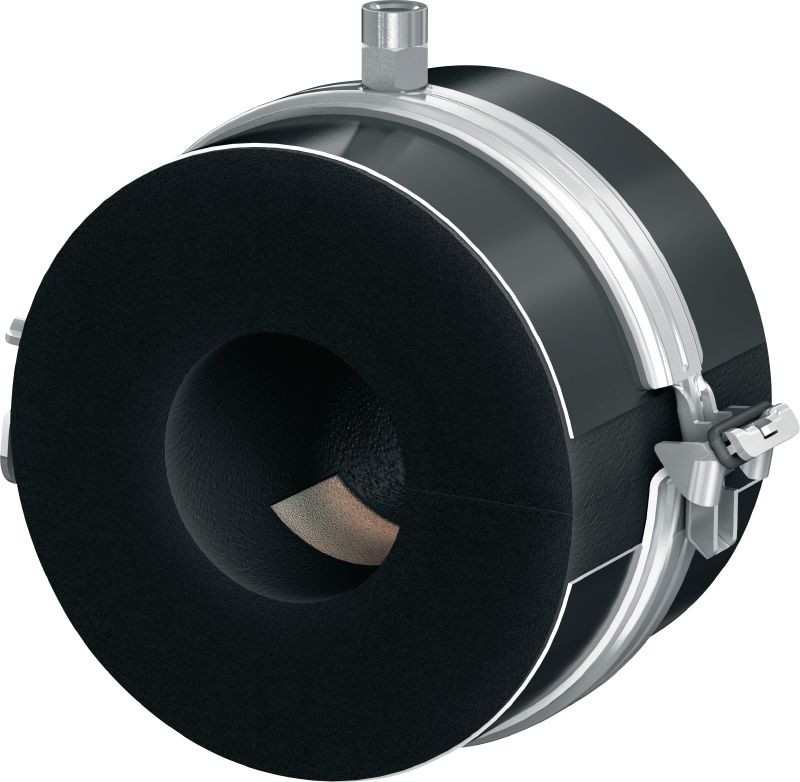

MIP-T Refrigeration pipe clamp (thick insulated)

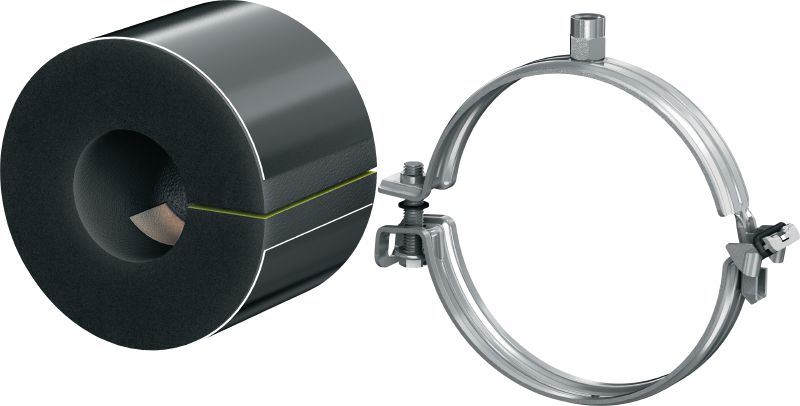

MIP-T refrigeration pipe clamp components

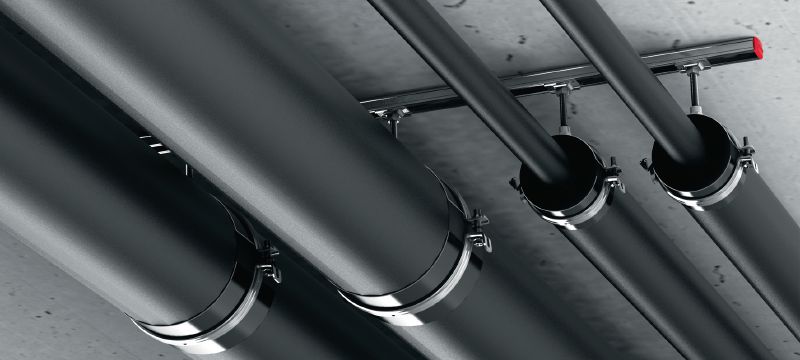

MIP refrigeration pipe clamp head rail application

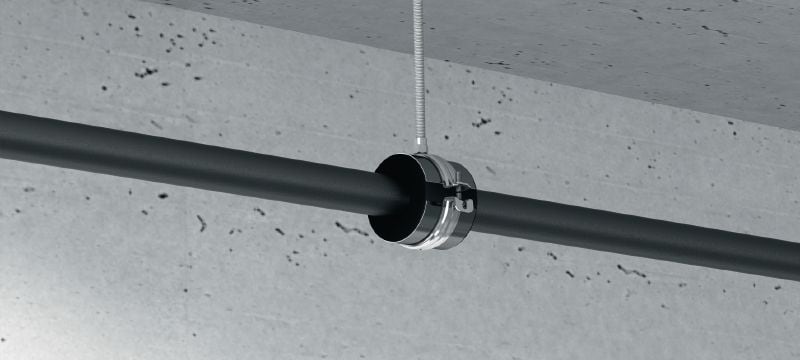

MIP refrigeration pipe clamp single pipe application

Galvanized pipe clamp for maximum productivity in refrigeration applications with an insulation thickness of 31-50 mm

Approvals: Fire class B2
Noise reduction: 20 dB (A)
Temperature resistance: -40 - 105 °C

ultimate

Choose options

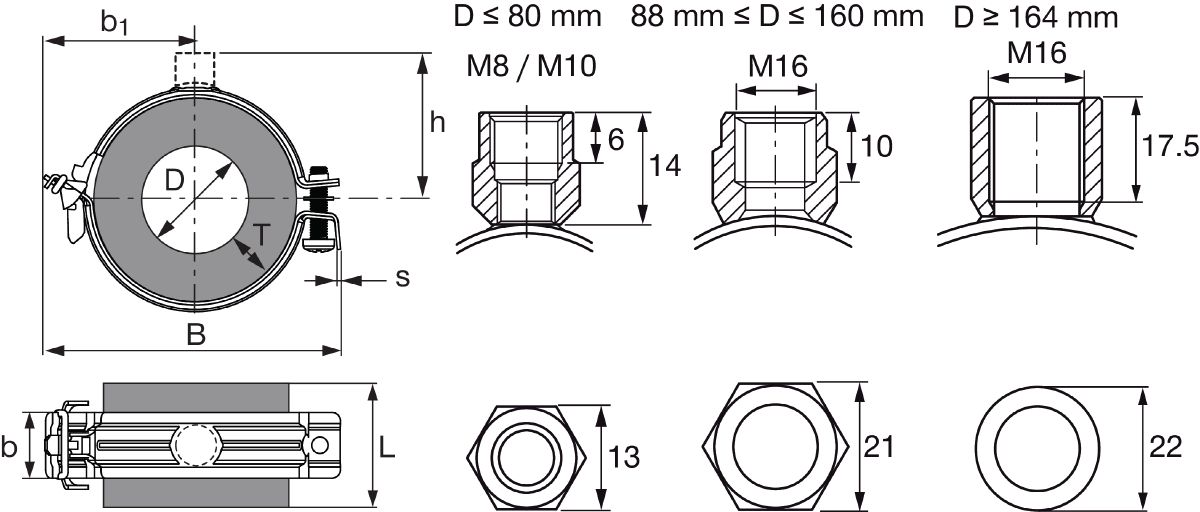

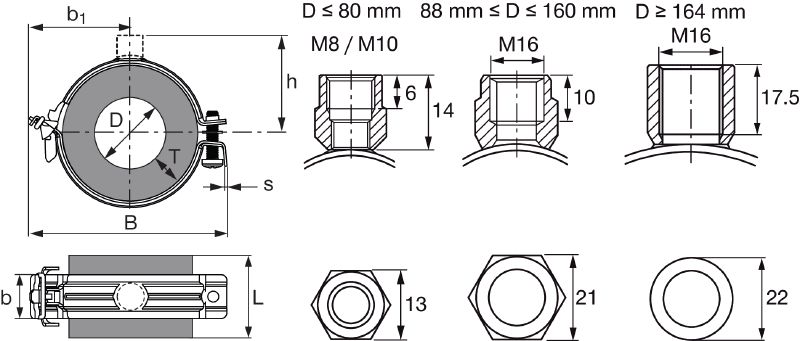

Clamping Range - D

56 - 59 mm
88 - 90 mm
101 - 109 mm
113 - 115 mm
132 - 141 mm
158 - 161 mm
164 - 169 mm
216 - 221 mm

Thread connection - M

M16
M8, M10

Nominal pipe size (imperial)

3 in
4 in
5 in
6 in

Pack size

2 pc
3 pc
4 pc
8 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 1,090.00 ILS

Technical Data

Approvals

Fire class B2

Noise reduction

20 dB (A)

Temperature resistance

-40 - 105 °C

Material composition

Closed-cell CFC-free polyurethane foam (PUR), flexible elastomer foam, outside painted aluminum bearing shells 0.8 mm thick

Surface finish

Indoor Coated - Electro galvanized

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Product Class

Ultimate

Diffusion Resistance

≥ 7000

Thermal conductivity (λ approx. value)

0.036 W/mK

Approx. Density

145 kg/m³

Additional product information

Tightening torque clamping screw M5: 1 Nm, M6: 2 Nm, M8: 3 Nm, M16: 20 Nm

Documents

Features & Applications

Features

Designed for standard insulation thicknesses (insulation material: elastomeric caoutchouc)
Continuous joint between refrigeration pipe clamp and pipe insulating material (elastomeric caoutchouc)
Thermally decoupled system with integrated vapor (diffusion) barrier to help prevent thermal short circuits
Assembly of the insulation core with a handle thanks to the self-adhesive closure
Three-stage quick closure with only one screw up to 80 mm; from 88 mm and larger two-screw closure

Applications

Mounting pipes up to 221 mm diameter in refrigeration and air conditioning applications
Applications where easy fitting of the insulating unit is required

For approval or certificate information, please see individual items.
