MIP-M Refrigeration pipe clamp (medium insulated)

Configurator
Technical Data
Documents
Features & Applications
Related Products

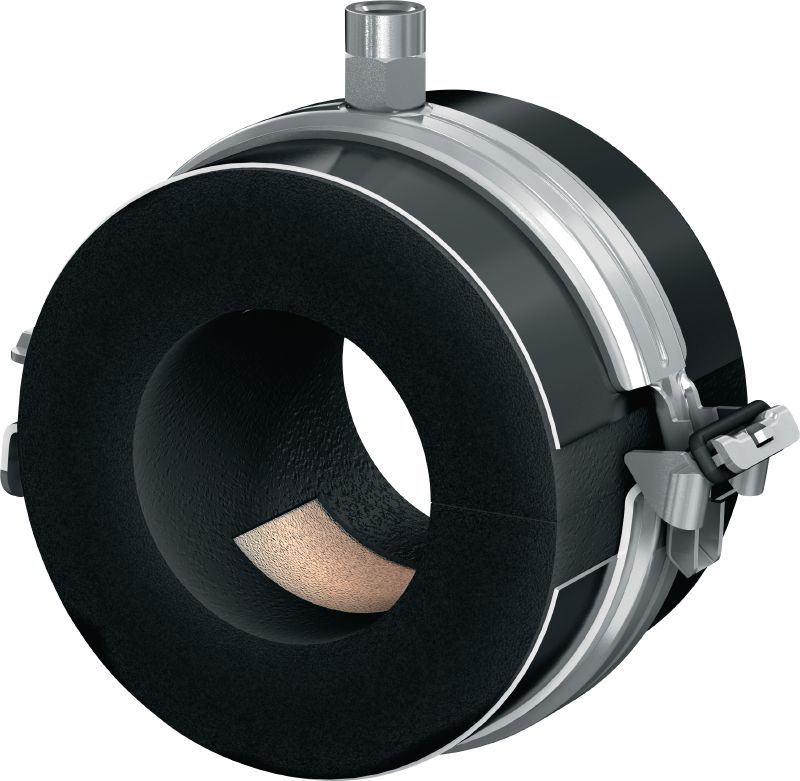

MIP-M refrigeration pipe clamp closed

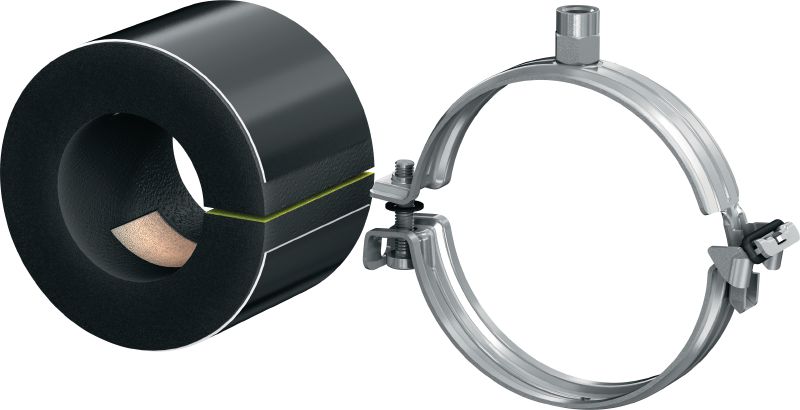

Refrigeration Pipe Clamp components
MIP refrigeration pipe clamp head rail application
MIP refrigeration pipe clamp single pipe application
Refrigeration Pipe Clamps

Galvanized pipe clamp for maximum productivity in refrigeration applications with an insulation thickness of 20-25 mm

  • Approvals: Fire class B2
  • Noise reduction: 21 dB (A)
  • Temperature resistance: -40 - 105 °C
ultimate

Choose options

Thickness - T
  • 25 mm
Clamping Range - D
  • 130 - 134 mm
  • 138 - 141 mm
  • 158 - 161 mm
  • 164 - 169 mm
  • 216 - 219 mm
  • 267 - 275 mm
  • 321 - 328 mm
  • 352 - 358 mm
  • 403 - 410 mm
Thread connection - M
  • M16
Nominal pipe size (imperial)
  • 5 in
  • 6 in
Pack size
  • 1 pc
  • 3 pc
  • 6 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 896.00 ILS

Technical Data

Details
Technical illustrations
Approvals
Fire class B2
Noise reduction
21 dB (A)
Temperature resistance
-40 - 105 °C
Material composition
Closed-cell CFC-free polyurethane foam (PUR), flexible elastomer foam, outside painted aluminum bearing shells 0.8 mm thick
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product Class
Ultimate
Diffusion Resistance
≥ 10000
Thermal conductivity (λ approx. value)
0.036 W/mK
Approx. Density
145 kg/m³
Additional product information
Tightening torque clamping screw M5: 1 Nm, M6: 2 Nm, M8: 3 Nm, M16: 20 Nm

Documents

Documentation
Approval document
Sustainability Documentation
Operating Instruction
pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Designed for standard insulation thicknesses (insulation material: elastomeric caoutchouc)
  • Continuous joint between refrigeration pipe clamp and pipe insulating material (elastomeric caoutchouc)
  • Thermally decoupled system with integrated vapor (diffusion) barrier to help prevent thermal short circuits
  • Assembly of the insulation core with a handle thanks to the self-adhesive closure
  • Three-stage quick closure with only one screw up to 115 mm; from 130 mm and larger two-screw closure

Applications

  • Mounting pipes up to 461 mm diameter in refrigeration and air conditioning applications
  • Applications where easy fitting of the insulating unit is required
  • Mounting pipes in refrigeration and air conditioning applications up to 410 mm

For approval or certificate information, please see individual items.
