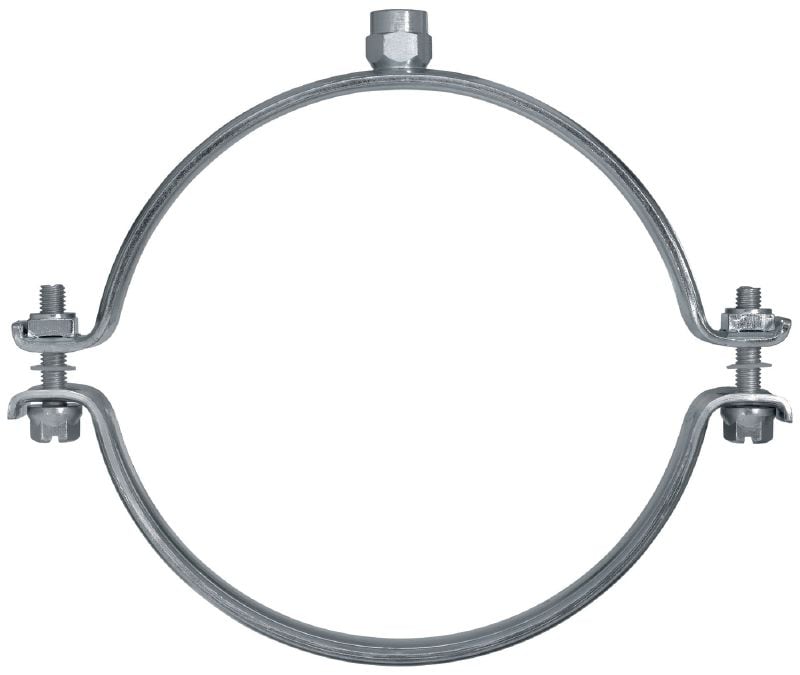

MP-MS Sprinkler pipe clamp
Galvanized sprinkler pipe clamp with VdS, FM and UL approvals for fire sprinkler applications
- Material composition: S235JRG - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanized
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Clamping Range - D
- 20 - 25 mm
- 25 - 30 mm
- 32 - 38 mm
- 40 - 45 mm
- 48 - 54 mm
- 54 - 57 mm
- 57 - 64 mm
- 68 - 72 mm
- 70 - 77 mm
- 82 - 90 mm
- 97 - 103 mm
- 108 - 114 mm
- 114 - 119 mm
- 122 - 127 mm
- 125 - 133 mm
- 132 - 137 mm
- 137 - 142 mm
- 150 - 156 mm
- 156 - 162 mm
- 162 - 168 mm
Thread connection - M
- M10
- M12
- M8, M10
Nominal pipe size (imperial)
- 1/2 in
- 3/4 in
- 1 in
- 1-1/4 in
- 1-1/2 in
- 2 in
- 2-1/2 in
- 3 in
- 4 in
- 5 in
- 6 in
Pack size
- 1 pc
- 5 pc
- 10 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 167.00 ILS
Technical Data
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- Swaged steel pipe clamp section for greater stiffness
- Clamping screws (slotted hexagon head, M8) pre-attached to pipe clamp to help prevent loss
- Sizes up to 2" equipped with M8/M10 flexible connection head
- Sizes larger than 68/72 mm with solid, welded-on nuts for better mounting of clamping screws
Applications

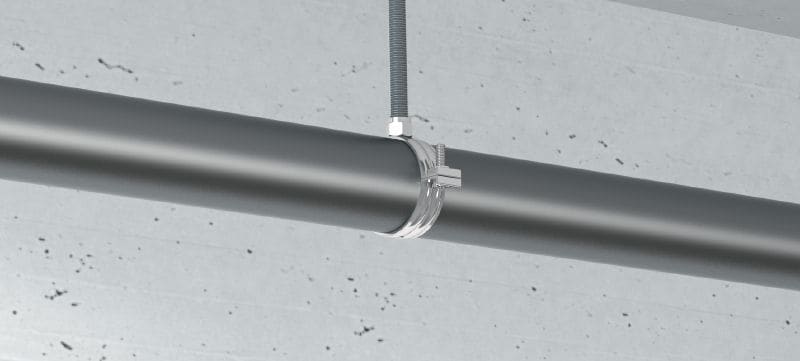

- Single-point fastening for fire sprinkler applications
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
