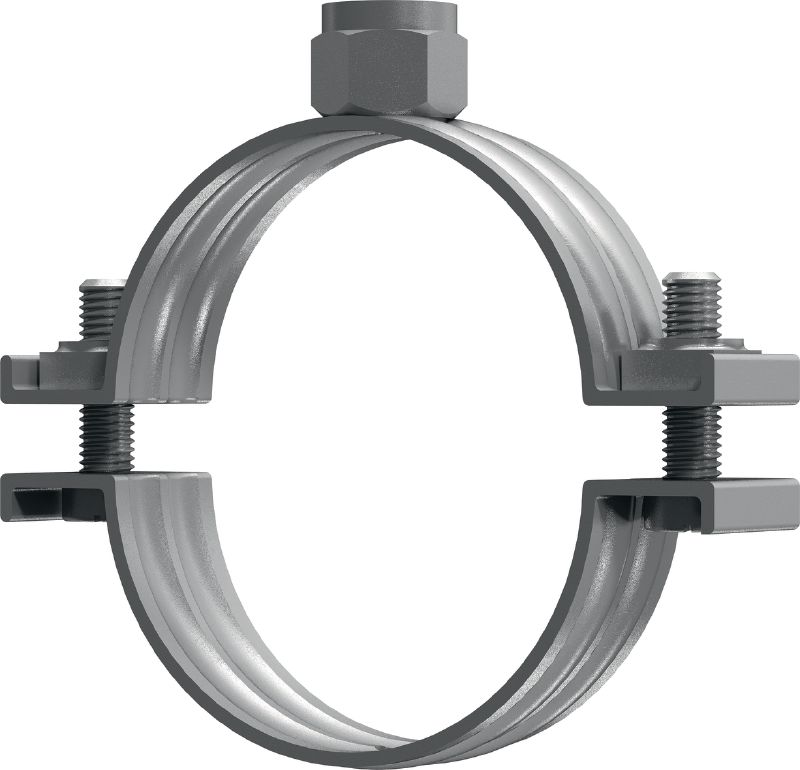

MP-M Heavy-duty pipe clamp

Galvanized pipe clamp without sound insulation for heavy-duty applications

Material composition: S235JRG - DIN EN 10025
Surface finish: Indoor Coated - Electro galvanized
Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

standard

Choose options

Clamping Range - D

32 - 38 mm
48 - 54 mm
57 - 64 mm
70 - 77 mm
82 - 90 mm
108 - 114 mm
137 - 142 mm
162 - 168 mm
175 - 180 mm
190 - 200 mm
217 - 224 mm

Thread connection - M

1/2 in
M16

Nominal pipe size (imperial)

1 in
1-1/2 in
2 in
2-1/2 in
3 in
4 in
5 in
6 in
8 in

Pack size

5 pc
10 pc
25 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 201.00 ILS

Technical Data

Material composition

S235JRG - DIN EN 10025

Surface finish

Indoor Coated - Electro galvanized

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Product Class

Standard

Documents

Features & Applications

Features

Solid, welded nuts for closing screws (diameter 68/72 mm and above)
Pre-assembled non-slip rubber profile
Profiled clamp band for higher rigidity

Applications

Heavy-duty pipe installations up to 224 mm
Installing industrial pipes
Mounting process and control lines
Heavy-duty plumbing and heating applications
Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
