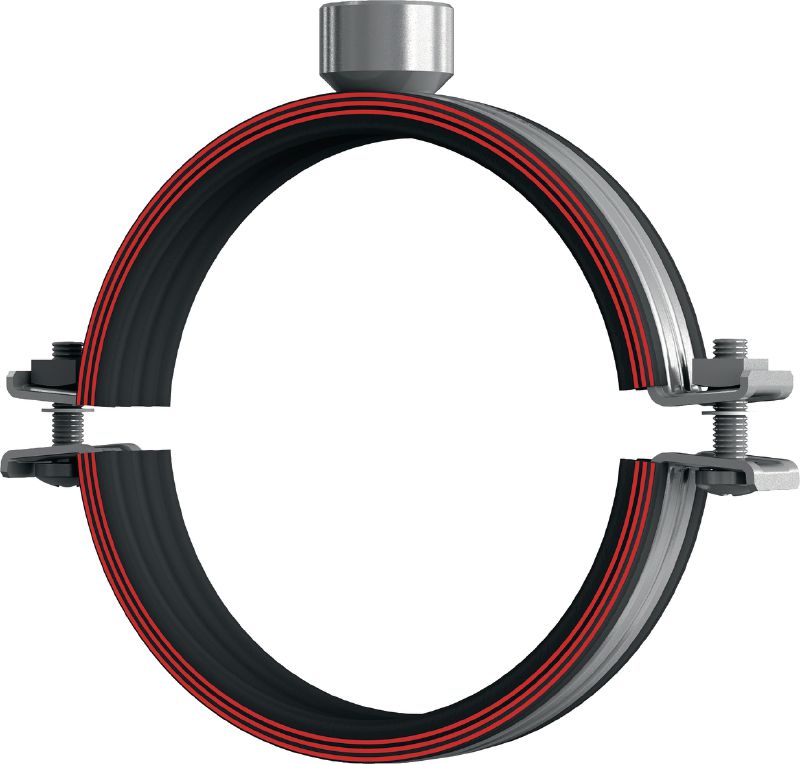

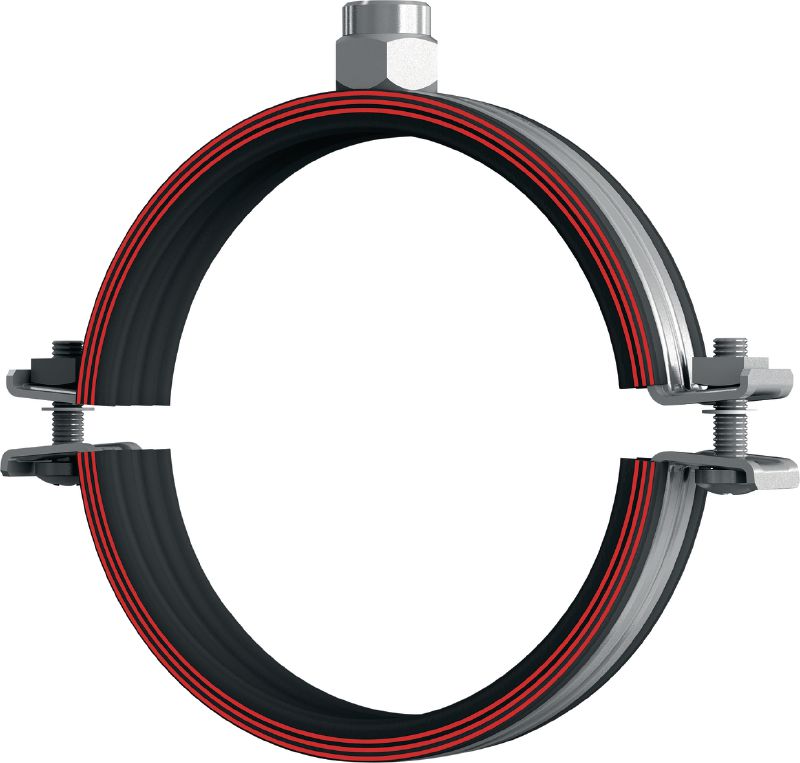

MP-MI Heavy-duty pipe clamp
Galvanized pipe clamp with sound insulation for heavy-duty applications
- Noise reduction: 19 dB (A)
- Temperature resistance: -40 - 110 °C
- Material composition: S235JRG - DIN EN 10025
Choose options
Clamping Range - D
- 15 - 19 mm
- 20 - 25 mm
- 25 - 30 mm
- 32 - 38 mm
- 40 - 45 mm
- 48 - 54 mm
- 54 - 57 mm
- 57 - 64 mm
- 68 - 72 mm
- 70 - 77 mm
- 80 - 84 mm
- 82 - 90 mm
- 97 - 103 mm
- 108 - 114 mm
- 114 - 119 mm
- 122 - 127 mm
- 125 - 133 mm
- 132 - 137 mm
- 137 - 142 mm
- 150 - 156 mm
- 156 - 162 mm
- 162 - 168 mm
- 175 - 180 mm
- 190 - 200 mm
- 210 - 219 mm
- 217 - 224 mm
- 242 - 250 mm
Thread connection - M
- 1/2 in
- 3/4 in
- M10, M12
- M16
Nominal pipe size (imperial)
- 3/8 in
- 1/2 in
- 3/4 in
- 1 in
- 1-1/4 in
- 1-1/2 in
- 2 in
- 2-1/2 in
- 3 in
- 4 in
- 5 in
- 6 in
- 8 in
Pack size
- 5 pc
- 10 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 243.00 ILS
Technical Data
Noise reduction
19 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness Insulation Material
50° ±5° Shore A
Documents
Features & Applications
Features
- Solid, welded nuts for closing screws (diameter 68/72 mm and above)
- Pre-assembled non-slip rubber profile
- Profiled clamp band for higher rigidity
Applications

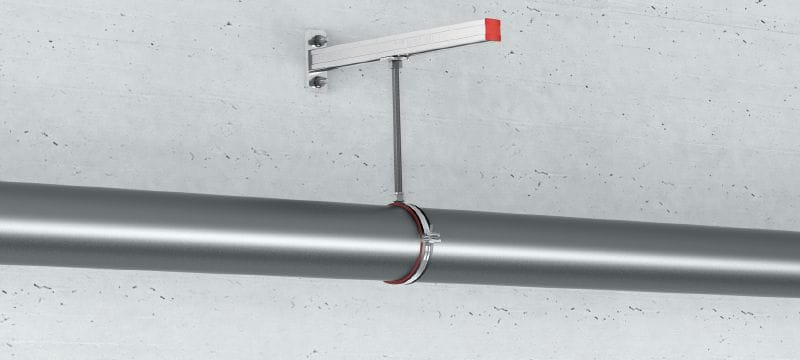

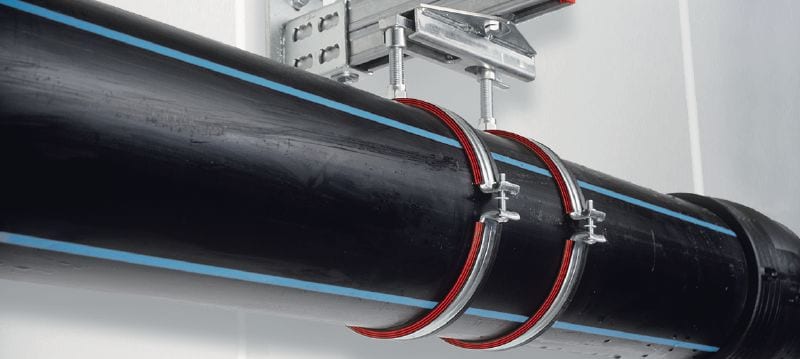

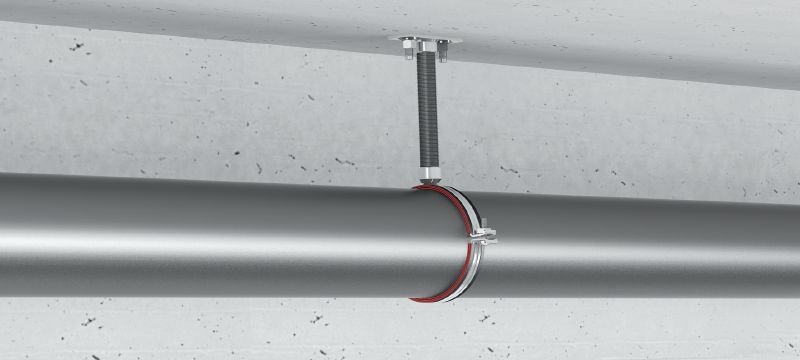

- Heavy-duty pipe installations up to 273 mm
- Installing industrial pipes
- Mounting process and control lines
- Heavy-duty plumbing and heating applications
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
