MQ-72 C-Channel profile

Configurator
Technical Data
Features & Applications
Related Products
MQ-72
14674.eps

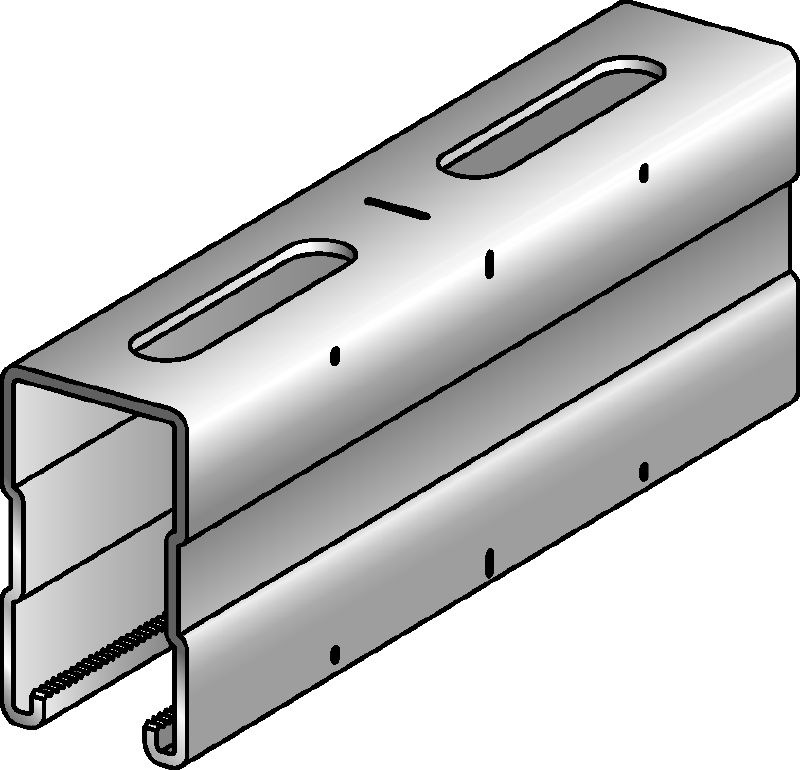

Galvanized C-Channel profile for medium-duty applications

  • Height: 72 mm
  • Material thickness: 2.75 mm
  • Material composition: S250GD - DIN EN 10346

Choose options

Length
  • 3 m
  • 6 m
Pack size
  • 3 m
  • 6 m
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 259.17 ILS

Technical Data

Details
Technical illustrations
Height
72 mm
Material thickness
2.75 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Indoor Coated - Pre-galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Optimized hole pattern – for more flexible attachment options
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation

For approval or certificate information, please see individual items.
