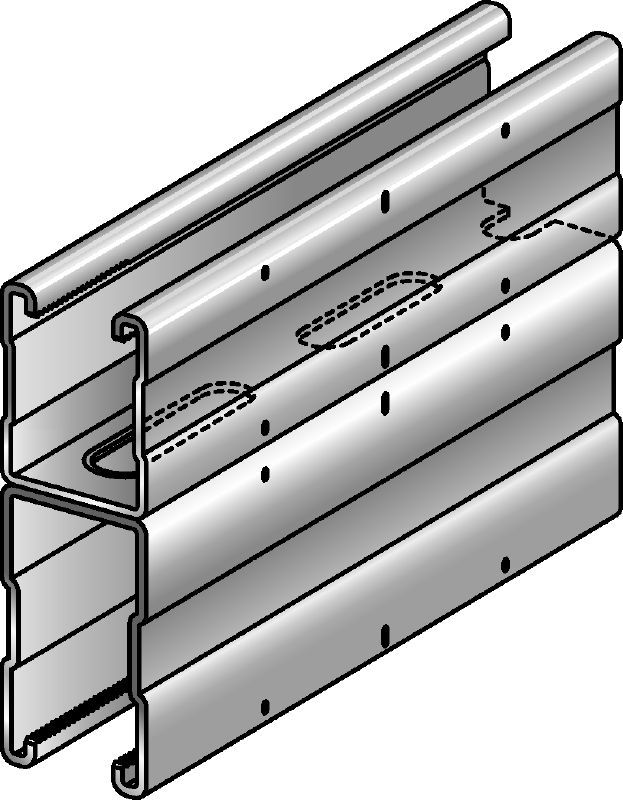

MQ-52-72 D-F C-Channel profile

Install. channel MQ-52-72 D-F 6m #304112

Configurator
Technical Data
Documents
Features & Applications
Related Products
MQ-52-72 D

Hot-dip galvanized (HDG) double C-Channel profile for medium/heavy-duty applications

  • Height: 124 mm
  • Material thickness: 2.5 mm, 2.75 mm
  • Material composition: S250GD - DIN EN 10346

Choose options

Length
  • 6 m
Pack size
  • 6 m
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
629.33 ILS
629.33 ILS / 1 m

Technical Data

Height
124 mm
Material thickness
2.5 mm, 2.75 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Weight
43560 g

Documents

pdf Load data MQ HDG channel, German, English [ 49.4 KB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Installation on both sides possible – for high application flexibility
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation
  • Recommended for use in moderately corrosive outdoor and indoor environments
