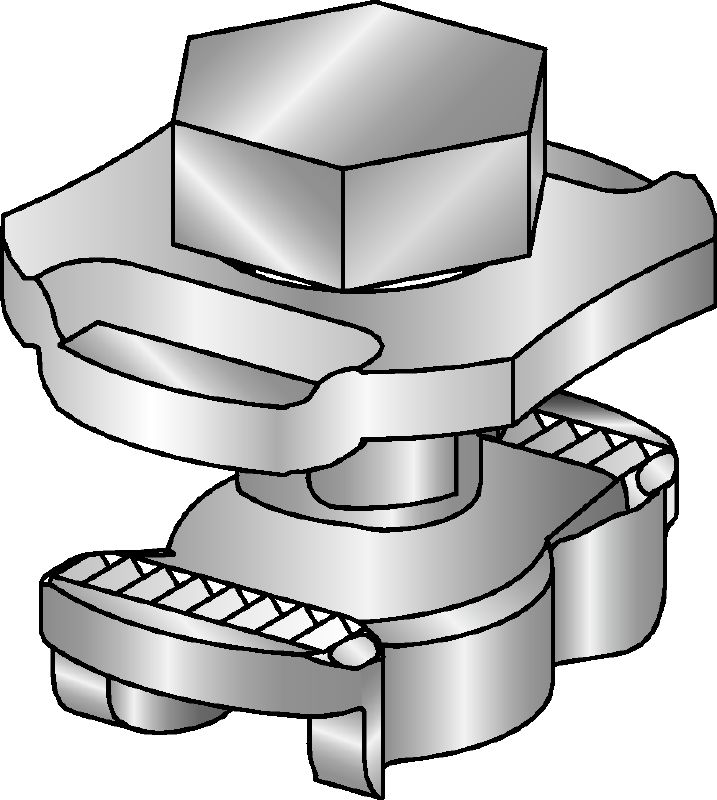

MQN-HDG plus
Hot-dip galvanized (HDG) channel connector for joining any elements with a butterfly opening
- Product Class: Premium
- Tightening torque: 40 Nm
- Material composition: Bolt: M10 grade 8.8 - DIN ISO 898, Nut: C4C - DIN EN 10263, Plate: DD11 - DIN EN 10111
premium
Choose options
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Product Class
Premium
Tightening torque
40 Nm
Material composition
Bolt: M10 grade 8.8 - DIN ISO 898, Nut: C4C - DIN EN 10263, Plate: DD11 - DIN EN 10111
Surface finish
Outdoor Coated - HDG Plus
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Wrench size
17 mm
Documents
pdf Corrosion handbook, English [ 9.4 MB ]
Features & Applications
Features
- Designed to be simple, compact and time-saving
- Universal – one connection element for all MQ strut channels
- Simple removal
- Holds securely once it has been pressed, turned and tightened correctly
- One-part fastener replaces a spring nut, bolt and washer for quick installation
Applications
- Connecting angles to strut channels
- Connection element for U-frame/crossbeam structures
- Connecting strut channels and structural elements
- Designed for long lifetime in temperate outdoor climates
- Recommended for use in moderately corrosive outdoor and indoor environments
For approval or certificate information, please see individual items.
