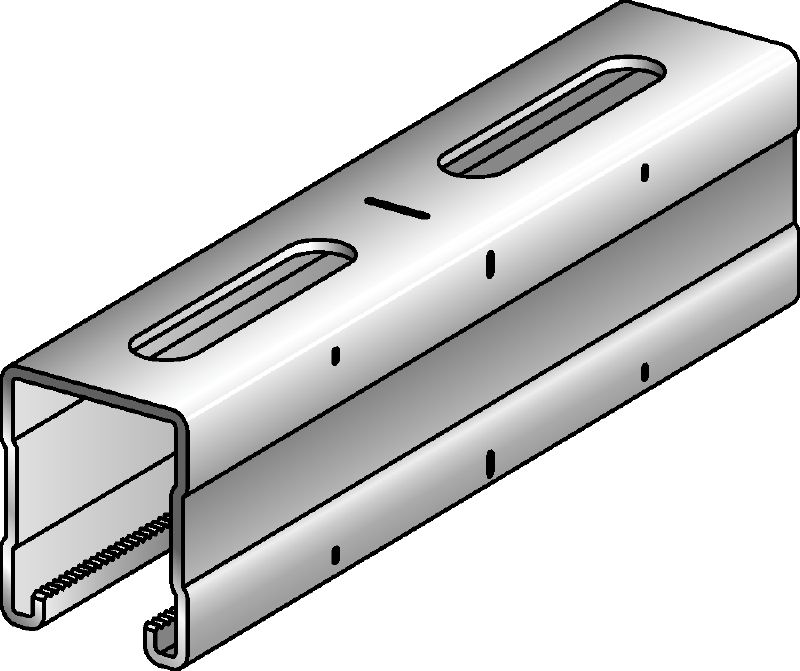

MQ-52-R C-Channel profile
Stainless steel (A4) C-Channel profile for medium-duty applications
- Height: 52 mm
- Material thickness: 2.5 mm
- Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Choose options
Length
- 3 m
- 6 m
Pack size
- 3 m
- 6 m
Quantity
Packs
Total Pieces
1
Discounted net
From 832.50 ILS
Technical Data
Height
52 mm
Material thickness
2.5 mm
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Documents
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Optimized hole pattern – for more flexible attachment options
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Versatile and flexible due to modular channel system
- Sound insulation elements available for all MQ installation channels
Applications
- Modular support systems for piping
- Modular support systems for air ducts and cable trays
- Modular support systems for 3D structures
- Wall-mounted installation
- Recommended for use in corrosive environments
For approval or certificate information, please see individual items.
