MQN-R Channel connector

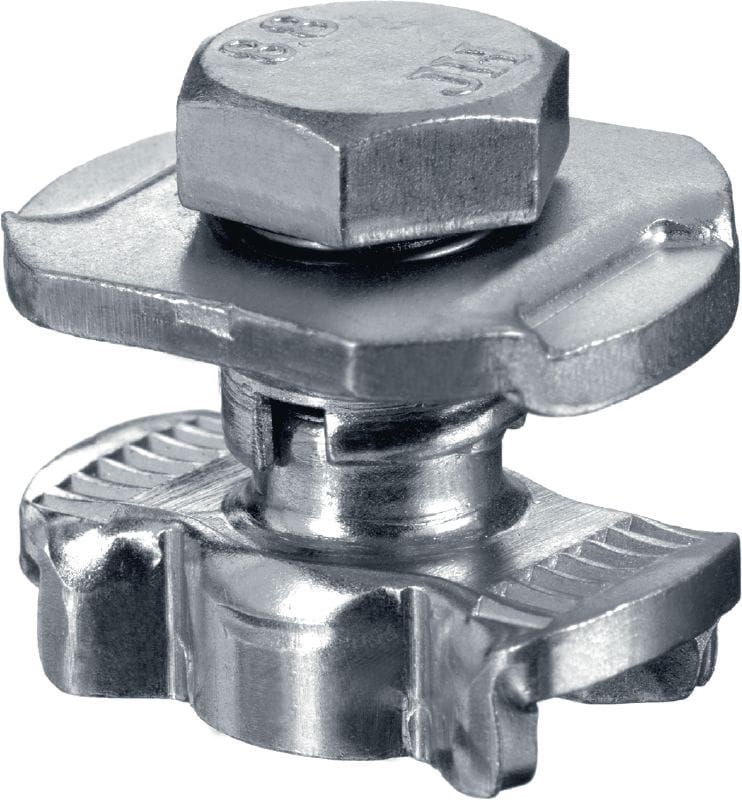

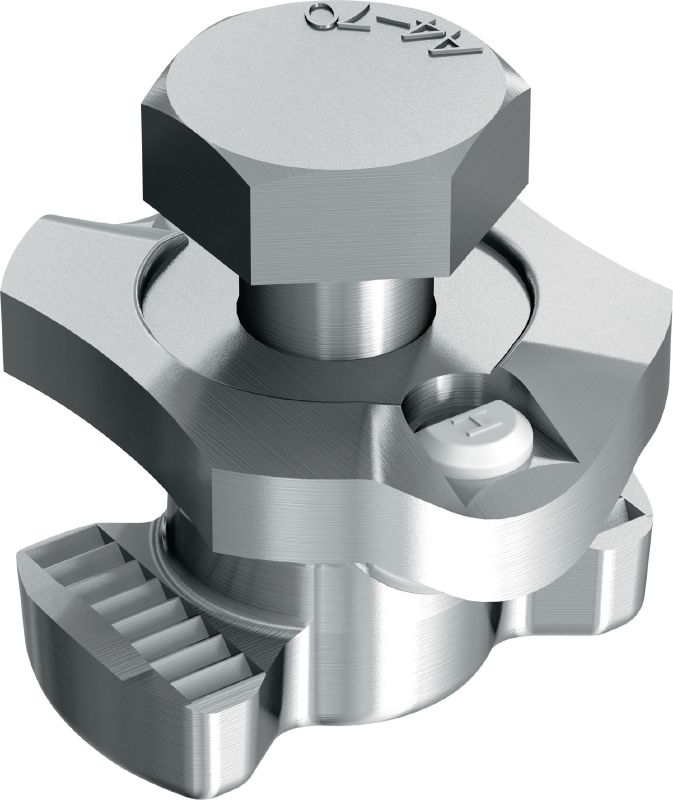

Channel connector MQN-R #304012
Stainless steel (A4) channel connector for joining any elements with a butterfly opening
- Tightening torque: 40 Nm
- Thread connection - M: M10
- Material composition: Screw: A4-70 - DIN ISO 3506-1, Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L
Choose options
Thread connection - M
- M10
Pack size
- 25 pc
Quantity
Pack
Total Pieces
25
Discounted net
1,966.00 ILS
78.64 ILS / 1 each
Technical Data
Tightening torque
40 Nm
Thread connection - M
M10
Material composition
Screw: A4-70 - DIN ISO 3506-1, Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
For use with
MQ-21-D-R, MQ-21-R, MQ-41D-R, MQ-41-R, MQ-52-R
Wrench size
17 mm
Weight
77 g
Documents
Features & Applications
Features
- Designed to be simple, compact and time-saving
- Universal – one connection element for all MQ strut channels
- Universal – one push button for all connectors and MQ installation channels
- Holds securely once it has been pressed, turned and tightened correctly
- Fewer parts and high flexibility
Applications
- Connecting stainless steel MQ brackets, angles and bases to MQ profiles
- Connection element for U-frame/crossbeam structures
- Connecting strut channels and structural elements
