MQ-21 D-RA2 C-Channel profile

Install. channel MQ-21 D-RA2 6m #304001

Configurator
Technical Data
Documents
Features & Applications
Related Products
li03540.tif

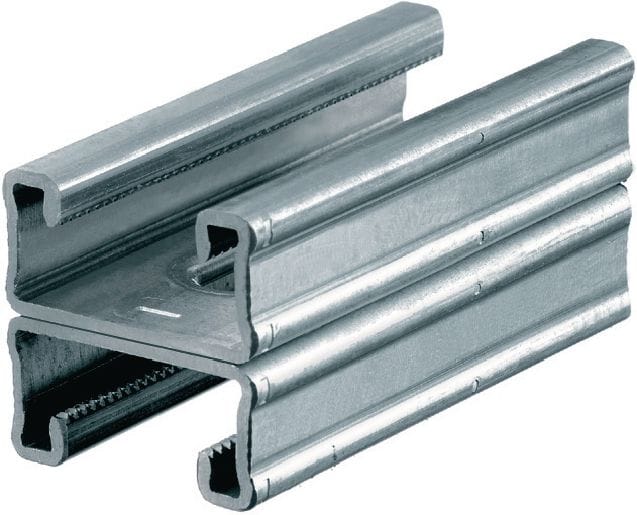

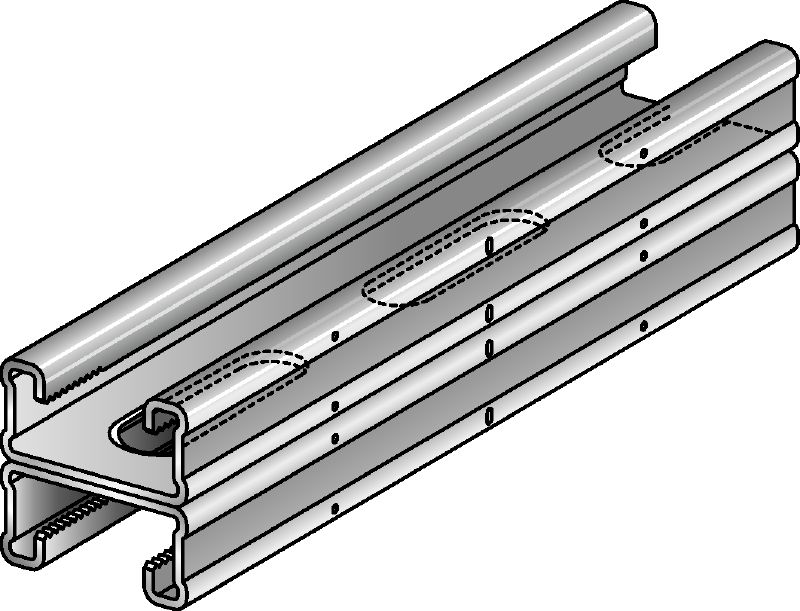

MQ-21 D

Stainless steel (A2) double C-Channel profile for medium-duty applications

  • Height: 41.2 mm
  • Material thickness: 2 mm
  • Material composition: Stainless steel, 1.4301 (A2) - EN 10088

Choose options

Length
  • 6 m
Pack size
  • 6 m
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
631.00 ILS
631.00 ILS / 1 m

Technical Data

Height
41.2 mm
Material thickness
2 mm
Material composition
Stainless steel, 1.4301 (A2) - EN 10088
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Weight
17520 g

Documents

pdf Load data MQ-R / RA2, English, German [ 50.2 KB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Installation on both sides possible – for high application flexibility
  • Pre-marked dimensions – for rapid installation, assembly and cutting
  • Versatile and flexible due to modular channel system
  • Sound insulation elements available for all MQ installation channels

Applications

  • Modular support systems for piping
  • Modular support systems for air ducts and cable trays
  • Modular support systems for 3D structures
  • Wall-mounted installation
  • Recommended for use in corrosive environments
