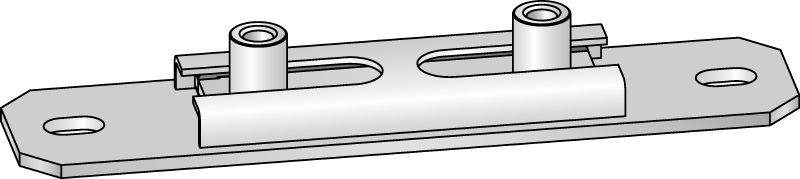

MSG-UK Double cross slide connector

Cross slide connector MSG-UK #337115

Galvanized double cross slide connector for light-duty heating and refrigeration applications

Thread connection - M: M8, M10
Height - H: 28 mm
Maximum load - F: 1.75 kN

Choose options

Thread connection - M

M8, M10

Height - H

28 mm

Maximum load - F

1.75 kN

Pack size

10 pc

Product options

Quantity

Pack

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

2,767.00 ILS

276.70 ILS / 1 each

Technical Data

Thread connection - M

M8, M10

Height - H

28 mm

Maximum load - F

1.75 kN

Material composition

S235JRG - DIN EN 10025

Surface finish

Indoor Coated - Electro galvanized

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Temperature resistance

-40 - 130 °C

Additional product information

2x hexagonal bolts M10x16 included in the package

Base material type

Concrete, Steel, Wood

Max. displacement path

54 mm

Coefficient of sliding friction

0.18

Weight

0.59 kg

Documents

Features & Applications

Features

Facilitates horizontal 4-way movement in combination with MSG 1,75 slide connectors
Load classes and capacities matched to Hilti pipe clamps
Smooth sliding movement on integrated plastic guide
2x hexagonal bolts M10 and 2x washers included in the package

Applications

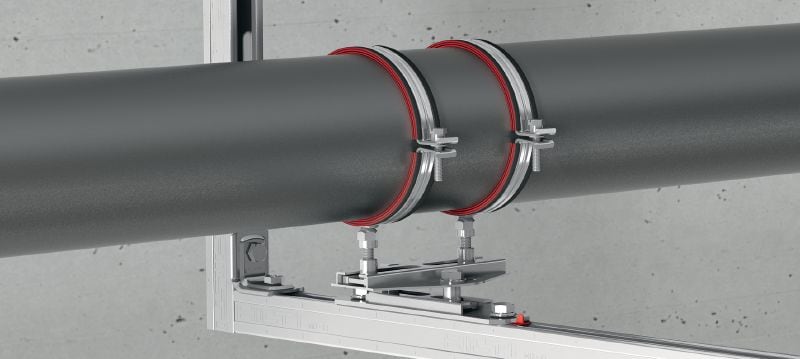

Mounting pipes subject to thermal elongation and contraction
For use in combination with MSG 1,75 slide connector for cross slide applications
Recommended for use in dry, interior environments
