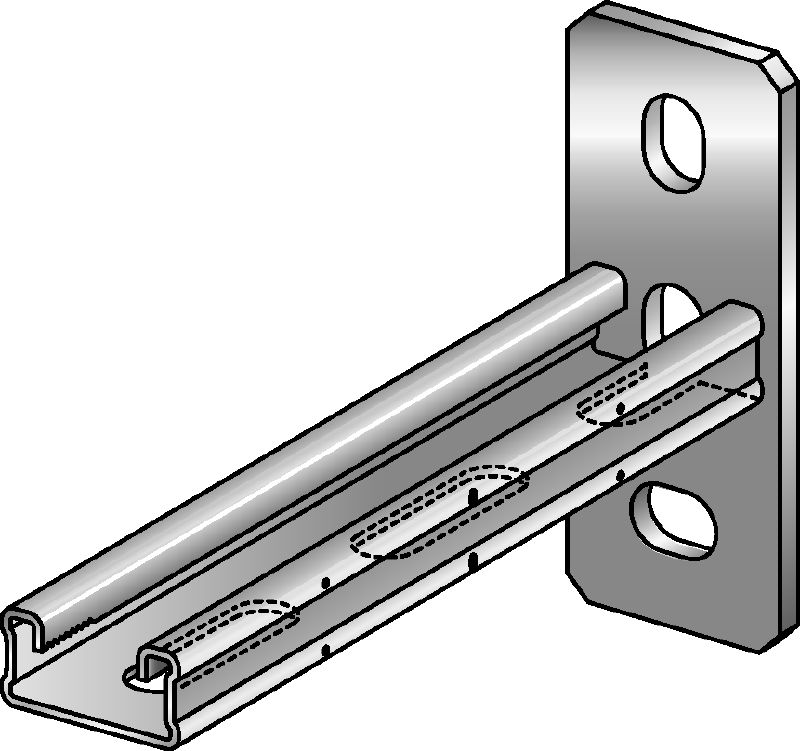

MQK-21-R Bracket

Stainless steel (A4) C-Channel bracket for medium-duty applications

Profile

Length - L

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 3,816.00 ILS

Material thickness

Channel: 2 mm, baseplate: 6 mm

Material composition

Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L

Surface finish

Outdoor Plus - Stainless Steel

Environmental conditions

Outdoor high pollution (C4 – high / C5)

Profile

MQ-21-R

C-profile with serrated edges – for higher pull-out and shear capacity
Engineered for higher shear load capacity and easier assembly
Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
Pre-marked dimensions – for quicker installation, assembly and measurement
Single channel, slotted

Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
Installations in industrial areas or environments with high levels of condensation
Installing cable trays, air ducts and pipe supports

For approval or certificate information, please see individual items.
