MQK-21 D Bracket

Configurator
Technical Data
Documents
Features & Applications
Related Products
IS_HNA_204_o.eps
14695.eps
IS_HNA_204.eps

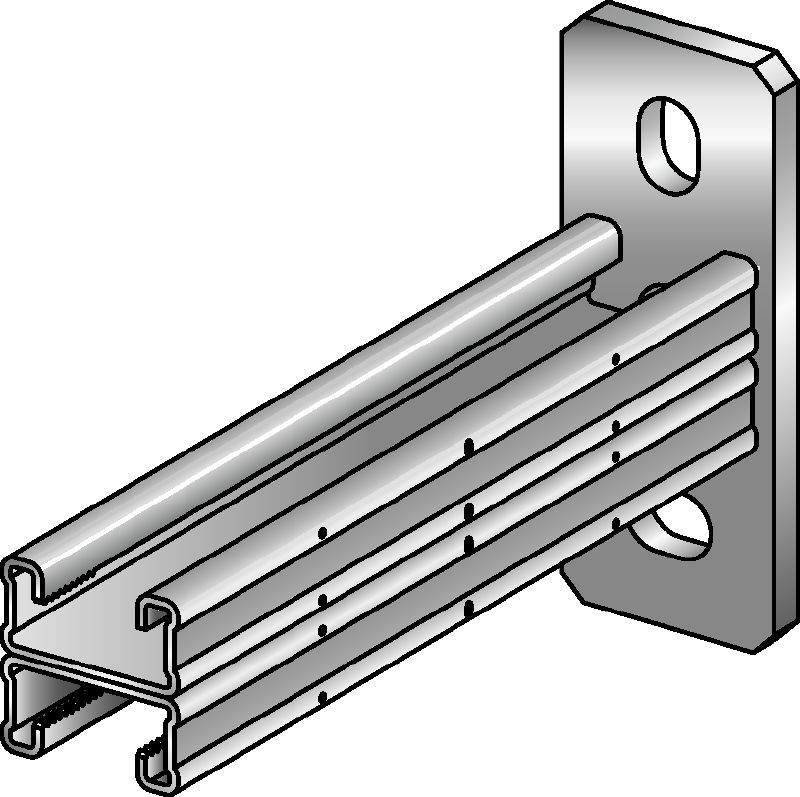

Galvanized C-Channel double-bracket for medium-duty applications

  • Material thickness: Channel: 2 mm, baseplate: 8 mm
  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanized

Choose options

Profile
  • MQ-21-D
Length - L
  • 300 mm
  • 450 mm
  • 600 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 1,774.00 ILS

Technical Data

Details
Technical illustrations
Material thickness
Channel: 2 mm, baseplate: 8 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Profile
MQ-21-D

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Engineered for higher shear load capacity and easier assembly
  • Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
  • Pre-marked dimensions – for quicker installation, assembly and measurement
  • Double channel, unslotted

Applications

  • Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
  • Installing cable trays, air ducts and pipe supports

For approval or certificate information, please see individual items.
