Multi line laser, Squaring, Leveling, Aligning, Drywall, Interior Finishing

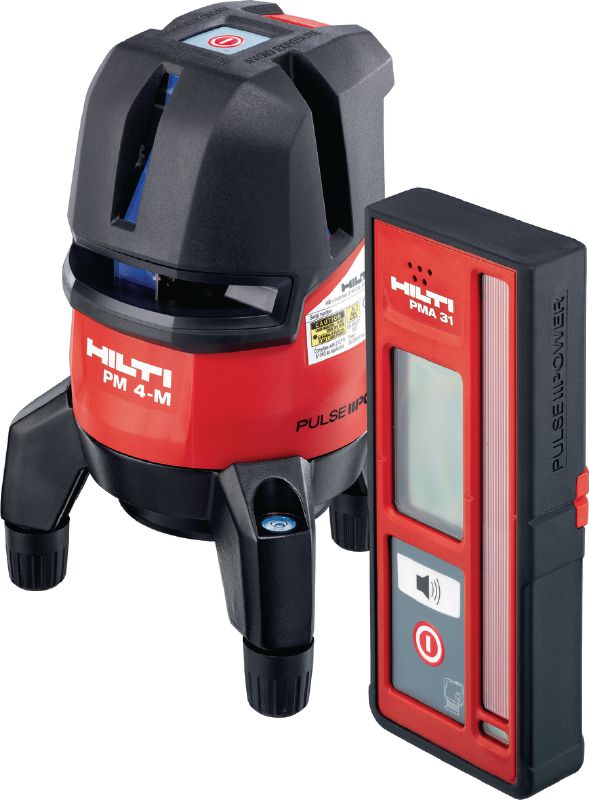

Multi line laser, Squaring, Leveling, Aligning, Drywall, Interior Finishing, receiver PMA 31
PM 4-M
PM 4-M

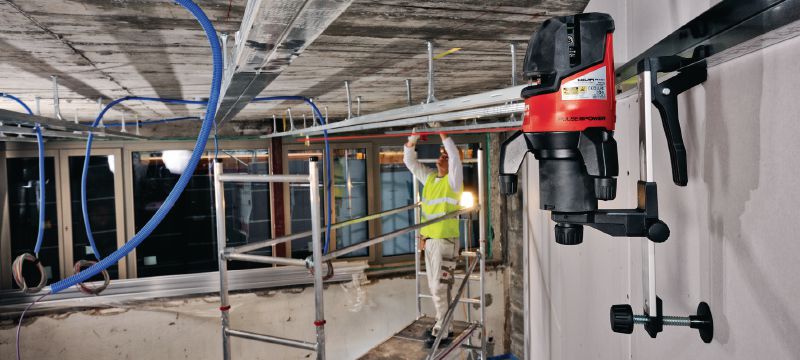

PM 4-M, PMA 79, Multi-line laser, Suspended Ceiling, Interior finishing, horizontal leveling, wall mount

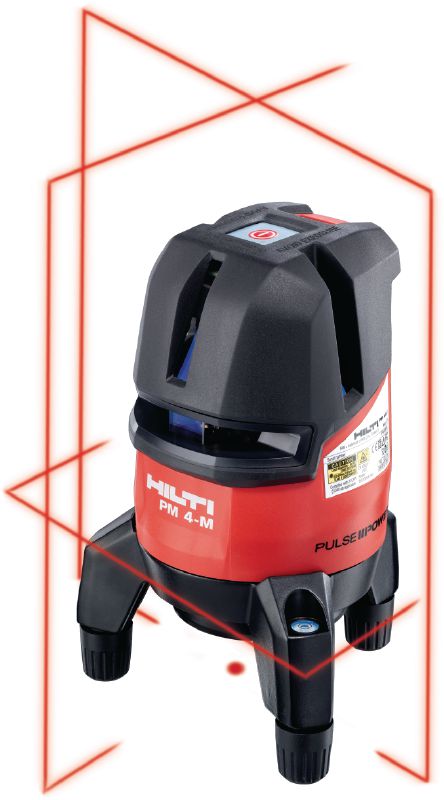

Multi-line laser with 3 lines and plumbing point laser with red beam

  • Accuracy: ±2 mm at 10 m
  • Max. operating distance (diameter): 20 m (lines), 100 m (lines, with receiver)
  • Maximum operating time: 8 h

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Accuracy
±2 mm at 10 m
Max. operating distance (diameter)
20 m (lines), 100 m (lines, with receiver) 1
Maximum operating time
8 h
Battery type
4 x 1.5 V (AA)
Self leveling range at room temperature
±3 °
Self leveling time
3 s
Horizontal fan angle
180 °
Vertical fan angle
140 °
IP protection class
IP 54 (EN 60529)
Laser type
Line and point
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Documents

pdf Operating Instruction PM 4-M (01), Arabic, Bulgarian, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Kazakh, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian [ 11.3 MB ]

Features & Applications

Features

  • Multi-line laser for precise and fast aligning, leveling and squaring
  • Centric design allows one person layout
  • Fine adjustment dial for high-precision alignment
  • Out-of-level and low-battery alerts – help prevent mistakes and unexpected downtime
  • Laser class 2 – no special precautionary measures needed

Applications

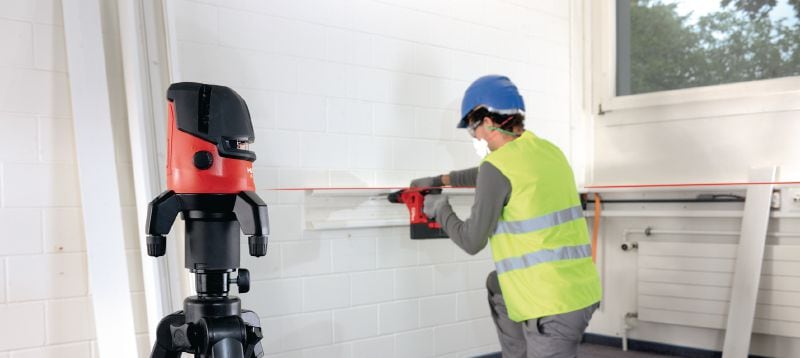

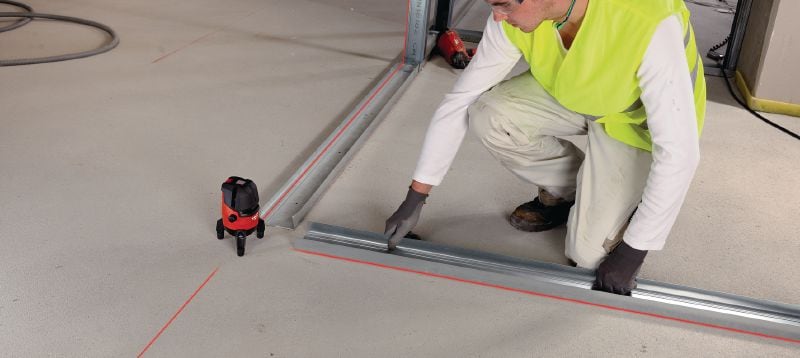

  • Setting out drywall tracks on floors, ceilings and walls for partitioning
  • Transferring reference heights
  • Vertical alignment of pipes
  • Leveling electric sockets, cable trays, radiators and pipe installations
  • Leveling and aligning doors and windows
