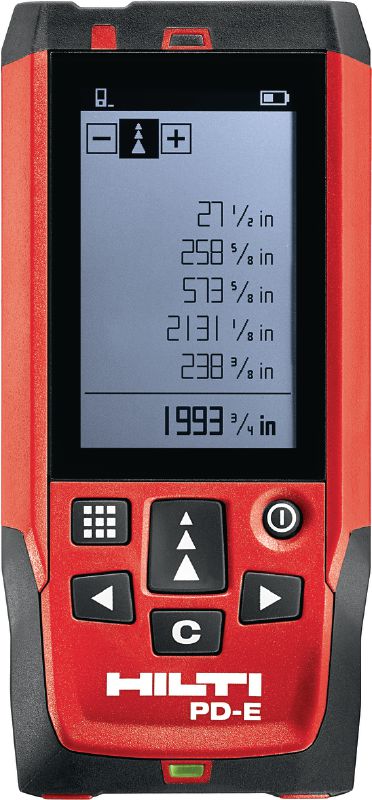

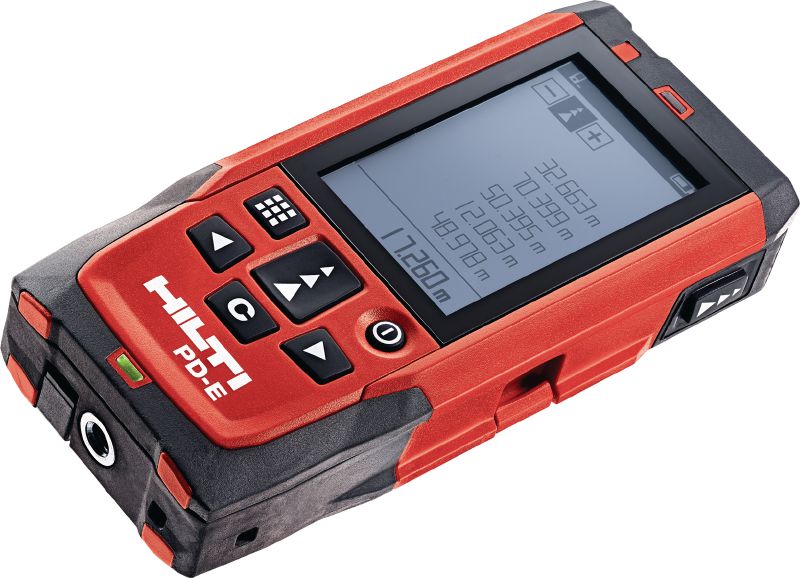

PD-E Laser meter

L059695_V1.tif
L059695_V3.tif
L059710_V2.tif
L059763_v1.tiff
L059771_v1.tiff
L059784_v1.tiff
L059773_v1.tiff
L059695_V1.tif
L059695_V3.tif
L059710_V2.tif
L059763_v1.tiff
L059771_v1.tiff
L059784_v1.tiff
L059773_v1.tiff
PD 5 / PD-E / PD-I - Laser range meters.

Outdoor laser meter with integrated viewfinder for measurements up to 200 m / 650 ft

  • Measuring range: 0 m - 200 m
  • Measurement accuracy: 1.0 mm
  • Measuring functions: Single and continuous measurement, Outdoor mode, Digital water level

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 3,700.00 ILS

Technical Data

Measuring range
0 m - 200 m
Measurement accuracy
1.0 mm
Measuring functions
Single and continuous measurement, Outdoor mode, Digital water level
Calculation functions

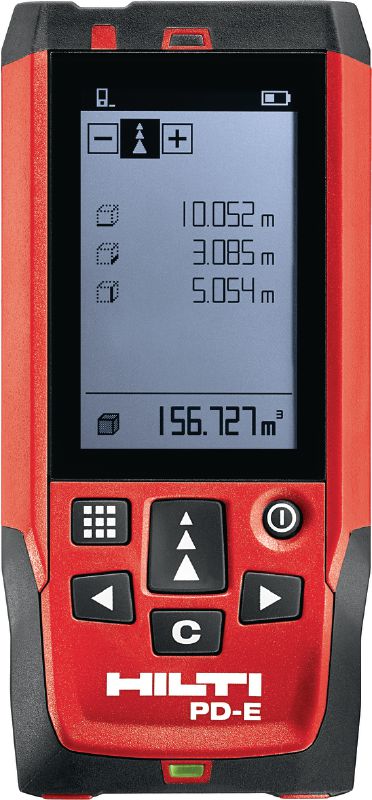

Addition, Subtraction, Area, Volume, Painters area, Setting out, Min/max, Timer, Offset, Memory (30x), Trapezoid (2x), Pythagoras (3x), Indirect measurement (4x)
Data memory
30 last measurements, Calculation results with graphics
Battery type
2 x 1.5 V (AAA)
Laser class
< 1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
IP protection class
IP 65 (EN 60529)
Interface
None

Documents

Features & Applications

Features

  • High-quality laser module enables long-range measurements even under the toughest outdoor conditions
  • Purpose-built outdoor display can be read even in very bright sunlight

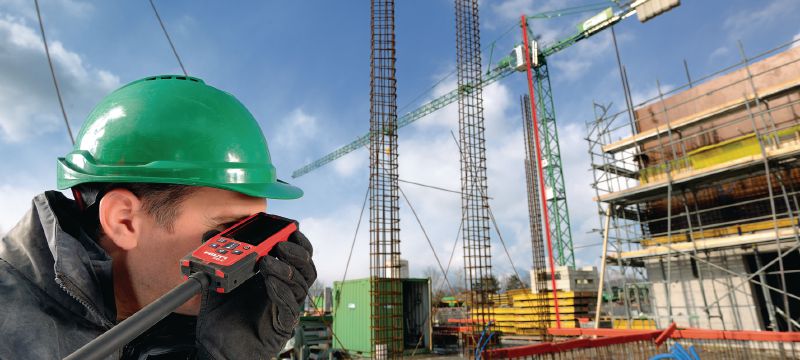

  • Built-in optical viewfinder for outdoor measurements
  • Rugged and durable to resist hard jobsite environments
  • Built-in 360° tilt sensor and smart estimation functions support measurements in challenging situations

Applications

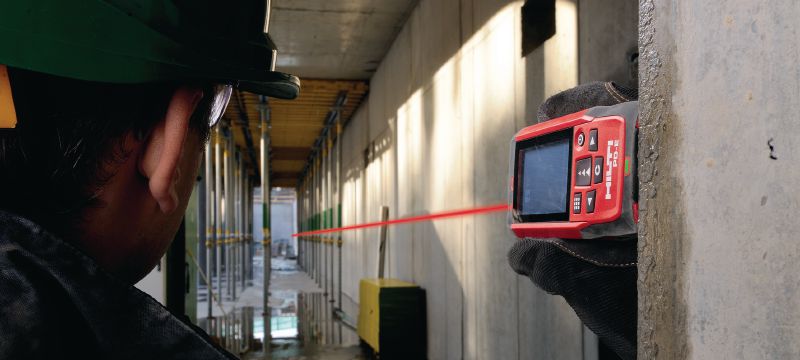

  • Measuring quickly and safely in places where access is difficult
  • Measuring surface areas for quotations in renovation work

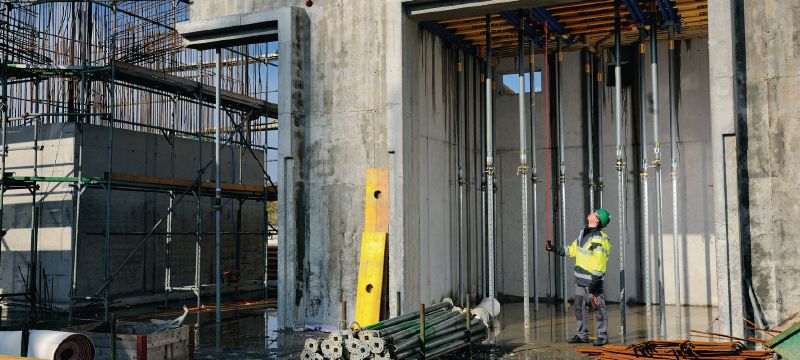

  • Determining the length or height of objects that cannot be directly accessed (remote measurement)

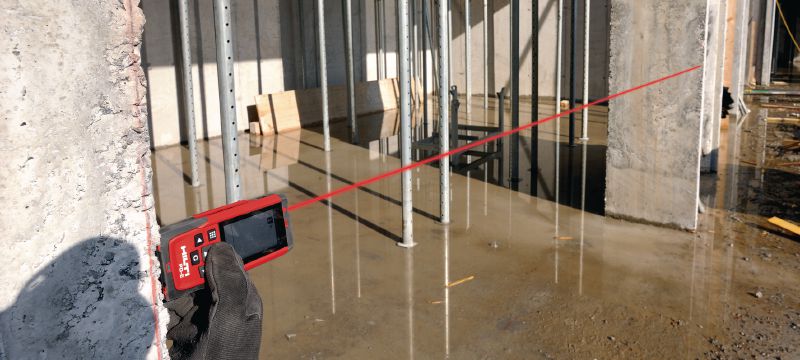

  • Measuring long distances using outdoor mode
  • Easy measurement of roof lengths using the trapezoid function

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Smooth on-site pick-up and delivery, thanks to our strong partnerships with trusted carriers
  • One click or call is all it takes – we do the rest
More information about Tool Services
Service icon for Bbundles

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Free verification of tool accuracy in accordance with manufacturer’s specifications.
More information about Fleet Management

LifeTime Services

  • After no-cost period repair costs are capped for as long as we service the tool
  • Pick-up and delivery service
More information about LifeTime Services
