CFS-NVB E120 cavity barrier (non-ventilated)

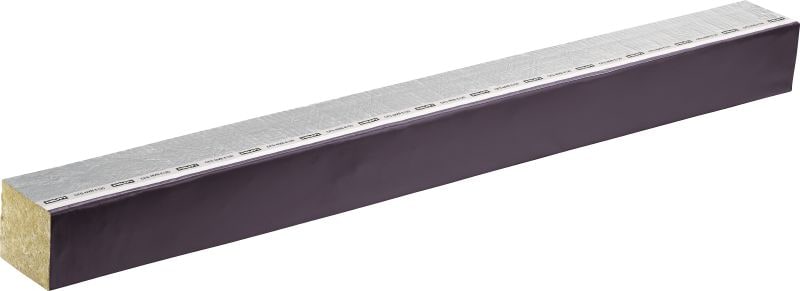

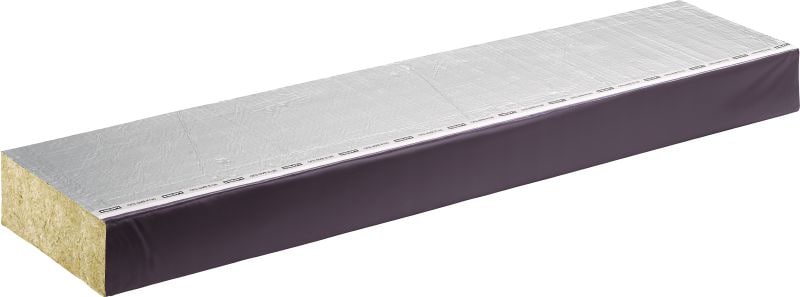

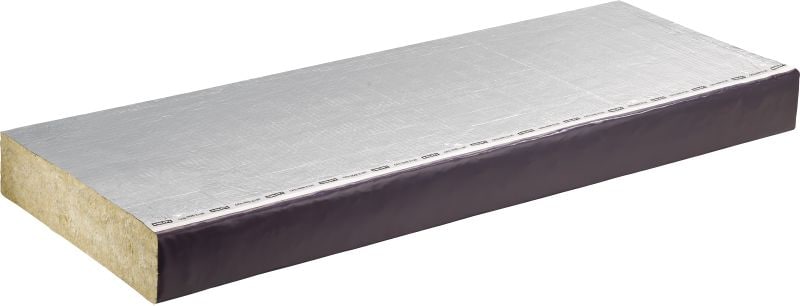

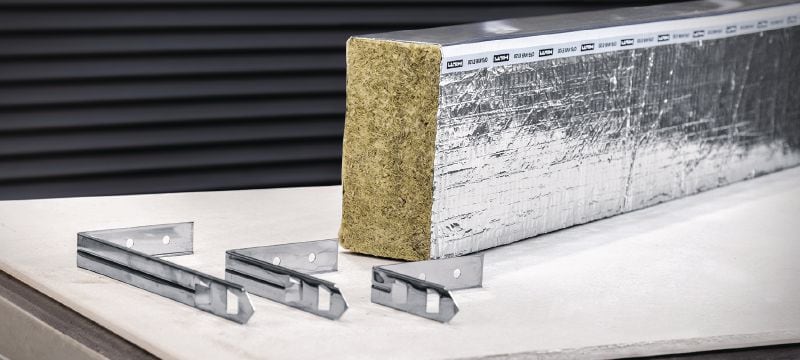

Still life picture of CFS-NVB E120 cavity barrier
Still life picture of CFS-NVB E120 cavity barrier
Still life picture of CFS-NVB E120 cavity barrier

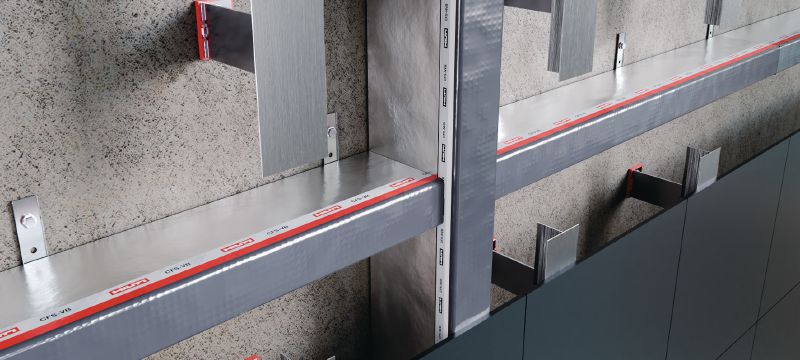

Cropped image of non ventilated barrier with brackets CFS-NVB

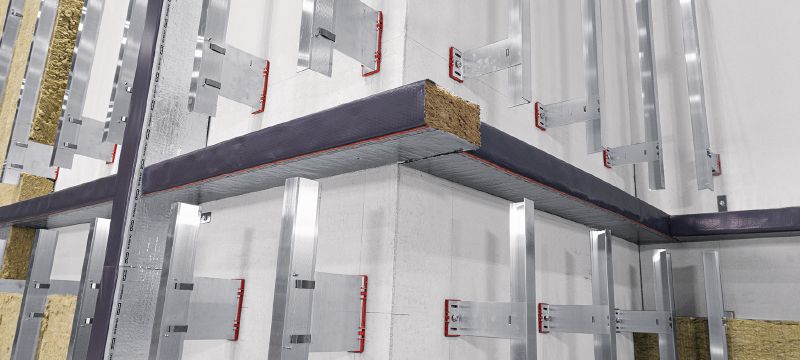

Cropped image of ventilated and non-ventilated barriers intersecting each others CFS-VB / NVB

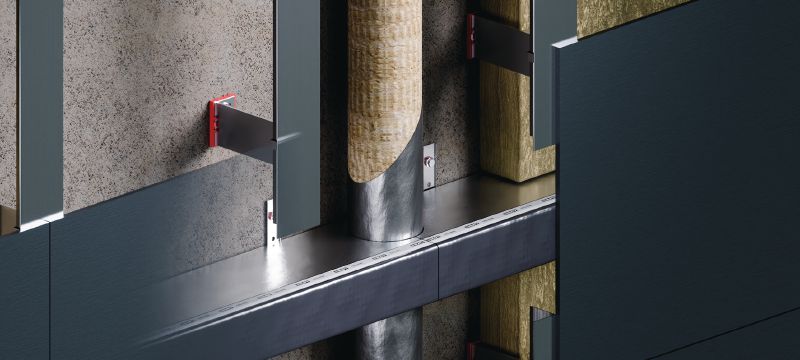

Cropped image of non-ventilated barrier installed horizontally and intersected by a metal pipe CFS-NVB

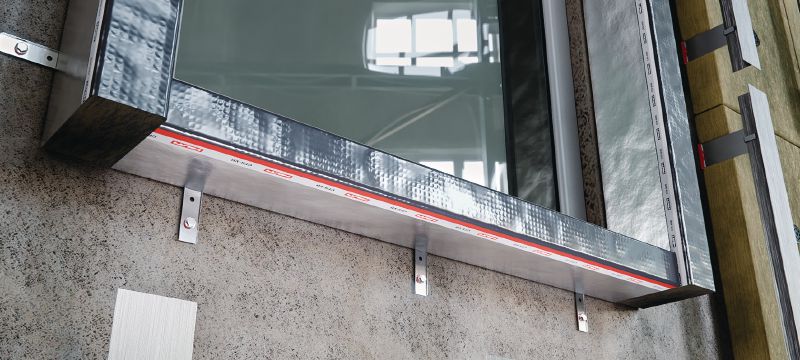

Cropped image of cavity barriers installed around window, with upside down brackets CFS-VB / NVB

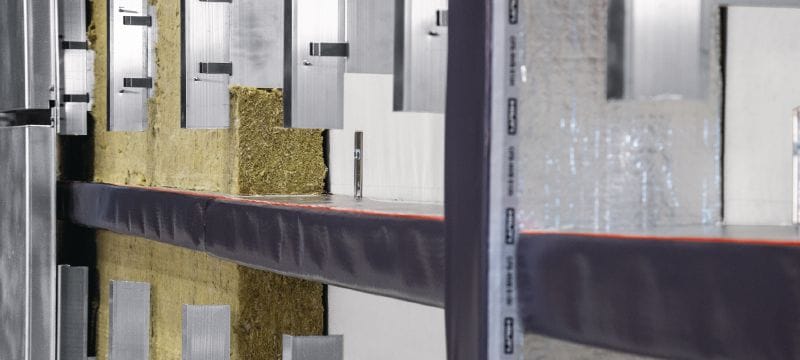

Cropped image of intersection of ventilated and non ventilated cavity barrier in rainscreen cladding CFS-VB / NVB
Cropped image of ventilated cavity barrier in outside corner CFS-VB
Still life picture of CFS-NVB E120 cavity barrier
Still life picture of CFS-NVB E120 cavity barrier
Still life picture of CFS-NVB E120 cavity barrier
Cropped image of non ventilated barrier with brackets CFS-NVB
Cropped image of ventilated and non-ventilated barriers intersecting each others CFS-VB / NVB
Cropped image of non-ventilated barrier installed horizontally and intersected by a metal pipe CFS-NVB
Cropped image of cavity barriers installed around window, with upside down brackets CFS-VB / NVB
Cropped image of intersection of ventilated and non ventilated cavity barrier in rainscreen cladding CFS-VB / NVB
Cropped image of ventilated cavity barrier in outside corner CFS-VB

Pre-formed fire cavity barrier for non-ventilated façade applications with 120 minutes of fire integrity

  • Length: 1200 mm
  • Height: 100 mm
  • Density: 70 kg/m³

Choose options

Cavity depth
  • 100 mm
  • 150 mm
  • 200 mm
  • 250 mm
  • 300 mm
  • 350 mm
  • 400 mm
Pack size
  • 4 pc
  • 8 pc
  • 16 pc
  • 24 pc
  • 32 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Length
1200 mm
Height
100 mm
Density
70 kg/m³
Application
Cladding, Ventilated façade
Base materials
Concrete, Masonry, SFS
Mold and mildew performance
Class 0 (ASTM G21, ISO 846 Method A)
Storage and transportation temperature range
-20 - 60 °C
Shelf life
Unlimited 1
  1. at 77°F/25°C and 50% relative humidity; from date of manufacture

Documents

Features & Applications

Features

  • Faster installations – new push-to-fit bracket system eliminates bending, cutting and trimming, so you can instal more barriers per day than previous solutions
  • Reduced rework – strengthened brackets help prevent barrier sagging for fewer adjustments
  • Extensive test evidence – tested and approved for a wide variety of Speciality applications
  • Full system solution – pair with Hilti façade substructures and anchors for an all-in-one solution for non-ventilated façades
  • Direct fastening tested – combine with our range of direct fastening solutions for even faster installations

Applications

  • Sealing building envelope cavities to better prevent the spread of fire via the façade
  • Firestopping ventilated rainscreen cladding vertically
  • Firestopping non-ventilated rainscreen cladding vertically and horizontally
  • Verified fire resistance for up to 120 minutes integrity and 60 minutes insulation according to European Standard (EN) 1366-4

For approval or certificate information, please see individual items.
