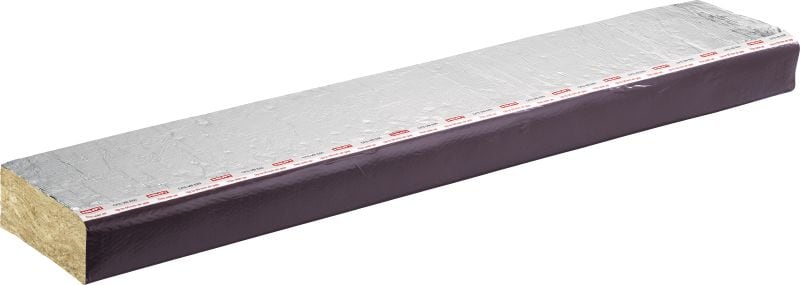

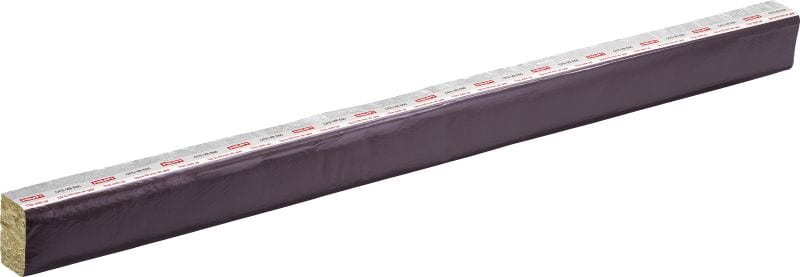

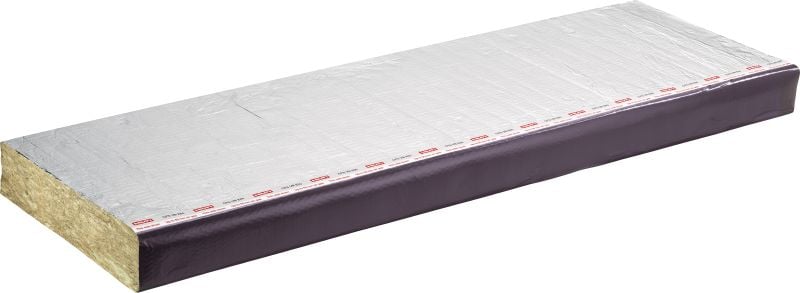

CFS-VB E60 cavity barrier 50mm air gap

Pre-formed fire cavity barrier for rainscreen cladding with 60 minutes of fire integrity and air gaps up to 50mm

No products available

Please Contact us to find a solution.

Technical Data

Length

1200 mm

Height

80 mm

Density

80 kg/m³

Application

Cladding, Ventilated façade

Base materials

Concrete, Masonry, SFS

Mold and mildew performance

Class 0 (ASTM G21, ISO 846 Method A)

Storage and transportation temperature range

-20 - 60 °C

Shelf life

Unlimited ¹

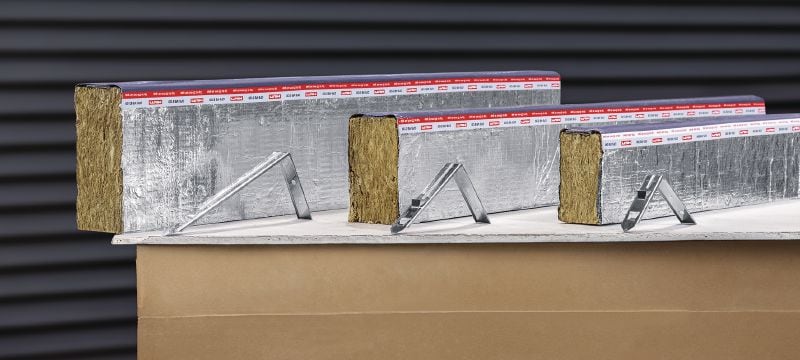

Faster installations – new push-to-fit bracket system eliminates bending, cutting and trimming, so you can instal up to 40% faster than standard brackets
Reduced rework – strengthened brackets help prevent barrier sagging for fewer adjustments
Extensive test evidence – tested and approved for a wide variety of Speciality applications
Full system solution – pair with Hilti façade substructures and anchors for an all-in-one solution for rainscreen cladding
Direct fastening tested – combine with our range of direct fastening solutions for even faster installations

Sealing building envelope cavities to better prevent the spread of fire via the façade
Firestopping ventilated rainscreen cladding while leaving air gaps up to 50 mm for greater installation tolerance
Verified fire resistance for 60 minutes integrity and up to 30 minutes insulation according to ASFP TGD19

For approval or certificate information, please see individual items.
