S-DS 06 Z Sharp-point metal framing screws

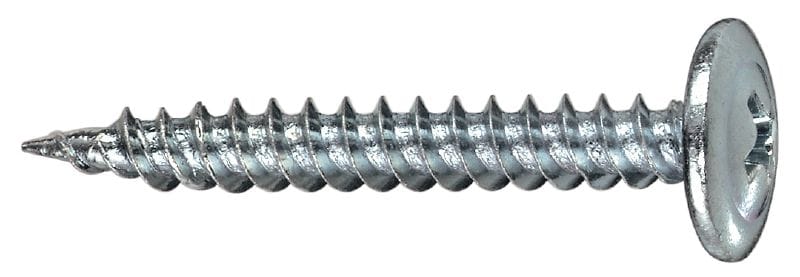

Drywall screw S-DS06Z 4,2x13 #2007738

Configurator
Technical Data
Documents
Features & Applications
Related Products
Drywall Screw, Framing
L029562.tiff

Interior metal framing screw (zinc-plated) for fastening stud to track

  • Screw head type: Wafer head
  • Screw drive/recess type: PH #2
  • Collated: No
standard

Choose options

Length
  • 13 mm
Pack size
  • 1000 pc
 Product options
Quantity
Pack
Total Pieces
1000
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
128.00 ILS
0.13 ILS
/
1 each

Technical Data

Screw head type
Wafer head
Screw drive/recess type
PH #2
Collated
No
Screw diameter d
4.2 mm
Length
13 mm
Drilling capacity - max
0.88 mm
Drilling capacity DC - min
0.6 mm
Drilling capacity - max (ga)
20 ga
Product Class
Standard
Drilling capacity - min (ga)
25 ga
Environmental Conditions
Dry indoor

Documents

Approval document
Sustainability Documentation
pdf Technical Data Sheet Drywall Screws, English [ 136.4 KB ]

Features & Applications

Features

  • Engineered for high productivity with virtually no waste – CE-approved and EN 14566-tested for quality and consistency
  • Easy to drive due to excellent drilling capability
  • Low contact pressure – for more comfortable, less tiring screwdriving
  • Hilti has full control of the manufacturing process – delivering reliable, consistent quality
  • Precisely matched to Hilti drivers and bits – helping to achieve high-quality fastenings every time

Applications

  • Fastening wire lath to metal substructures (max. combined thickness 0.88 mm)

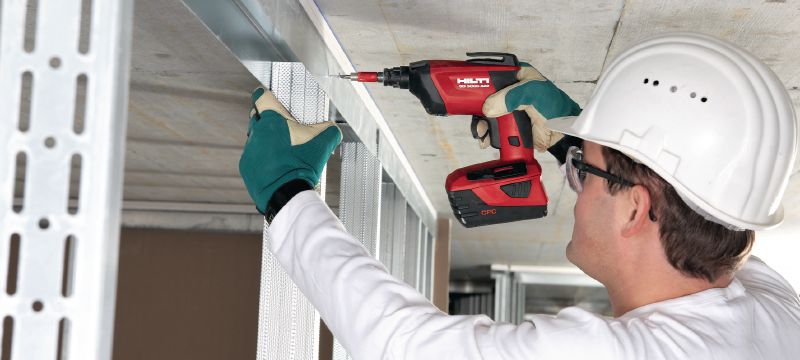

  • Fastening metal stud to metal track (max. combined thickness 0.88 mm)
  • Fastening drywall boards to metal substructures (up to 0.88 mm)
