X-ENP Metal deck nails

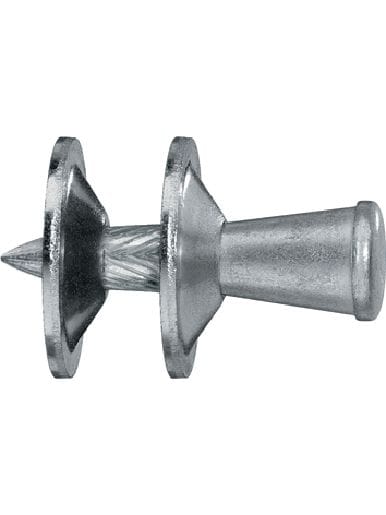

Sheet metal nail X-ENP-19 L15 #283506

Configurator
Technical Data
Documents
Features & Applications
Related Products
L054653.tif
DX 76
DX 76

Single nail for fastening metal decks to steel structures using the DX 76 powder-actuated nailer

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Galvanized zinc coated <20 µm
ultimate

Choose options

Fastener shank length
  • 19 mm
Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
365.00 ILS
3.65 ILS
/
1 each

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4.5 mm
Washer size
15 mm
Point type
Ballistic point
Approvals
ABS, ABS, ETA, ETA, FM, FM, IAPMO, IAPMO, ICC-ES, ICC-ES, ITB, LR, LR, MLIT, SDI, UL, UL
For use with (tools)
DX 76
Product Class
Ultimate

Documents

Technical information
Approval document
Operating Instruction
pdf X-ENP Data Sheet, English [ 676.9 KB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]
pdf Scheda tecnica X-ENP en, English [ 136.9 KB ]

Features & Applications

Features

  • A much faster and safer fastening system compared to welding
  • Fully knurled tip provides high holding capacity
  • High application limits – can be used on steel with a thickness of at least 6 mm (1/4&quot;)
  • Proven system and has several worldwide approvals for siding and decking
  • No predrilling required, even on thick steel

Applications

  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4&quot;) for composite decking
  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4&quot;) for roofing
  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4&quot;) for cladding
