X-U P8S Universal nails (with washer)

Configurator
Technical Data
Documents
Features & Applications
Related Products
13919.tif

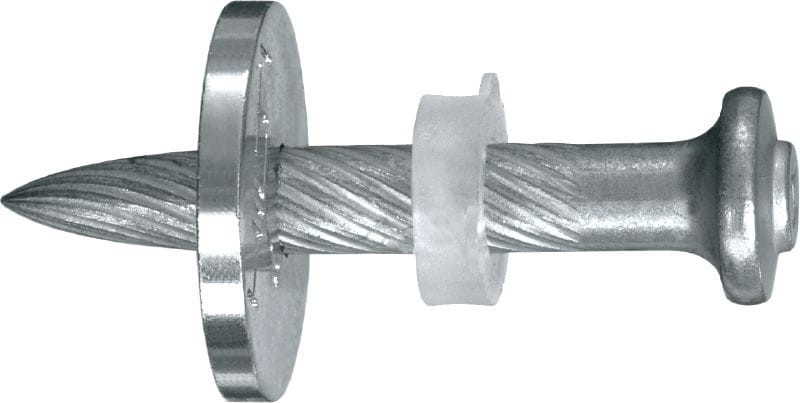

Single nail for fastening to concrete and steel using powder-actuated nailers

  • Base materials: Concrete (soft), Concrete (tough), Steel
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanized zinc coated <20 µm
premium

Customers also searched for single nail for concrete, concrete nail with washer, concrete fastener with washer, powder-actuated fastener or single fastener with washer.

Choose options

Fastener shank length
  • 27 mm
  • 32 mm
  • 52 mm
  • 72 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 466.00 ILS

Technical Data

Base materials
Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Point type
Ballistic point, knurled
Approvals
ABS, COLA, DIBt, IBMB, ICC-ES, LR
For use with (tools)
DX 2, DX 351, DX 5, DX 6
Product Class
Premium

Documents

Technical information
Approval document
Brochure
Sustainability Documentation
Operating Instruction
pdf X-U Data Sheet, English [ 1.3 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Galvanised nails for fastenings on concrete or steel
  • Higher application limits, higher ultimate tensile loads
  • With preassembled washer providing increased pull-over values
  • Knurled point for better performance on high-strength steel and hard concrete

Applications

  • Fastening on steel support frames S 355 (St 52) 6-12 mm
  • Fastening steel sheets on steel support frames or substructures S 355 (St 52) 6-8 mm
  • Fastening wood on S 355 (St 52) steel substructures with a thickness of 6 mm
  • Fastening timber or steel brackets to steel or concrete where high pull-over strength is required
  • Fastening wood to concrete (even high-strength concrete) or steel

For approval or certificate information, please see individual items.
