X-U MX Steel/concrete nails (collated)

13277.tif
Powder_actuated_tool_DX_5_MX,_Building_&_Conctruction,_Formstop
installing formwork spacer with powder-actuated tool DX 6 MX and X-C concrete nail
Powder actuated tool DX 5 MX, Building & Construction, kickerboard, wood to concrete
installing kicker board with powder-actuated tool DX 6 MX and X-CT formwork nail
Attaching wood to concrete with powder-actuated tool DX 6 MX and X-U universal nail or X-P concrete nail
DX_5_MX,_deflection_head,_track_fastening_to_ceiling,_interior_finishing,_X-U_concrete_nail

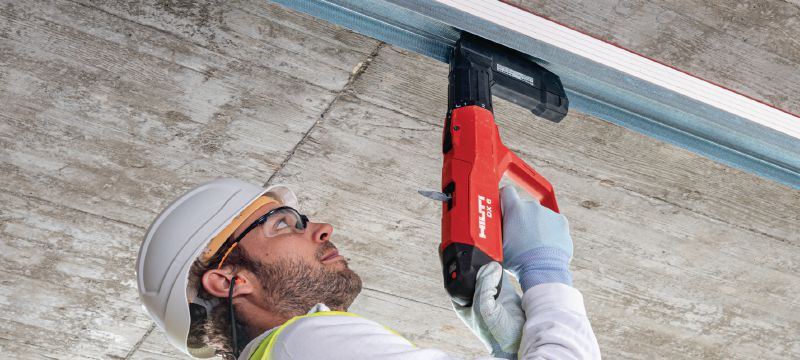

Installing deflection head with powder-actuated tool DX 6 MX
Powder_actuated_tool_DX_5_MX,_Interior_Finishig,_Drywall

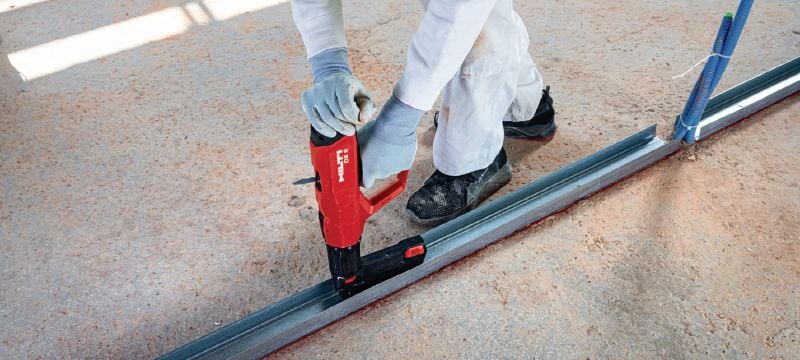

Installing drywall track with powder-actuated tool DX 6 MX and X-C MX.
Powder_actuated_tool_DX_5_MX,_Building_&_Construction,_wood_to_concrete

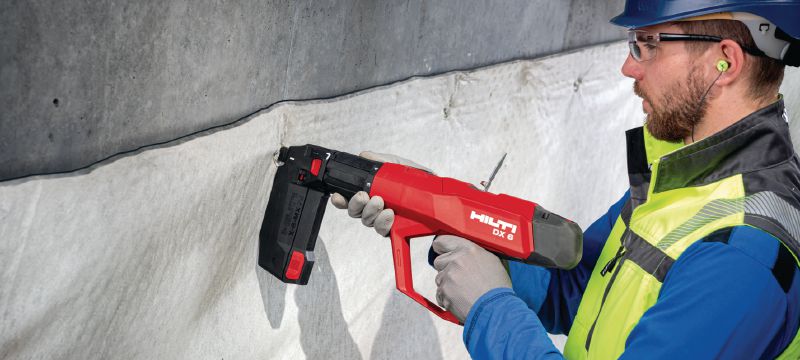

Application picture of DX 6 MX with 6.8/11 M10 cartridges, fastening bentonite membrane and X-SW soft washer

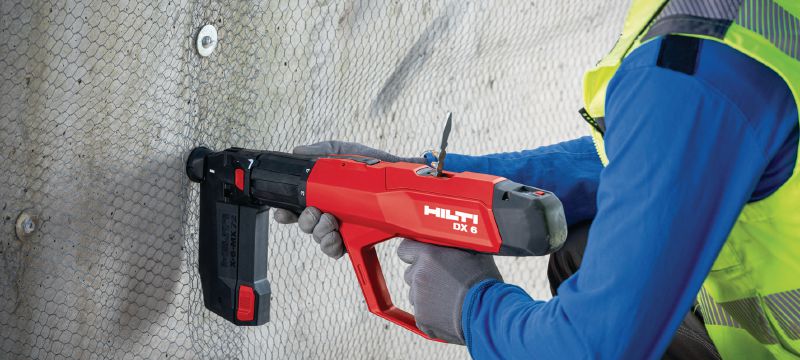

Application picture of DX 6 MX, 6.8/11 M10 with cartridges, fastening wire mesh, and steel washer

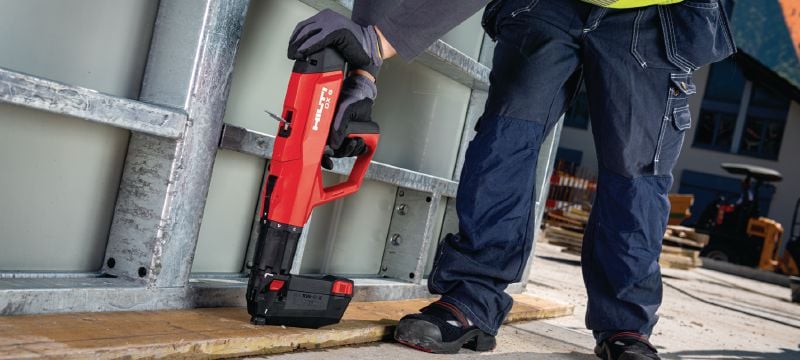

Installing wood to steel with powder-actuated tool DX 6 MX and X-U universal nail
13277.tif
Powder_actuated_tool_DX_5_MX,_Building_&_Conctruction,_Formstop
installing formwork spacer with powder-actuated tool DX 6 MX and X-C concrete nail
Powder actuated tool DX 5 MX, Building & Construction, kickerboard, wood to concrete
installing kicker board with powder-actuated tool DX 6 MX and X-CT formwork nail

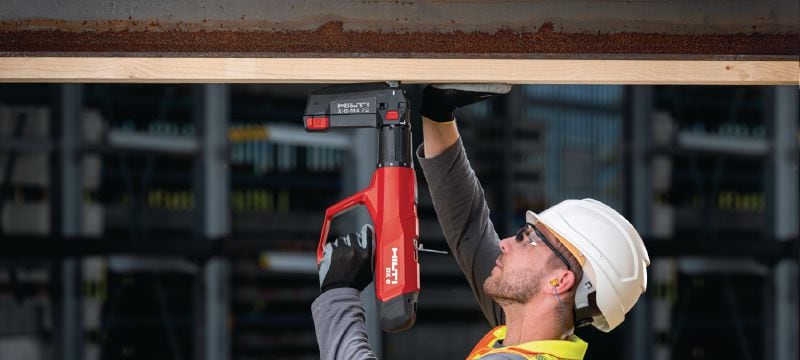

Attaching wood to concrete with powder-actuated tool DX 6 MX and X-U universal nail or X-P concrete nail
DX_5_MX,_deflection_head,_track_fastening_to_ceiling,_interior_finishing,_X-U_concrete_nail
Installing deflection head with powder-actuated tool DX 6 MX
Powder_actuated_tool_DX_5_MX,_Interior_Finishig,_Drywall
Installing drywall track with powder-actuated tool DX 6 MX and X-C MX.
Powder_actuated_tool_DX_5_MX,_Building_&_Construction,_wood_to_concrete
Application picture of DX 6 MX with 6.8/11 M10 cartridges, fastening bentonite membrane and X-SW soft washer
Application picture of DX 6 MX, 6.8/11 M10 with cartridges, fastening wire mesh, and steel washer
Installing wood to steel with powder-actuated tool DX 6 MX and X-U universal nail

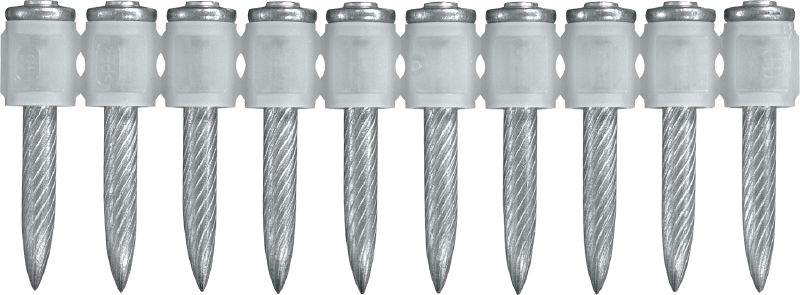

Ultimate-performance collated nails for fastening to concrete and steel using powder-actuated tools

  • Base materials: Concrete (soft), Concrete (tough), Steel
  • Minimum thickness of base material (concrete): 80 mm
  • Minimum thickness of base material (steel): 6 mm
premium

Choose options

Fastener shank length
  • 16 mm
  • 19 mm
  • 22 mm
  • 37 mm
  • 42 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 177.00 ILS

Technical Data

Base materials
Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Point type
Ballistic point, knurled
Approvals
COLA, DIBt, IBMB, ICC-ES, LR
For use with (tools)
DX 5, DX 6
Product Class
Premium

Documents

Features & Applications

Features

  • Galvanized nails for fastenings on concrete or steel
  • Higher application limits, higher ultimate tensile loads
  • Available in lengths up to 72 mm
  • Knurled point for increased performance on high-strength steel and hard concrete
  • Strips of 10 collated nails – for extremely high productivity and easier fastener loading

Applications

  • Fastening to concrete or steel
  • Fastening drywall track to concrete
  • Fastening wall ties
  • Fastening wood to concrete
  • Setting up formwork and safety barriers

For approval or certificate information, please see individual items.
