X-ENP HVB Shear connector nails

מסמר למחבר גזירה X-ENP-21-HVB #283512

Configurator
Technical Data
Documents
Features & Applications
Related Products

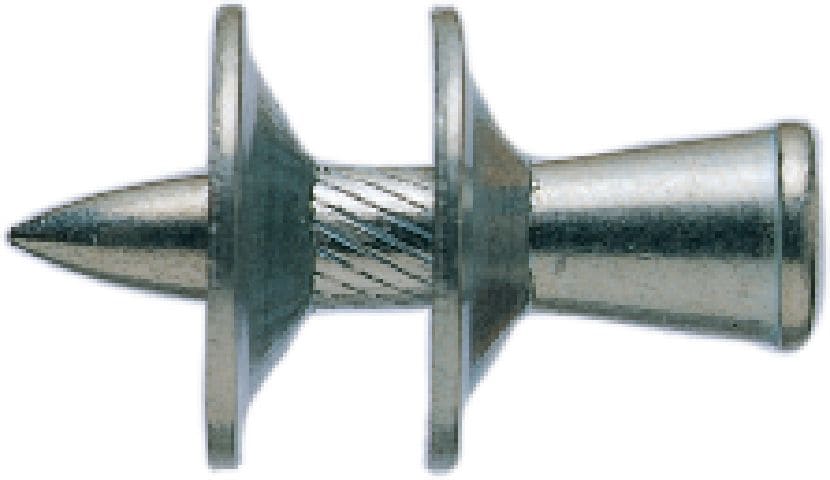

Nail for X-HVB shear connector, 6070.tif
X-HVB, DX 76 PTR

Single nail for fastening shear connectors to steel structures using the DX 76 powder-actuated nailer

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Galvanized zinc coated <20 µm
ultimate

Choose options

Fastener shank length
  • 21 mm
Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
528.00 ILS
5.28 ILS
/
1 each

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4.5 mm
Washer size
15 mm
Point type
Ballistic point
Approvals
ABS, ABS, ETA, ETA, FM, FM, IAPMO, ICC-ES, ICC-ES, ITB, LR, LR, MLIT, SDI, UL, UL
For use with (tools)
DX 860 ENP
Product Class
Ultimate

Documents

Approval document
Technical information
Brochure
Operating Instruction
pdf ETA-15/0876 for nail shear connector, German, English, French [ 8.4 MB ]

Features & Applications

Features

  • Economical alternative shear connector compared to stud welding – no expensive equipment required
  • Portable solution which can be moved around the jobsite easily without the need for pulling electric cables
  • Ideal for renovating old buildings where welding on existing cast-iron beams can be problematic
  • Hilti web-based software available to aid optimum design in meeting the load requirements
  • Increased productivity – quick setup and usable in all weather conditions

Applications

  • Fastening shear connectors to structural steel to resist shear forces and increase shear loading capacity in composite structures
