X-HVB Shear connector

X-HVB shear connector X-HVB Verbunddübel

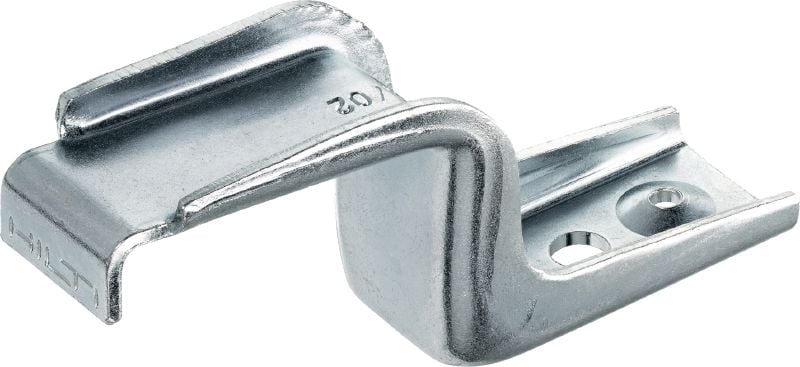

X-HVB_40,_Hilti_Shear_Connector_X-HVB_40_for_composite_floor,_Shear_connector_for_concrete-steel_composite_floor_construction
X-HVB_40,_Hilti_Shear_Connector_X-HVB_40_for_composite_floor,_Shear_connector_for_concrete-steel_composite_floor_construction

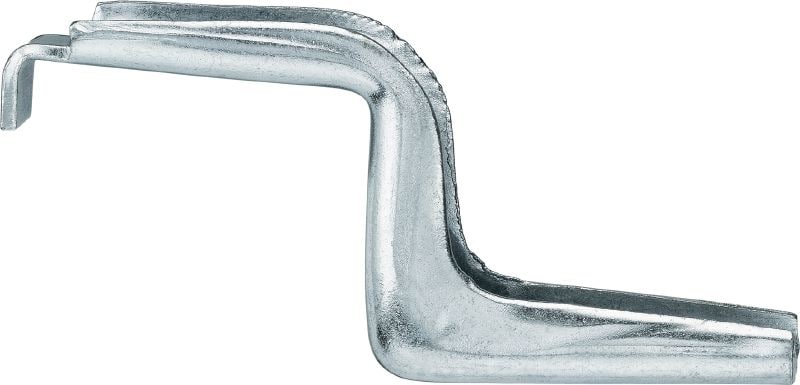

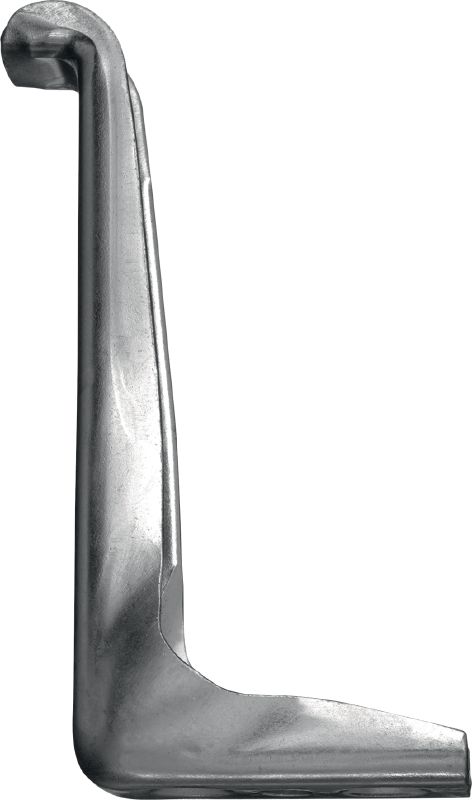

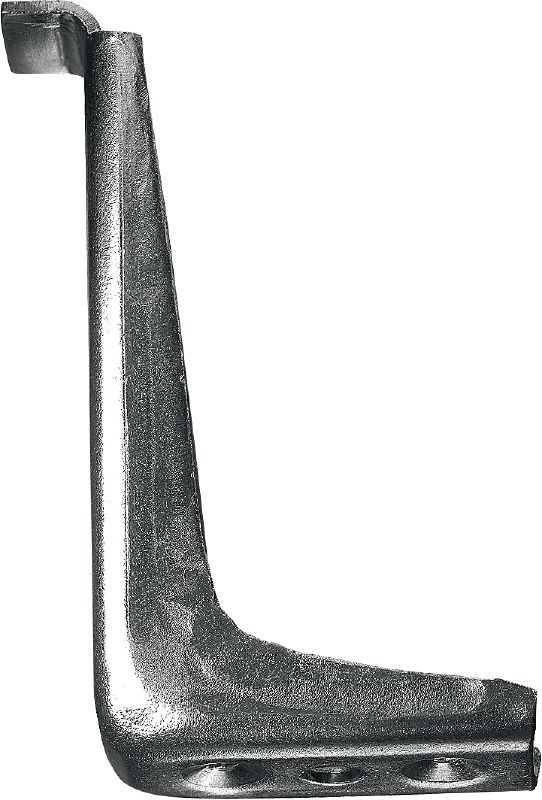

Shear connector X-HVB 110
X-HVB, DX 76 PTR

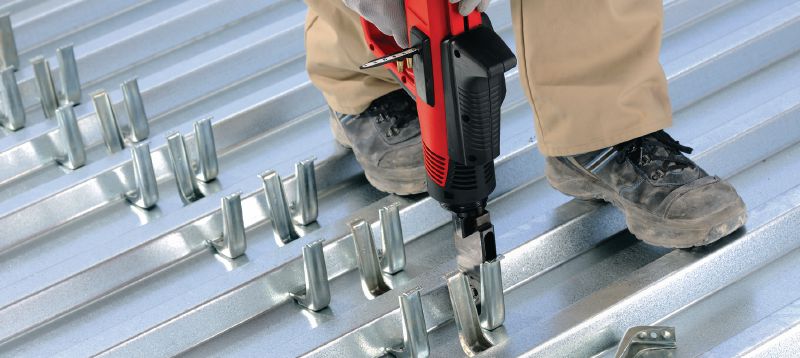

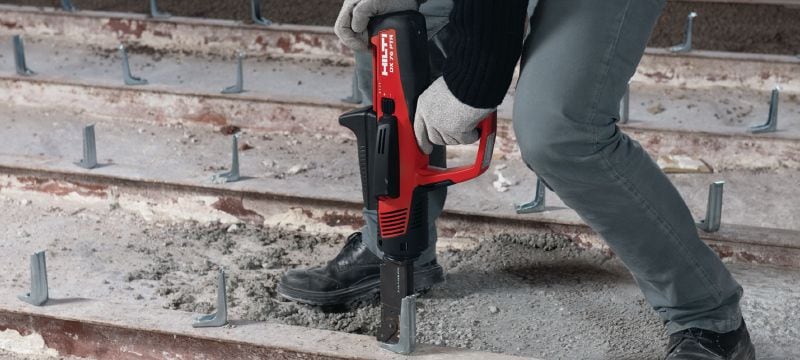

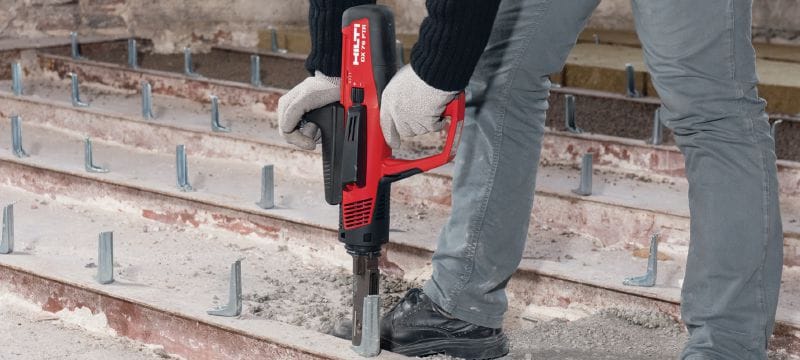

Fastening an X-HVB connector with a DX 76 PTR direct fastening tool
Fastening an X-HVB connector with a DX 76 PTR direct fastening tool
Fastening an X-HVB connector with a DX 76 PTR direct fastening tool
Fastening an X-HVB connector with a DX 76 PTR direct fastening tool

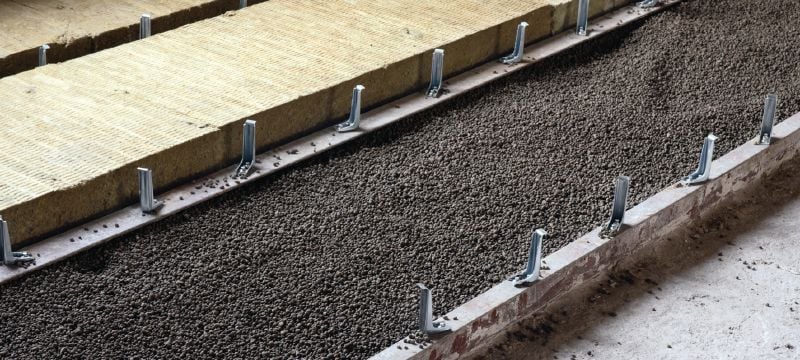

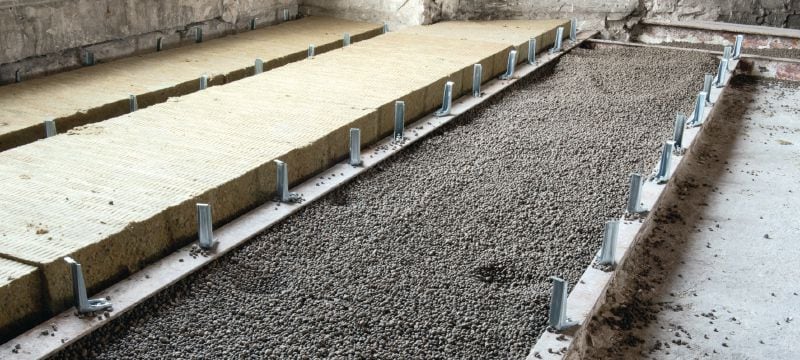

X-HVB connectors on a composite floor
X-HVB connectors on a composite floor

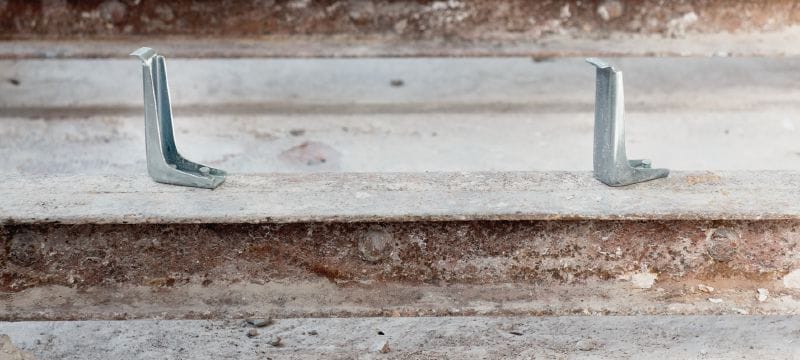

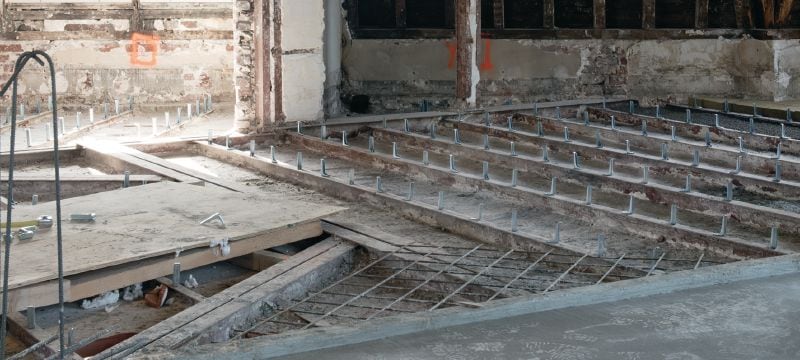

Rehabilitation jobsite with composite floor deck

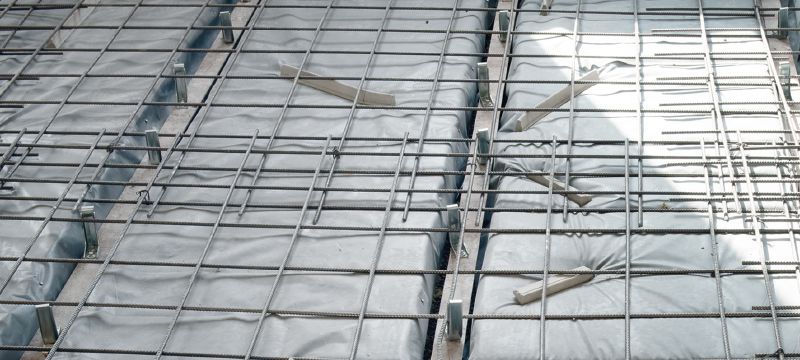

X-HVB connectors on a composite floor
X-HVB connectors on a composite floor

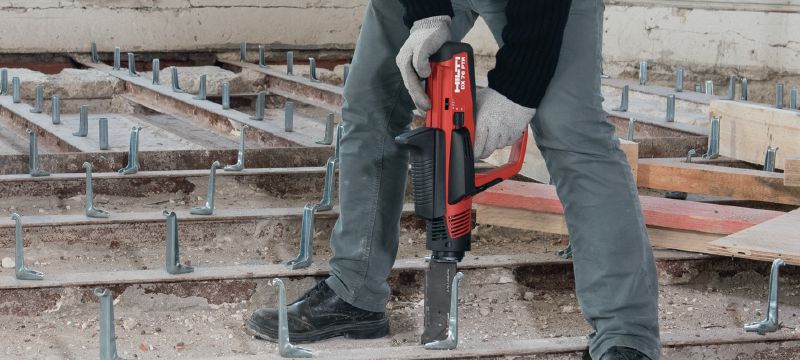

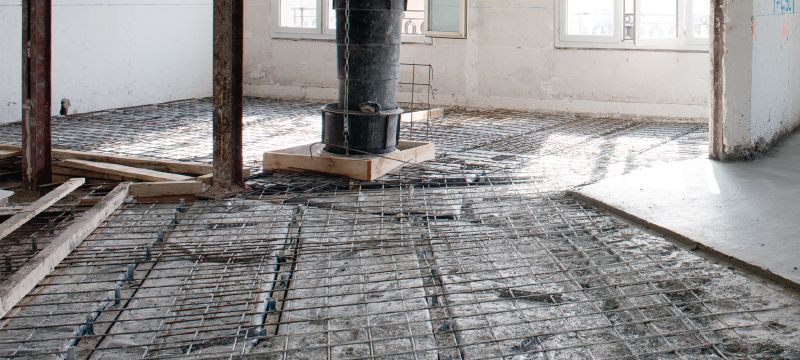

Rehabilitation jobsite with composite floor deck

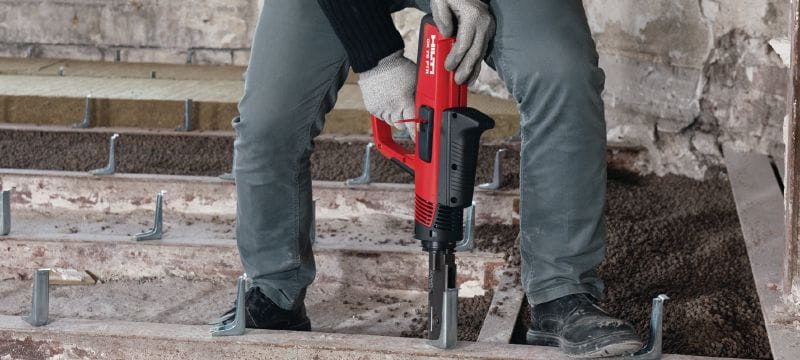

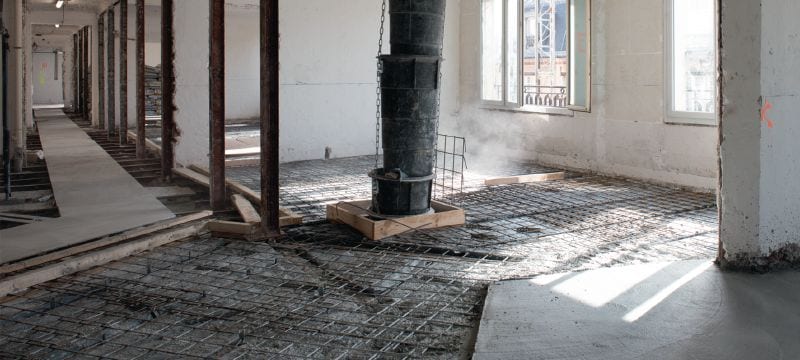

Rehabilitation jobsite with composite floor deck

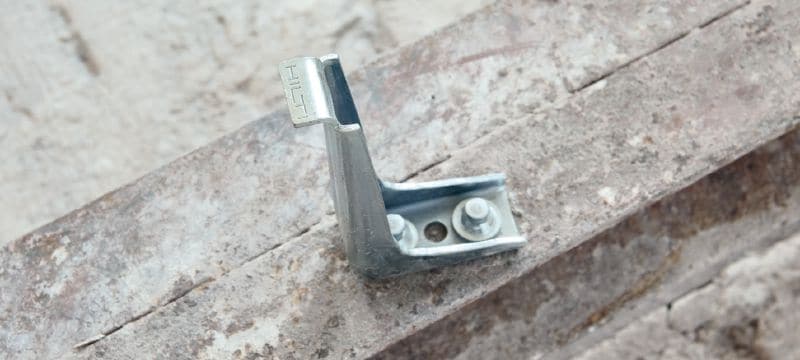

Rehabilitation jobsite with composite floor deck
X-HVB shear connector X-HVB Verbunddübel
X-HVB_40,_Hilti_Shear_Connector_X-HVB_40_for_composite_floor,_Shear_connector_for_concrete-steel_composite_floor_construction
X-HVB_40,_Hilti_Shear_Connector_X-HVB_40_for_composite_floor,_Shear_connector_for_concrete-steel_composite_floor_construction
Shear connector X-HVB 110
X-HVB, DX 76 PTR
Fastening an X-HVB connector with a DX 76 PTR direct fastening tool
Fastening an X-HVB connector with a DX 76 PTR direct fastening tool
Fastening an X-HVB connector with a DX 76 PTR direct fastening tool
Fastening an X-HVB connector with a DX 76 PTR direct fastening tool
X-HVB connectors on a composite floor
X-HVB connectors on a composite floor
Rehabilitation jobsite with composite floor deck
X-HVB connectors on a composite floor
X-HVB connectors on a composite floor
Rehabilitation jobsite with composite floor deck
Rehabilitation jobsite with composite floor deck
Rehabilitation jobsite with composite floor deck

Shear connector for composite beam constructions

  • Application: Metal deck
  • For use with (tools): DX 76
  • Corrosion protection: Galvanized zinc coated <20 µm
ultimate

Choose options

Height
  • 43 mm
  • 52 mm
  • 80 mm
  • 95 mm
  • 113 mm
  • 128 mm
  • 143 mm
Fastener shank length
  • 26 mm
Length
  • 60 mm
  • 63 mm
  • 88 mm
  • 99 mm
Pack size
  • 120 pc
  • 125 pc
  • 200 pc
  • 250 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 2,270.00 ILS

Technical Data

Application
Metal deck
For use with (tools)
DX 76
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Approvals
DIBt, SCI, Socotec, TZUS
Base materials
Steel
Product Class
Ultimate

Documents

Features & Applications

Features

  • Economical alternative to stud welding – no expensive equipment required
  • Portable solution which can be moved around the jobsite easily without the need for pulling electric cables
  • Ideal for renovating old buildings where welding on existing cast-iron beams can be problematic
  • Hilti web-based software available to aid optimum design in meeting the load requirements
  • Increased productivity – quick set-up and usable in all weather conditions

Applications

  • Holding concrete slabs to steel structures to resist shear forces and increase shear loading capacity in composite structures
  • Can be used on galvanised and painted beams

For approval or certificate information, please see individual items.
