X-ENP MX Metal deck nails

מסמר לפלדות כבדות בסרט X-ENP #283507

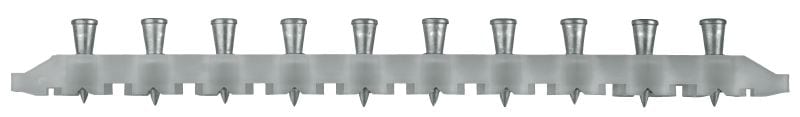

X-ENP MX strip of 10 nails for fastening of profile metal sheets on steel with DX 76 MX adapted
DX 76 PTR
DX 76 PTR

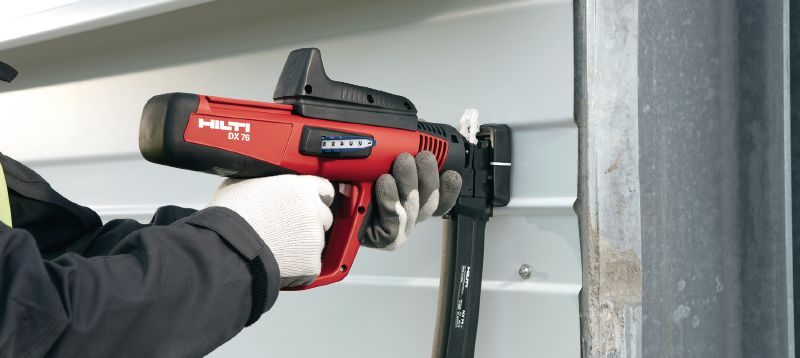

Collated nail for fastening metal decks to steel structures using the DX 8 and DX 76 (PTR) powder-actuated tools

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Galvanized zinc coated <20 µm
ultimate

Choose options

Fastener shank length
  • 19 mm
Pack size
  • 1000 pc
 Product options
Quantity
Pack
Total Pieces
1000
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
2,939.23 ILS
2.94 ILS
/
1 each

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4.5 mm
Washer size
15 mm
Point type
Ballistic point
Approvals
ABS, ABS, ETA, ETA, FM, FM, IAPMO, IAPMO, ICC-ES, ICC-ES, ITB, LR, LR, MLIT, SDI, UL, UL
For use with (tools)
DX 76
Product Class
Ultimate

Documents

pdf X-ENP Data Sheet, English, German, French, Italian, Polish, Spanish [ 598.7 KB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Significantly faster and safer fastening system compared to welding
  • Fully knurled tip provides high strength capacity, shear and tension
  • Proven system with several worldwide approvals for siding and decking
  • No pre-drilling required for any approved steel base material regardless of profile thickness and grade
  • Significantly faster fastening system compared to single screws, particularly in thicker base materials

Applications

  • Fastening composite metal decks to steel structures for composite floor decking
  • Fastening metal roof decks to steel structures for roofing
  • Fastening liner trays to steel structures for siding
  • Fastening metal brackets to steel structures
