HSL-3-GR Heavy-duty wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products

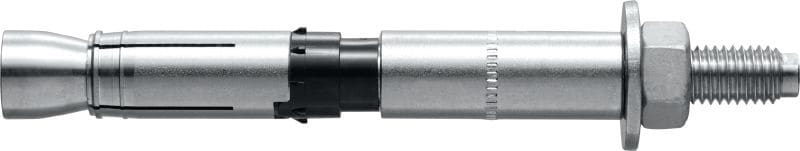

HSL-3 stainless A4 with theaded head finish

Ultimate-performance removable heavy-duty wedge anchor with approvals for fire, seismic and cracked concrete (A4 stainless steel, extended thread)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Externally threaded
  • Approvals / Test reports: ETA, Fire, Seismic

Choose options

Anchor size - D
  • M12
  • M16
Anchor length - L
  • 157 mm
  • 181 mm
  • 256 mm
Pack size
  • 10 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 2,250.00 ILS

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / Test reports
ETA, Fire, Seismic
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS Software
Yes

Documents

Approval document
Test Report
Brochure
Operating Instruction
pdf ETA 02/0042 for HSL-3 heavy-duty expansion anchor, English, German, French, Polish [ 6 MB ]
pdf ICC ESR-1545 for HSL-3 Heavy Duty Expansion Anchors, English [ 1.8 MB ]

Features & Applications

Features

  • Combining high tension and shear load resistance along with an easy and reliable installation, HSL-3 are a safe and cost efficient alternative to classical fastening solution such as studs or chemical anchors
  • The classic threaded rod and nut ensures that the fixture can be easily removed without damaging the fastening point
  • Excels in cracked concrete from C20/25 to C50/60
  • Extreme shear load resistance thanks to high strength sleeve
  • Collapsing element prevents anchor from spinning in the hole and ensures reliable clamping of the fixture

Applications

  • Structural steel
  • Safety-critical steel elements
  • Curtain walls
  • Pipe supports
  • Industrial equipments

For approval or certificate information, please see individual items.
