GRS Scaffold tie ringbolt

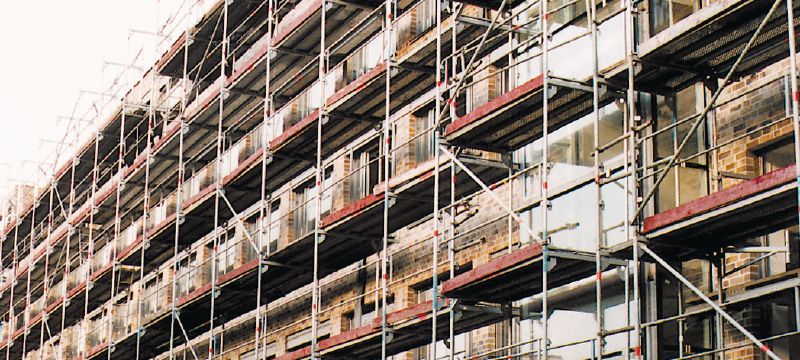

Scaffolding restraint anchor with eyelet for fastening lighter scaffolds to concrete
- Base materials: Concrete (non-cracked), Masonry (solid)
- Head configuration: Closed eyebolt
- Approvals / Test reports: N/A
Choose options
Anchor size - D
- 12 mm
Anchor length - L
- 90 mm
- 120 mm
- 160 mm
- 190 mm
- 350 mm
Pack size
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 280.25 ILS
Technical Data
Base materials
Concrete (non-cracked), Masonry (solid)
Head configuration
Closed eyebolt
Approvals / Test reports
N/A
Material, corrosion
Carbon steel, zinc-plated
Documents
Features & Applications
Features
- Economical solution for stabilizing scaffolds according to DIN 4420
- Easier to set correctly – setting depth mark on the scaffold screw helps you avoid installation errors

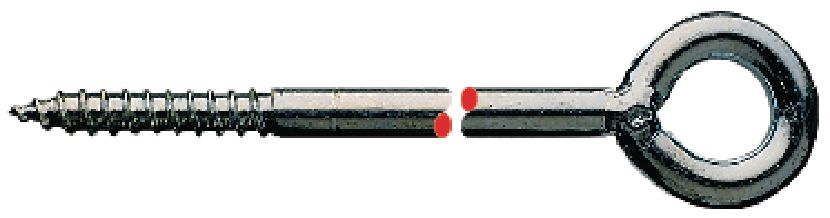

- Scaffold eyebolt optimized for use with hooks – inner diameter of eye 23 mm + 2 mm
- Standard thread – scaffold eyebolt with wood screw thread similar to DIN 7998
Applications

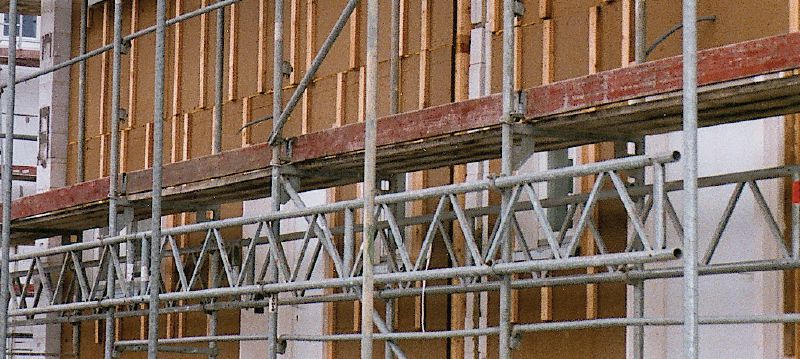

- Fastening lighter scaffolding to concrete (plastic wall plugs required, sold separately)
For approval or certificate information, please see individual items.
Related Products
Economical plastic wall plug for scaffolding restraints using Hilti GRS scaffold eyebolts
